CCTV Camera Lens M1620-MPW2

Large Image : CCTV Camera Lens M1620-MPW2

Product Details:

Place of Origin:	Japan
Brand Name:	Computar
Model Number:	M1620-MPW2

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	300pcs / month

Detailed Product Description

Focal Length:	16 Mm	Aperture Ratio:	1:2.0 (maximum)
Image Format:	Up To 8.8 X 6.6 Mm (Ø 11 Mm)	Control:	Iris / Focus: Manual
Angle Of View:	2/3" Type: 37.7° (D), 30.7° (H), 23.3° (V)	Mount:	C-Mount
Dimensions:	1.14 X 1.32 " (Ø 29 X 33.53 Mm)	Weight:	1.86 Oz (53 G)

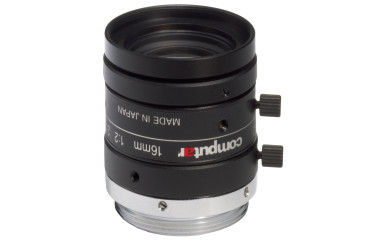

Computar CCTV Camera Lens M1620-MPW2 2 / 3 " 16mm F2.0 5Megapixel Ultra Low Distortion Lens

Description:

The computar M1620-MPW2 2/3" 16mm 5 MP Ultra Low Distortion Lens (C-Mount) is designed to provide excellent performance in close-up applications required for factory automation and image processing areas.

Low distortion

Higher relative illumination rate

Floating design

Locking set screws for focus and iris

Application:

For monitoring at a close proximity in factory automation or image processing applications

Specification:

Focal Length	16 mm
Aperture Ratio	1:2.0 (maximum)
Image Format	Up to 8.8 x 6.6 mm (Ø 11 mm)
Operation Range	Iris: F2.0 to F16.0 Focus: 0.65' to infinity (0.2 m to infinity)
Control	Iris / Focus: Manual
Angle of View	2/3" Type: 37.7° (D), 30.7° (H), 23.3° (V)
Operating Temperature	14 to 122°F (-10 to 50°C )
Effective Lens Aperture	Front: Ø 18 mm Rear: Ø 11 mm
Distortion	2/3" Type: 0.09% (y = 5.5)
Back Focal Length	14.7 mm
Flange Back Length	17.53 mm
Mount	C
Filter Size	M27.0 P = 0.5 mm
Object Dimensions at M.O.D.	2/3" Type: 3.46 x 46.22" (88 x 1174 mm)
Dimensions	1.14 x 1.32 " (Ø 29 x 33.53 mm)
Weight	1.86 oz (53 g)

Package:

* Package Weight 0.15 lb
* Box Dimensions (LxWxH) 2.8 x 2.1 x 1.8"
