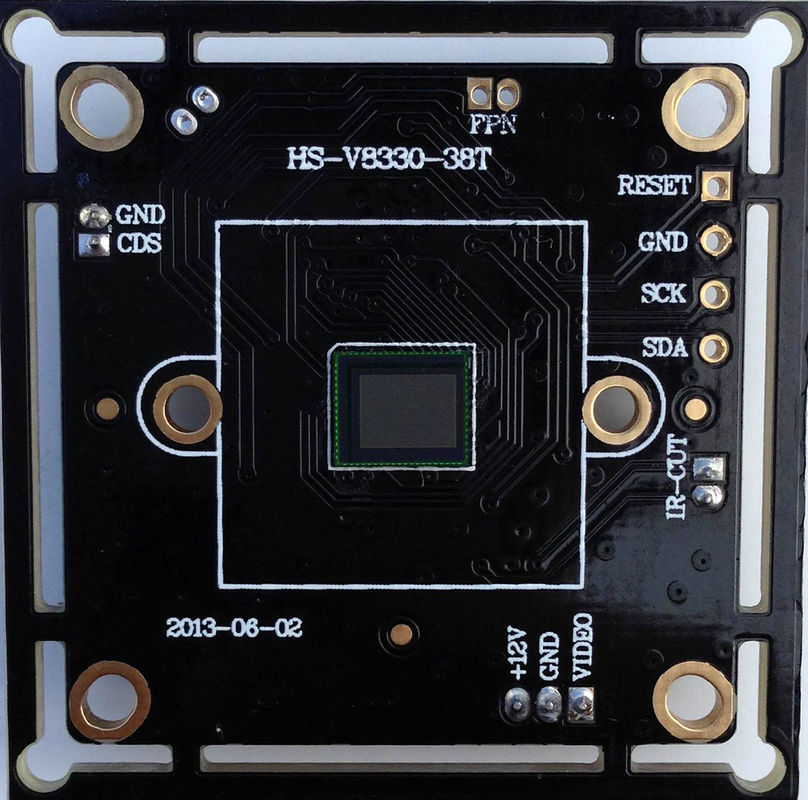

800TVL CCTV Camera Board IR-CUT

Large Image : 800TVL CCTV Camera Board IR-CUT

Product Details:

Place of Origin:	China
Model Number:	8330+8510

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	10000pcs/month

Detailed Product Description

Model:	8330+8510	Sensor:	1/3.5” SONY CMOS
External Dimensions:	38×38×9mm	Illumination:	0.01 LUX / F1.2
Resolution:	800TVL	Gama:	0.45

1 / 3.5 ” SONY CMOS 800TVL 0.01 LUX / F1.2 Color CCTV Camera Board IR-CUT

Features:

* 1/3.5” color CCTV board camera
* Model No. : 8330+8510
* Color CCTV board camera
* Excellent performance, clear and bright picture
* Size(L×W×H):38×38×9mm

* With IR cut to be true day and night

Specification:

Sensor	1/3.5 V8330+FH8510 CMOS
System	PAL	NTSC
Effective pixel	PAL:720(H)×576(V)	NTSC:720(H)×480(V)
illumination	0.01 LUX / F1.2
Resolution	800TVL
Scanning Frequency	50Hz 60Hz
Gama	0.45
Electronic Shutter	1/50～1/100000s	1/60～1/100000s
S/N	>46dB
Video Output	1.0V p-p
Operation Humidity	-20 º C to 50 º C
Working Humidity	Relative humidity less than 95%
Power Consumption	DC12V (±10%)
