Detailed Product Description
| Wireless Receiving: |
24 CHS |
AV-IN AV Out: |
Support |
| ScreenRange: |
HD 5-inch LCD |
Resolution: |
800x480 |
| Storage: |
Support TF 1-32GB |
Power Supply: |
Li-battery 3200Mah |

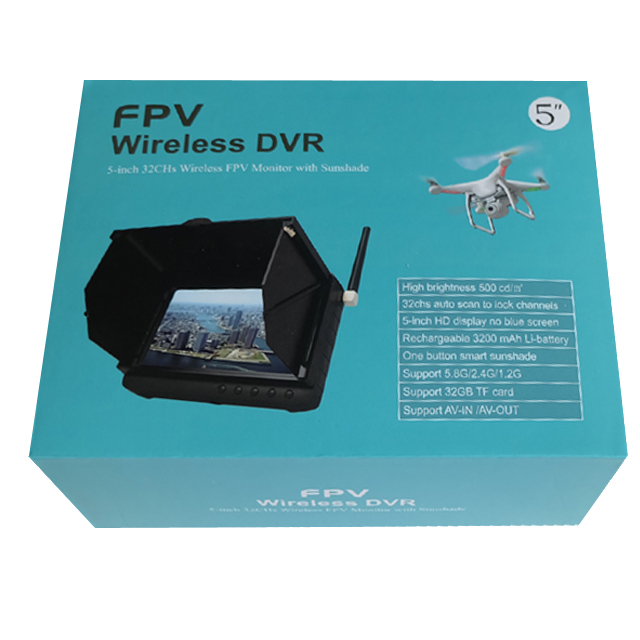

5.8GHz 32CHS Wireless Network Video Recorder Nvr With Sun Shield
Feature:
* 5" HD snow Remote control style FPV monitor, no screen,track your plane anytime,don't need to worry about lossing trace for blue screen;
* 32CHS 5.8GHz wireless receiver ,one monitor for multiple plane with different frequency;
* Press one button , then it begin to scan and lock channels Automically, so easy.
* Support 32GB SD card storage wireless fpv dvr- RC plane black box:record all details and amazing video moment.
* Professinal sunshade +3200mAh battery, 10hous working time ,enjoy your outdoor pleasure flying time.
* Unique outward, simple but Practical, the best 5" portable FPV receiver monitor and dvr all in one.
* Black fpv monitor or white one for optional, perfect match with dji,fatshark remote controller.
Application:
It supports both wireless and wired cameras. Frequency can be 1.2Ghz, 2.4Ghz, 5.8Ghz. Not only this, it adds new function of photo, loop recording, power saving (auto shutdown, auto off-screen), etc. This DVR is the ideal choice for security & protection, evidence & investigation, like police, household, sports, automotive industry, shops, etc...At the same time, with its stylish and high-end appearance, it also becomes the fashion choice of leisure goods.
Specifications :
| Receiver |
5.8Ghz 32CHS
-92dB |
A1: 5.740GHz; A2: 5.760GHz; A3: 5.780GHz; A4: 5.800GHz
A5: 5.820GHz; A6: 5.840GHz; A7: 5.860GHz; A8: SPI
B1: 5.725GHz; B2: 5.745GHz; B3: 5.765GHz; B4: 5.785GHz
B5: 5.805GHz; B6: 5.825GHz; B7: 5.845GHz; B8: 5.865GHz
C1: 5.733GHz; C2: 5.752GHz; C3: 5.771GHz; C4: 5.790GHz
C5: 5.809GHz; C6: 5.828GHz; C7: 5.847GHz; C8: 5.866GHz
D1: 5.705GHz; D2: 5.685GHz; D3: 5.665GHz; D4: 5.645GHz
D5: 5.885GHz; D6: 5.905GHz; D7: 5.925GHz; D8: 5.945GHz |
| Antenna |
RF-SMA 4 Blade |
| Displayer |
Screen size |
5 inch LCD screen |
| Resolution |
800 X 480 Pixel |
| Contrast |
500:01:00 |
| Brightness |
350 cd/M2 |
| Recorder |
Storage |
TF card 1GB-32GB(optional) |
| Video compress |
MPEG-AVI 30fps |
| Language |
Multiple |
| AV IN |
TV system |
NTSC / PAL (for wired camera) |
| AV-OUT |
Output voltage |
3.6-4.2 V |
| Audio |
Frequency |
20HZ-20KHz stereo |
| Earphone Output |
Left:20MW + right 20mW[16O](suit to largest volume) |
| Speaker |
1W |
| HD 5-inch LCD Screen |
Active area |
108mm(W) x 64.8mm(H) |
| Resolution |
800 x 480 Pixel |
| Luminance for LCM |
200cd/M2 |
| Video |
Resolution |
720*576/720*480 |
| Video compress |
MPEG-AVI 30fps |
| Play format |
MPEG-AVI |
| Photo |
Format |
JPG/JPEG |
| Storage |
External SD card |
TF card 1GB-32GB (optional) |
| 32GB recording time |
10-32 hours |
| 1GB photos |
15625pcs |
| Operating system |
PC |
Windows & Mac OS |
| Port |
USB 2.0 |
| Language |
Multiple |
| Power |
Votage |
DC 5V |
| Current(receiving mode) |
600MA |
| Current(recording mode) |
680MA |
| Current( recording with off-screen mode) |
340MA |
| AC adapter |
DC 5V 2A |
| Built-in battery |
Li-battery 3200Mah |
| Standby time |
Wireless record |
≥9.5 hours(off-screen); |
| Wired record |
≥12 hours(off-screen); |
| Sunshade |
one button open |
Patend LCD hood |
| Size(LxWxH) |
Without sunshade |
131 x 90.5 x 18mm |
| With sunshade |
131 x 90.5 x 28mm |
| Weight |
Without sunshade |
215G |
| with sunshade |
260G |
Package:
* DVR x 1pcs ;
* usb cable x 1pcs ;
* AC adapter x 1pcs ;
* AV-OUT cable x 1pcs ;
* AV-IN cable x 1pcs ;
