Detailed Product Description
| Brand: |
Sony |
Modle: |
FCB-EH3150 |
| Image Device: |
1/4-type Exmor CMOS Sensor |
Effective Pixels: |
Approximately 1.43m |
FCB - EH3150 Webcam HD Camera Module 10x Block IP Camera Module
RYFUTONE Co.,LTD

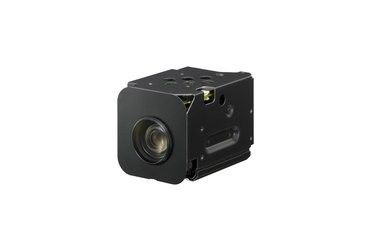

SONY FCB-EH3150 Camera
The SONY FCB-EH3150 is the latest addition to Sony's lineup of HD block cameras. Featuring 1/4-type Exmor CMOS sensor and a wide variety of features such as Wide-D, Auto-ICR, Provacy Zone Masking and Motion Detection, as well as an affordable price, this camera is sure to appeal to a wide variety of applications.
SONY FCB-EH3150 HIGHLIGHTS:
* 1280 x 720p High Definition Resolution
* Digital Output (Y/Cb/Cr 4:2:2)
* Temperature Readout
* Color Enhancement
* Auto Wide-D Mode
* Auto ICR
* Digital Noise Reduction
* Privacy Zone Masking
* Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement
SONY FCB-EH3150 SPECIFICATIONS
CAMERA SPECIFICATIONS
* Image Device: 1/4-type Exmor CMOS Sensor
* Effective Pixels: Approximately 1.43m
* Digital Zoom: 12 x (144x with optical zoom)
* Horizontal Viewing Angle: 53.4 (wide end) to 4.6 (tele end)
* Sync System: Internal
* Electronic Shutter: 1/1 to 1/10,000 s, total 22 steps
* White Balance: Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual
* Gain: Auto/Manual/Max. Gain Limit (-3 to +28 dB, +2 dB step/total 16 steps)
* Wide Dynamic Range: Yes (30 fps)
* Privacy Zone Masking: Yes
* Character Generator: Yes (20 characters/line, max. 11 lines)
* Focus System: Auto (sensitivity: normal, low), One-push AF, Manual Infinity, Interval AF, Zoom Trigger AF, Focus Compensation in ICR On
* Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement
VIDEO OUTPUT SPECIFICATIONS
* Lens Value: 12x Optical Zoom, f=3.7 mm (wide) to 44.4 mm (tele), F1.6 to F2.5
* S/N Ratio: More than 50 dB
* Minimum Illumination: Less than 1.0 lx (F1.6, 50 IRE)
Video Output
* HD: Analog: Component (Y/Pb/Pr)
* HD: Digital: Y/Cb/Cr 4:2:2 via LVDS
* SD: VBS
* Signal System
* HD: 720p/59.94, 720p/50, 720p/29.97, 720p/25
* SD: NTSC, PAL
INTERFACE SPECIFICATIONS
* Camera Control Interface: VISCA protocol (TTL signal level)
GENERAL SPECIFICATIONS
* Dimensions (W x H x D): 44.8 x 46.9 x 71.8 mm
* Weight: Less than 150 g
* Operating Temperature: -5 to 60 degrees
* Storage Temperature: -20 to 60 degrees
* Power Consumption: 3.4 W (motors active), 2.7W (motors inactive)
