Detailed Product Description
| High Definition: |
520TVL |
Type: |
Video Camera |
| Sensor: |
CMOS |
Technology: |
Mini Pinhole Camera |
| Receiving Distance: |
100M |
Support SD Card: |
Yes |

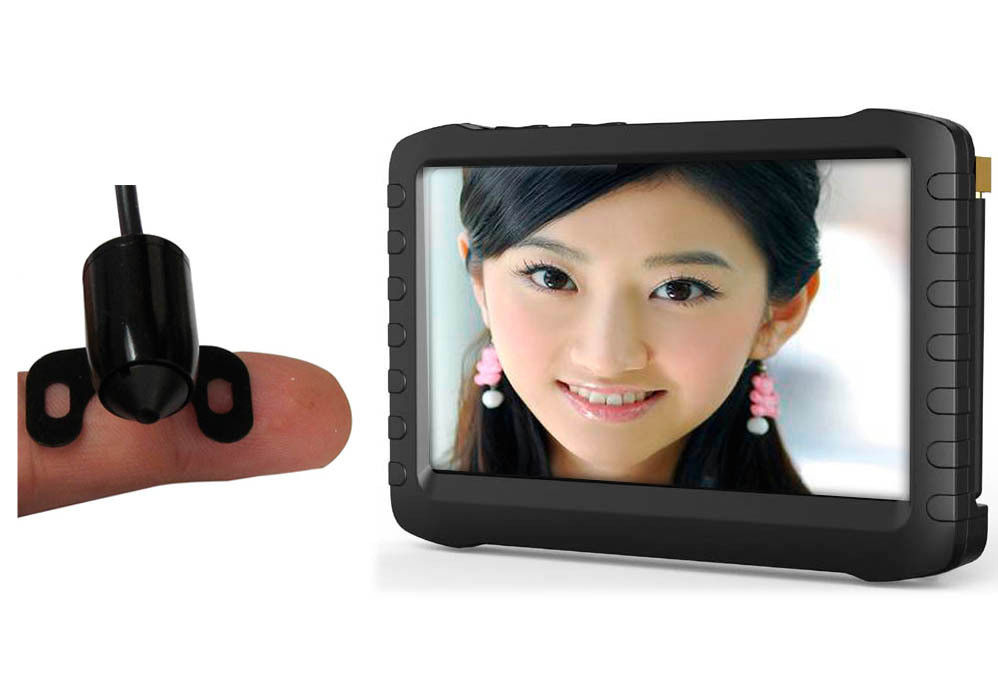

USB 0.008Lux 520TVL Mini Hidden Camera And 2.4GHz 5inch Wireless DVR Monitor Receiver
Usage:
Plug and play !
Just plug it to USB port of AC adapter,computer,camera starts to work. And at the same time, you can use any 2.4GHz wireless receivers (like web video server, wireless DVR/ AV receiver/ USB receiver) to receive and record real time video and audio.8 channels available for your choice.
Competitive advantage :
No need any cable installation, just plug and play;
2.4GHz no-interference frequency, 100m wireless range;
5-inch large screen DVR playback Video instantly without connecting to computer;
Support SD Card(up to 32G) recording for any evidence needed.'
Application:
Use for Home and Business Security, Shops, Pubs and Restaurants, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
2.4GHz Mini Camera Main Features:

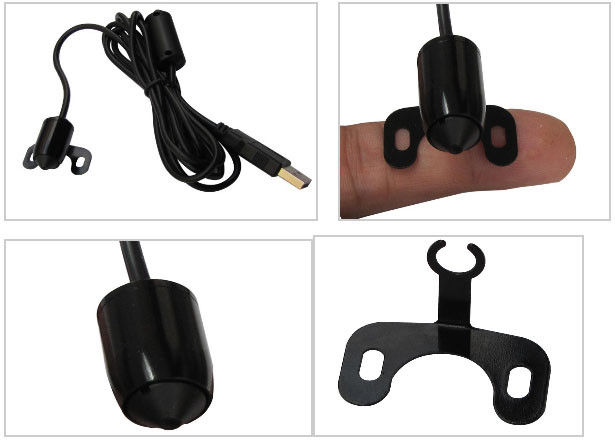

1. Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
2. Wireless transmission,not limited by cable.Very convenient to put it anywhere.Just plug & play.
3. High resolution(786X576pix;520TVL), high sensitivity, high SNR;
4. Day & night dual mode auto switch and continuous working;Low Illumination(0.008lux), high quality video record function;
5. Wide view angle(90 degree);
6. Strong output power brings long transmission range up to 150m(L.O.S.)
7. Convenient power supply and continuous working.
8.Encrypted frequency(2.3G) available to avoid interference from Wifi equipments,WLAN network, bluetooth equipments;and other general 2.4GHz equipments can't receive your signal,protect privacy well.
2.4GHz Mini Camera Specification:
| Frequency | 2.4G | 2414Mhz(CH1) 2432MHz(CH2) 2450MHz(CH3) 2468MHz(CH4) | Working channel:1 of 8 |
| 2.3G | 2370Mhz(CH1) 2390MHz(CH2) 2490MHz(CH3) 2510MHz(CH4) |
| Audio Subcarrier Frequency | 6.0Mhz |
| Antenna | 2.4GHz built-in antenna |
| RF Output Power | 100mW |
| Transmission Range | 150 meters |
| Total Pixels | NTSC:656(H)×492(V) | PAL:786(H)×576(V) |
| Horizontal Resolution | 520TV Lines |
| Minimum Illumination | 0.008Lux/F1.2 |
| Lens & View angle | 90 ° |
| S/N Ratio | ﹥48dB |
| Size (L) | 1.8m {lens size (L x D):27mm X 15mm } |
| Net Weight(g) | 50g |
| Current | 160mA |
| Voltage | DC 5V |
| Operation Temperature | - 20°C ~ + 50°C ,Relative Humidity:85﹪ |

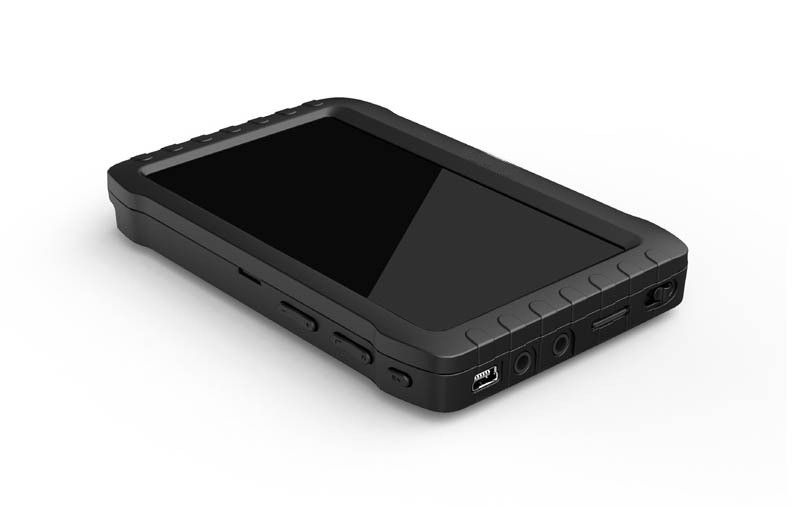

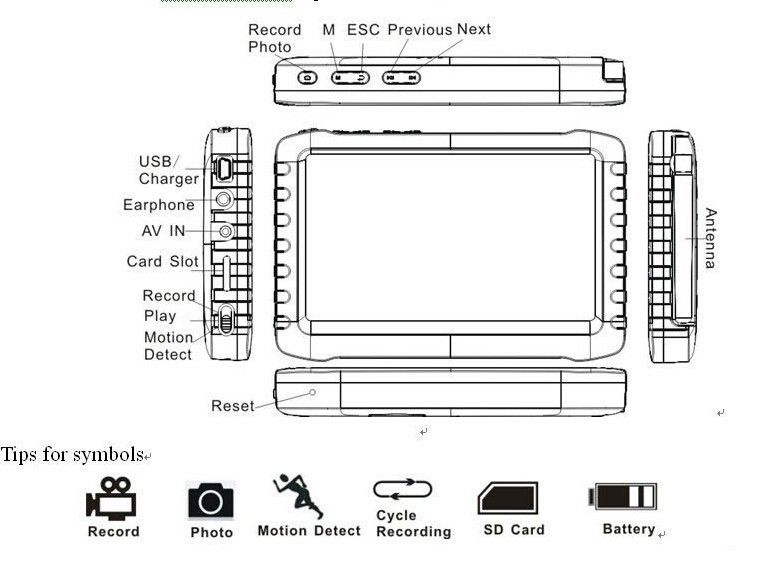

HD 2.4GHz wireless DVR Feature :

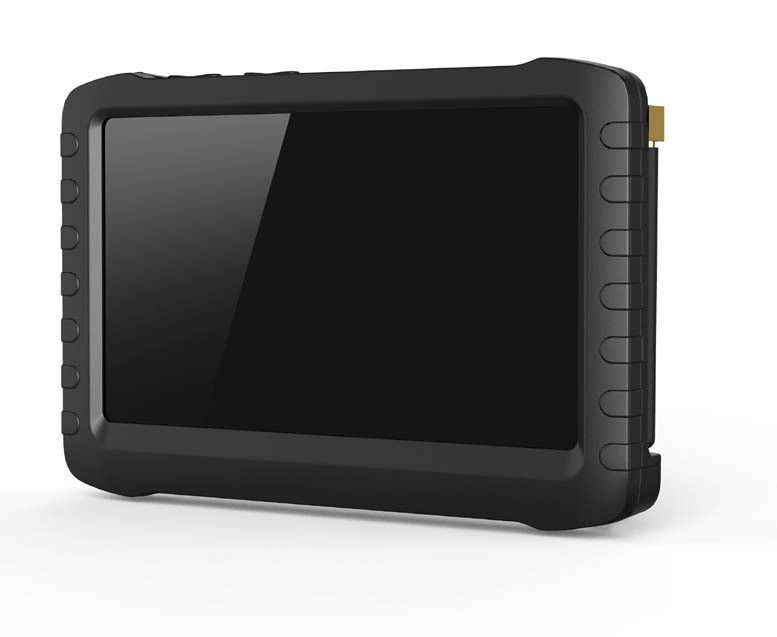

* 5-inch super large HD screen (800X480pix), which provides clear and smooth image,mini size and portable recorder with fashionable & new design;
* Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
* Supports storage up to 32G TF card, which records up to 32 hours;
* Supports 2.4GHz & 5.8GHz wireless frequency;
* 8 channels auto/manual switch;
* Folding hidden external antenna assures excellent wireless receiving;
* Supports AV IN function: receiving signal from wired cameras;
* Photo function: it can take, review & store pictures;
* Supports intelligent motion detect video recording;
* Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
* Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
* Support power-saving mode: automatic shutdown, automatic off-screen;

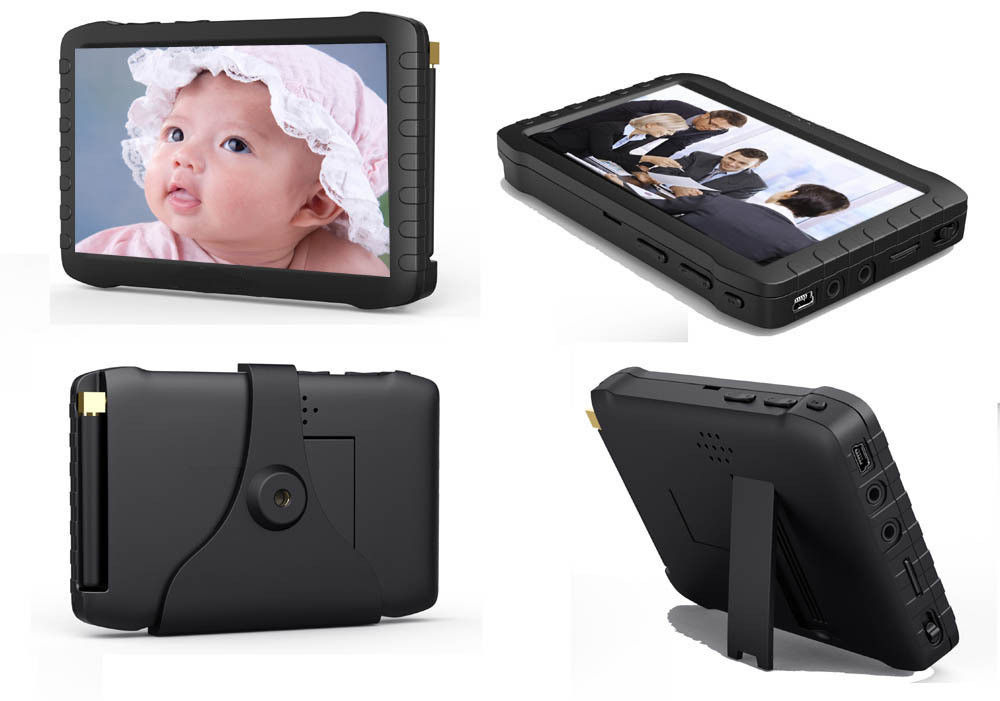

* Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
* It's of high compatibility, which supports almost all computer operating system, including MAC;
* Supports multi-language.
HD 2.4GHz wireless DVR Specification :
| Items | Value |
| Wireless Receiving | 2.4GHz –8 channels | CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. |
| | CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz |
| | |
| | |
| | | |
| | |
| | Sensitivity | -92dB |
| | Receiving distance | 100 meters |
| AV IN | TV system | NTSC / PAL |
| Output voltage | 3.6-4.2 V |
| HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
| Resolution | 800 X 480 Pixel |
| Luminance for LCM | 200 cd/㎡ |
| Cape clear 5-inch LCD screen | Active area | 118mm(W) X 62.8mm(H) |
| Resolution | 480 X 272 Pixel |
| Luminance for LCM | 300cd/㎡ |
| Video | Resolution | 720*576 / 640*480 |
| Video compress | MPEG-AVI 30fps |
| Play format | MPEG-AVI |
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) |
| Speaker | 1W |
| Photo | Format | JPG/JPEG |
| Storage | External SD card | TF card 1GB-32GB(optional) |
| 32GB recording time | 10-32 hours |
| 1GB photos | 15625pcs |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 |
| Language | Multiple |
| Power | Voltage | DC 5V |
| Current(receiving mode) | 660MA |
| Current( recording mode) | 680MA |
| Current(recording with off-screen mode) | 340MA |
| AC adapter | DC 5V 2A |
| Built-in battery | Li-battery 3200mAh |
| Standby time | Wireless record | ≥9.5 hours(off-screen); ≥5hours(on-screen) |
| Wired record | ≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included. |
| Size (L x W x H) | 131mm x 86mm x 18mm |
| Weight(g) | 205g |

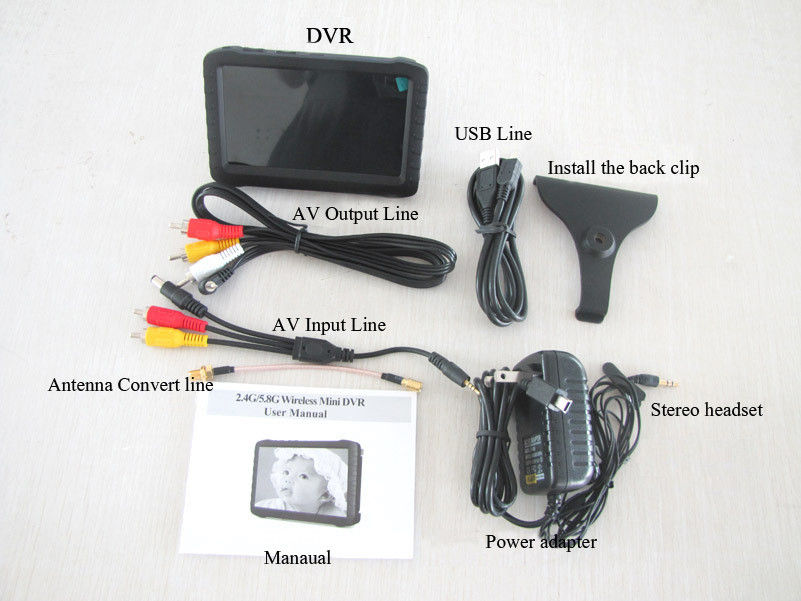

Package:
1 * Wireless DVR
1 * Mini Camera
1 * Power adapter
1 * USB line
1 * Install back clip
1 * specification
