Detailed Product Description
| Camera Sensor: |
Single Chip 1/4CMOS |
HORIZONTAL RESOLUTIONRANGE: |
520TVL |
| SENSITIVITY: |
0.1Lux/F2.8 |
LENS & VIEW ANGLE: |
F2.8/ 90° |
| TV System: |
NTSC, PAL |
WEIGHT: |
6G |

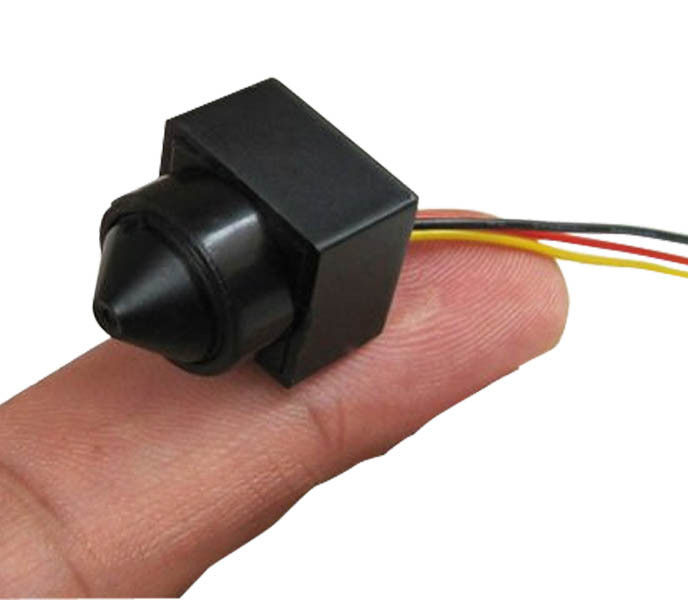

Pinhole Mini SPY CCTV 480TVL CMOS with 90deg view Lens Video and Audio Camera
Main Features :
* 90 degree wide view angle pinhole lens,.6-24v wide voltage;
* Small Size: easy to install into narrow room and slim tube, etc.;
* High resolution, high sensitivity, high SNR;
* Day & night dual mode auto switch;
* Low Illumination, Low Current and power consumption;
* CMOS sensor generation IV+DSP chip offer true color & HD video
Description :
It’s an ultra small high definition CCTV camera with excellent night vision.
Size is 24x17x10.5mm only, Weight is 3g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.
Application:
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

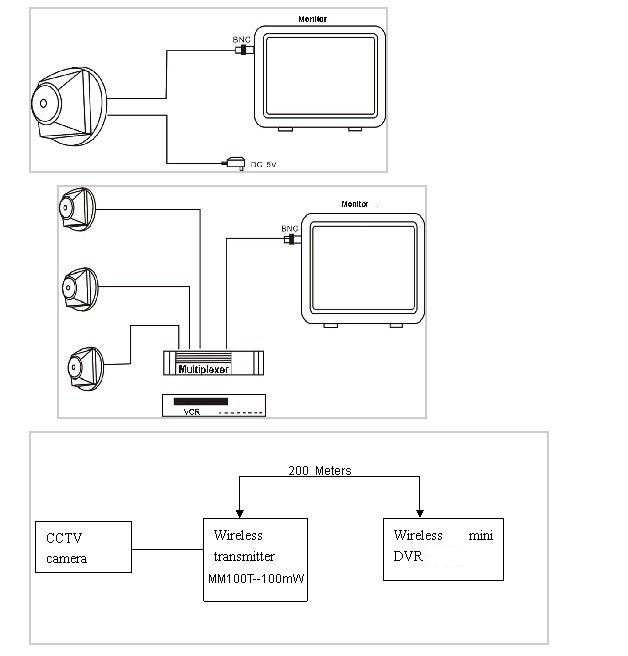

Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.

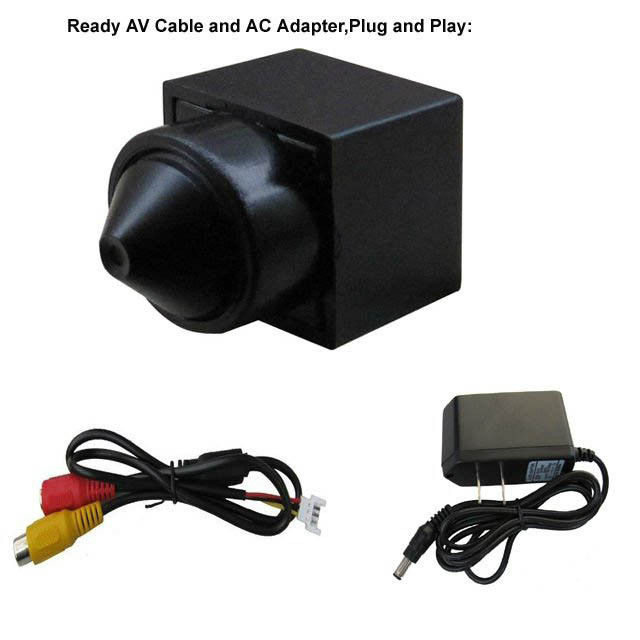

Package:
* mini camera X1;
* RCA BNC cable X1;
* AC adapter DC5VX1
SPECIFICATIONS:
| PICK UP ELEMENT |
Single chip 1/4CMOS |
| SYSTEM |
NTSC |
PAL |
| NUMBER OF PIXEL |
NTSC:720(H)×480(V) |
PAL:720(H)×576(V) |
| SENSOR DIMENSION |
3.584mm(H)×2.688mm(V) |
| HORIZONTAL RESOLUTION |
Approximately 480TV Lines |
| SENSITIVITY |
0.1Lux/F2.8 |
| LENS & VIEW ANGLE |
F2.8/ 90° |
| S/N RATIO |
48dB |
| AUTO GAIN CONTROL |
OUT |
| WHITE BALANCE CONTROL |
OUT |
| BACK LIGHT COMPENSATION |
OUT |
| VIDEO OUT |
1.0V p-p/75ohm |
| WEIGHT |
6g |

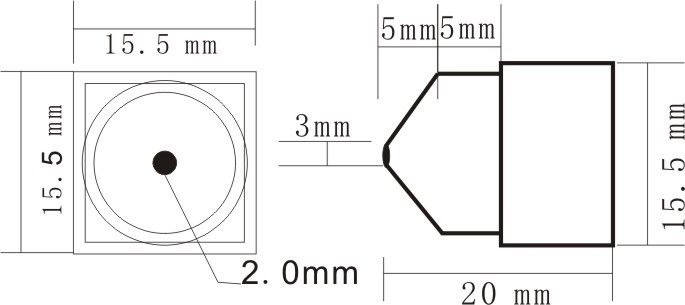

| SIZE(LXWXH) |
15.5X15.5X20mm |
| WORK CURRENT |
DC12V: 45mA DC5V: 95mA |
| POWER REQUIREMENT |
DC:3.6V-24V |
| OPERATING TEMPERATURE |
- 10° C ~ +50°C ,less than 90% RH |
| Connection |
PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT |
