Detailed Product Description
| Image Device: |
1/3 Type CCD X3 |
Horizontal Resolution: |
650 TV Lines |
| Effective Pixels: |
Approx. 1.07 Mega Pixels |
Lens: |
12x Optical Zoom 48x With Digital Zoom |
| Minimum Illumination: |
6 Lx (50 IRE, F1.6, 18dB) |
Weight: |
4.5 Kg (9 Lb 15 Oz.) |

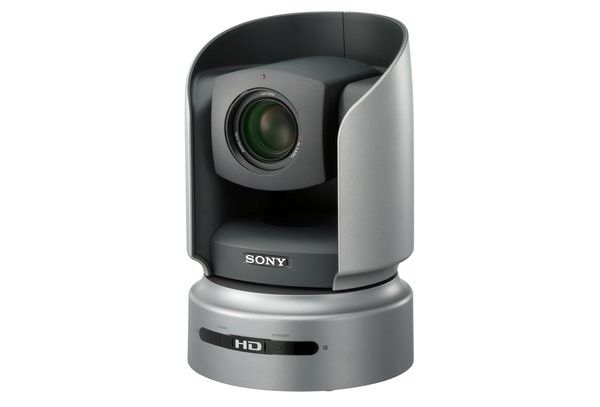

HD 1/3 type 3CCDs P/T/Z Color Video Camera SONY BRC-H700 Robotic Camera
Description:
The BRC-H700 combines a high picture quality HD 3CCDs camera with pan/tilt/zoom mechanism, wrapped in a sleek, compact body. Like its standard definition family member, the BRC-300, the BRC-H700 can also be mounted on the ceiling. The BRC-H700 supports analog RGB, Y/Pb/Pr output as standard and is also equipped with a slot for optional cards resonding to diverse needs. by inserting optional cards into this slot, HD-SDI (HDBK-HD1), down converted SKI (HFBK-SD1), computer XGA (HFBK-XG1) and HDV™ (HFBK-TS1) formats can be used. The BRU-H700 HD optical mutliplex unit with the BRBK-H700 HD optical multiplex card enables the BRC-H700 to transmit uncompressed digital data without deterioration through the CCFC-M100HG HD optical fiber cable. The same RM-BR300 remote control unit for the BRC-300 can be used with BRC-H700; it will simultaneously control up to 7 cameras from a distance.
Highlights:
* All-in-one stylish robotic camera with a robust body
* Using 1/3 type HD 3-CCDs
* Carl Zeiss Vario-Sonnar T*? Lens with representation of picturing in every detail
* Built-in Auto Focus 48x zoom (12x Optical, 4x Digital)
* Desktop and ceiling-mount installation capable
* Wide system expandability with interface card slot for optional cards
* External sync input
* 16 position presets
* RS-232C/RS-422 serial control (VISCA protocol)
* Daisy chain capability (up to 7 units)
* Image stabilization function that reduce vibration
* ND filter that can adapt incident illumination
* Multi-function IR Remote Commander? unit
* OSD (On-Screen Display)
SONY BRC-H700 Specification:
| Camera Performance Specifications |
Detail: |
| Tilt Angle |
-30 to +90 degrees |
| Tilt Speed |
0.25 to 60 degrees/sec |
| General Specifications |
Detail: |
| Analog Output |
RGB / Y/Pb/P(D-sub 15-pin), |
| Angle of View (H) |
5.5 degrees (tele end ) to 60.3 degrees (wide end) |
| Angle of View (V) |
3.12 degrees (tele end) to 36.2 degrees (wide end) |
| Backlight Compensation |
On/Off |
| Built-In Video Output |
D-sub 15 pin: HD video out
Y/Pb/Pr or RGB, HD, VD or SYNC |
| CCD Effective Pixels |
Approx. 1.07 mega pixels |
| Camera Control Interface |
Mini DIN 8 pin: RS-232C (VISCA In/Out), Connector plug 9 pin: RS-422 (VISCA In/Out) |
| Dimensions (W x H x D) |
207 x 310.8 x 207 mm (8 1/4 x 12 1/4 x 8 1/4 inches) |
| Effective Pixels |
Approx. 1.04 Mega pixels |
| Focal Length |
f=4.5 to 54.0mm (F1.6 to F2.8) |
| Focus System |
Auto/Manual |
| Gain |
Auto/Manual (0 to 18 dB and Hyper Gain) |
| Horizontal Resolution |
650 TV lines |
| Image Device |
1/3 type CCD x3 |
| Image Flip |
On/Off |
| Imager |
CCD |
| Lens |
12x optical zoom
48x with digital zoom
Carl Zeiss Vario-Sonnar T* |
| Minimum Illumination |
6 lx (50 IRE, F1.6, 18dB) |
| Minimum Object Distance |
800mm (tele end) 500mm (wide end) |
| ND Filter |
Off/ND1/ND2 |
| Operating Temperature |
32 to 104 ˚F (0 to 40 ˚C) |
| Optical Image Stabilizer |
On / Off |
| Pan Angle |
-170 to + 170 degrees |
| Pan Speed |
0.25 to 60 degrees/sec |
| Pan/Tilt Angle |
-170 to +170 degrees (Pan), -30 to +90 degrees (Tilt) |
| Pan/Tilt Speed |
0.25 to 60 degrees (Pan/Tilt) |
| Panel Display Resolution |
12x Optical Zoom |
| Power Consumption |
Max. 24W (Without optional card) |
| Power Requirements |
DC 10.8 to 13.2 V |
| Preset Positions |
16 positions |
| S/N Ratio |
50 dB |
| Shutter Speed |
1/59.94 to 1/10000(59.94i) 1/50 to 1/10000(50i) |
| Signal System |
1080/59.94i
1080/50i (switchable) |
| Storage Temperature |
-20 degrees to 60°C (-4°F to 104°F) |
| Synchronization |
Internal/External |
| Video Output |
(With an optional card)
HFBK-HD1: HD-SDI
HFBK-SD1: Down converted SD
SD-SDI
RGB
Y/Cb/Cr
Y/C
Composite
HFBK-XG1:
WXGA
XGA
VGA
HFBK-TS1: HDV |
| Weight |
4.5 kg (9 lb 15 oz.) |
| White Balance |
Auto
Indoor
Outdoor
One-push WB
Manual |
