Detailed Product Description
| Imager: |
CMOS |
Effective Pixels: |
Approx. 2.07 Mega Pixels |
| Lens: |
18x Optical Zoom |
Minimum Illumination: |
6 Lx (50 IRE, F1.6, 24dB) |
| Weight: |
1.9 Kg (4 Lb ) |
Preset Positions: |
16 Positions |

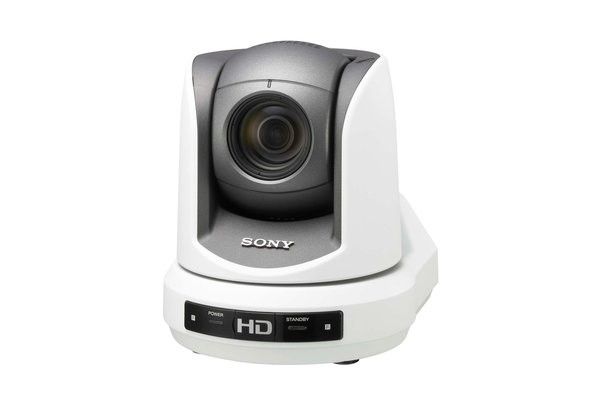

SONY BRC-Z330 HD 1/3 1CMOS P/T/Z Color Video Camera Remote Camera
Description:
The BRC-Z330 is the smallest model in the Series line up. It's compact and light body makes installation and operation very smooth. Moreover, thanks to the adoption of a direct-drive pan/tilt mechanism, it has a quiet operation that minimizes interference with ongoing events and helps it blend in natually with surrounding environments. Above all, this camera also incorporates a relatively low-power-consumption CMOS image sensor.
Application:
The BRC-Z330 is the latest addtion to the Sony BRC Series line up. The unit is equipped with a 1/3-type 2-megapixel CMOS image sensor. The competitive list price is in answer to today's growing demand for full HD images from robotic cameras. The camera's wide pan/tilt ranges and smooth pan/tilt/zoom capability make it perfect for deployment in locations such as houses of worship and auditoriums, as well as at educational facilities, conferences and concerts
Highlights:
* Affordable 1/3 type HD Single CMOS P/T/Z Camera
* Compact Size and Silent Mechanism
* 18x Optical Zoom (72x with Digital Zoom)
* 1080i, 720p, and SD Output
* Optical Card Slot for BRBK-HSD2: HD/SD SDI output card
* External Synchronization Function
* VISCA? Control (RS-232C/RS-422)
* Fiber optical transmition of up to 6800 feet with BRU-SF10, CCFC-S200 (single mode fiber cable) required.
SONY BRC-Z330Specification:
| Camera Performance Specifications |
Detail: |
| Tilt Angle |
-30 to +90 degrees |
| Tilt Speed |
0.25 to 60 degrees/sec |
| General Specifications |
Detail: |
| Analog Output |
RGB / Y/Pb/P(D-sub 15-pin), Y/C (4 pin Mini DIN), VBS (BNC) |
| Angle of View (H) |
3.3 degrees (tele end ) to 55.1 degrees (wide end) |
| Backlight Compensation |
On/Off |
| Built-In Video Output |
D-sub 15 pin: HD video out
Y/Pb/Pr or RGB, HD, VD or SYNC
Mini DIN 4 pin: Y/C
BNC: Composite |
| CCD Effective Pixels |
Approx. 2.07 mega pixels |
| Camera Control Interface |
RS-232C (VISCA protocol)/RS-422 (VISCA protocol) |
| Dimensions (W x H x D) |
160.8 x 186 x 193.4 mm (6 3/8 x 7 3/8 x 7 5/8 inches) |
| Effective Pixels |
Approx. 2.07
mega pixels |
| Focal Length |
f=4.6 to 82.8mm (F1.6 to F2.8) |
| Focus System |
Auto/Manual |
| Gain |
Auto/Manual (-3 to 24 dB and Hyper Gain) |
| Image Device |
1/3 type CMOS x1 |
| Image Flip |
On/Off |
| Imager |
CMOS |
| Lens |
18x optical zoom
72x with digital zoom
Carl Zeiss Vario-Sonnar T* |
| Minimum Illumination |
6 lx (50 IRE, F1.6, 24dB) |
| Minimum Object Distance |
1500mm (tele end) 500mm (wide end, limiter on) 10mm (wide, limier off ) |
| ND Filter |
Off / 1/4 1/16 |
| Operating Temperature |
0 degrees to 40°C (32°F to 104°F) |
| Optical Image Stabilizer |
- |
| Pan Angle |
-175 to + 175 degrees |
| Pan Speed |
0.25 to 60 degrees/sec |
| Power Consumption |
Max. 18W (Without optional card) |
| Power Requirements |
DC 10.8 to 13.2 V |
| Preset Positions |
16 positions |
| S/N Ratio |
50 dB |
| Shutter Speed |
1/60 to 1/10000(59.94i,59.95P) 1/50 to 1/10000(50i,50P) |
| Signal System |
1080/59.94i, 720/59.94P,NTSC or
1080/50i, 720/50P,PAL (switchable) |
| Storage Temperature |
-20 degrees to 60°C (-4°F to 104°F) |
| Synchronization |
Internal/External |
| Video Output |
(With an optional card)
BRBK-HSD2: HD/SD-SDI (There is a limited amount of inventory available for BRBK-HD2: HD SDI) |
| Weight |
1.9 kg (4 lb ) |
| White Balance |
Auto1
Auto2
Indoor
Outdoor
One-push WB
Manual |
