Detailed Product Description
| Sensor: |
1/4-type Exmor CMOS Sensor |
Effective Pixels: |
Approx. 1,450,000 |
| Digital ZoomRESOLUTION: |
12x |
LENS: |
28x Optical Zoom |
| Dimensions: |
50.0 X 60.0 X 89.7 (mm) |
Weight: |
240G |

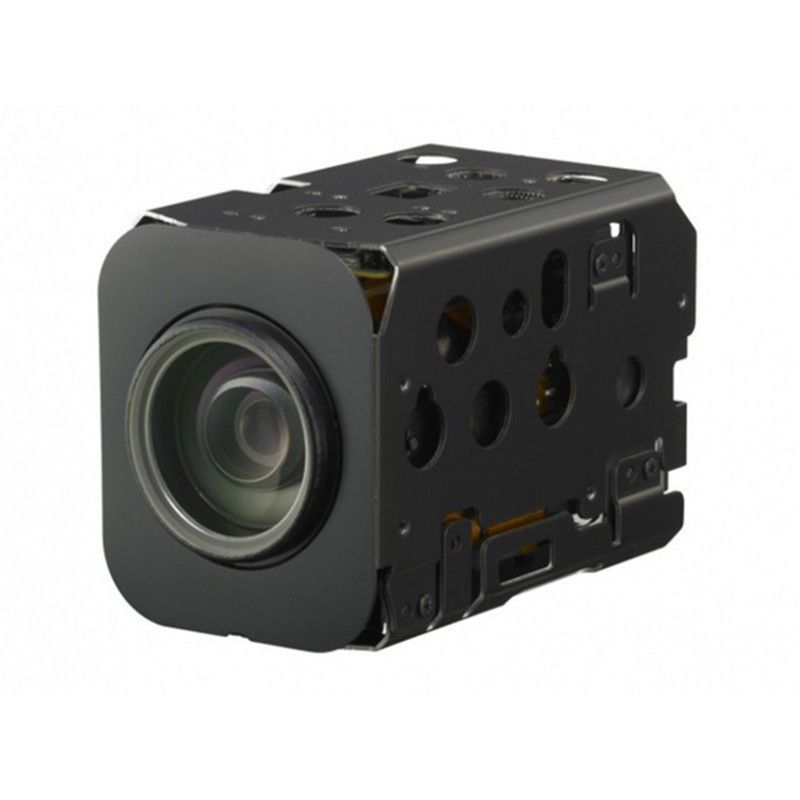

28x HD 720P SONY FCB-EH3410 1/4type CMOS Camera Module With Auto Wide-D Mode
Highlights:
* 1280 x 720p High Definition: Ideally suited for Security monitoring applications, the FCB-EH3410 HD block camera offers 1280 x 720p high definition video output.
* Digital Output (Y/Cb/Cr 4:2:2): The digital LVDS interface provides easy access for IP and Gigabit Ethernet applications. Thanks to the digital interface, the quality of the camera’s video signal is maintained with minimal deterioration. This can lead to cost savings due to the direct connection to codecs/systems without the need for any additional components.
* Temperature Readout: The value of the internal temperature of the FCB-EH3410 camera can be read out via the VISCA? protocol. When checking the internal temperature of equipment (i.e., speed dome unit), it is possible to use this data to turn a fan or heater on/off inside the equipment as needed.
* Auto Wide-D Mode: The new FCB-EH3410 camera monitors the luminance differences within an image in high contrast environments and automatically switches on and off the Wide D feature according to the contrasted lighting environment. In addition, it is possible to select three levels of luminance differences (low/mid/high).
* Additional Wide-D Modes: In addition to the Auto Wide-D mode, the new FCB-EH3410 camera features additional modes, including Indoor, Outdoor, One-push WB, ATW, Manual, Sodium Vapor Lamp.
* Auto ICR: The FCB-EH3410 features a sensitive image sensor, ideal for day/night functions at less than 0.5 lux (F1.6, 50IRE) with high-sensitivity mode on.
Other Features:
* Digital Noise Reduction
* Spherical Zone Masking
* Motion Detection Alarm
* Slow AE response: Max. 2 minutes
* Camera mode display feature
* Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement
Specification:
| Camera Specifications |
Detail: |
| Image Device |
1/4-type Exmor CMOS sensor |
| Effective Pixels |
Approx. 1,450,000 |
| Digital Zoom |
12x (336x with optical zoom) |
| Horizontal Viewing Angle |
55.9° (wide end) to 2.1° (tele end) |
| Sync System |
Internal |
| Electronic Shutter |
1/1 to 1/10,000 s, total 22 steps |
| White Balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual |
| Gain |
Auto/Manual/Max. Gain Limit (-3 to +28dB, +2dB step/total 16 steps) |
| Wide Dynamic Range |
Yes (30 fps) |
| Privacy Zone Masking |
Yes |
| Focus System |
Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR On |
| Picture Effects |
E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement |
| Exposure Control |
Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV Compensation, Slow AE |
| Video Output Specifications |
Detail: |
| Lens Value |
28x Optical zoom, f=3.5 mm (wide) to 98.0 mm (tele), F1.35 to F3.7 |
| S/N Ratio |
More than 50 dB |
| Minimum Illumination |
Less than 1.0 lx (F1.35, 50 IRE) |
| Video Output |
HD: Analog: Component (Y/Pb/Pr), Digital: (Y/CB/Cr) 4:2:2 via LDS
SD: VBS |
| Signal System |
HD: 720p/59.94, 720p/50, 720p/29.97, 720p/25
SD: NTSC, PAL |
| General Specifications |
Detail: |
| Dimensions (W x H x D) |
50.0 x 60.0 x 89.7 (mm) |
| Weight |
Approx. 240 g |
| Operating Temperature |
-5° C to 60° C |
| Storage Temperature |
-20° C to 60° C |
| Power Consumption |
4.7 W (motors active)/3.4 W (motors inactive) |
