5.8G Cmos Camera Module with Audio

5.8G Cmos Camera Module with Audio supplier
cheap 5.8G Cmos Camera Module with Audio cheap 5.8G Cmos Camera Module with Audio cheap 5.8G Cmos Camera Module with Audio

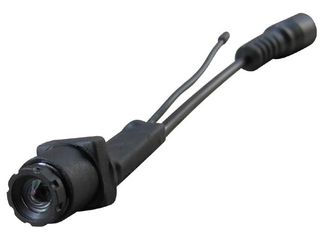

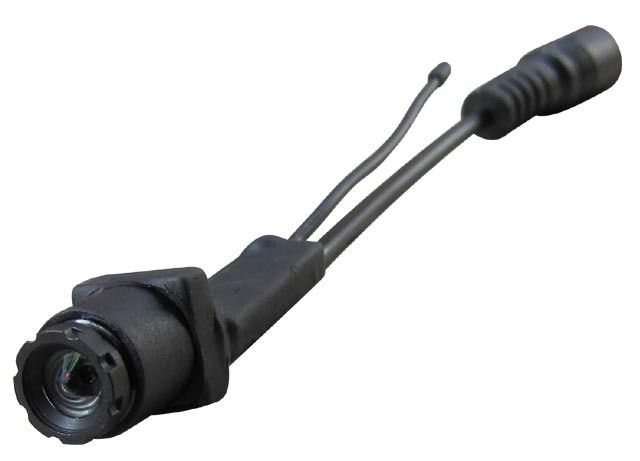

Large Image : 5.8G Cmos Camera Module with Audio

Product Details:

Place of Origin:China
Model Number:SPY960ET

Payment & Shipping Terms:

Minimum Order Quantity:1pcs
Delivery Time:5days
Payment Terms:T/T,PAYPAL
Supply Ability:100pcs/month
Detailed Product Description
Sensor: CMOS Lens: 0.5mm F1.2 / 90 °
Horizontal Resolution: 520TV Lines Weight: 8G
Low Illumination: 0.008lux Size: 39.5mm X 10.5mm X 10.5mm

 5.8G Wireless Mini Cmos Camera Module 90deg angle 16 CHs 0.008lux with Audio



SPY960ET adopts no-interference 5.8G frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities. Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(90deg), small size, wireless transmission, tiny weight( 8g), continuous working(AV power supply), and easy installation . It is a good helper for home monitoring and burglar.



Features:
1. No-interference 5.8G frequency, up to 24 channels for choice;
2. Tiny size (smaller than finger);
3. Tiny weight (only 8g);
4. 0.008LUX super low illumination, which can see clearly under dim light;
5. 90deg .
6. Low power consumption assures the long time working life;
7. 25mW transmitting power, which leads 100 meters wireless transmission range.



 Use method:

Connect it with power supply, it starts to work.
At the same time, power on wireless receiver and set it in the same channel with camera.
Then it starts to receive/record real time audio & video.



Specification:



Working frequency G1-within 5.8G CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz Working Channel: 1 of 24
G2-Beyond 5.8G CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
G3-Within 5.8G CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
Antenna External antenna
RF OUTPUT POWER 25mW
TRANSMISSION RANGE 100 meters
SENSOR DIMENSION NTSC:720(H) x 480(V) PAL:720(H) x 576(V)
HORIZONTAL RESOLUTION 480TV Lines
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F1.2 / 90 °
SIZE(L x W x H) 39.5mm x 10.5mm x 10.5mm
WEIGHT(g) 8g
WORK CURRENT 230mA
POWER REQUIREMENT DC 4V
OPERATING TEMPERATURE - 20°C ~ + 50°C ,Relative humidity 85%
