SAMSUNG SCM-5431 CMOS Camera Module

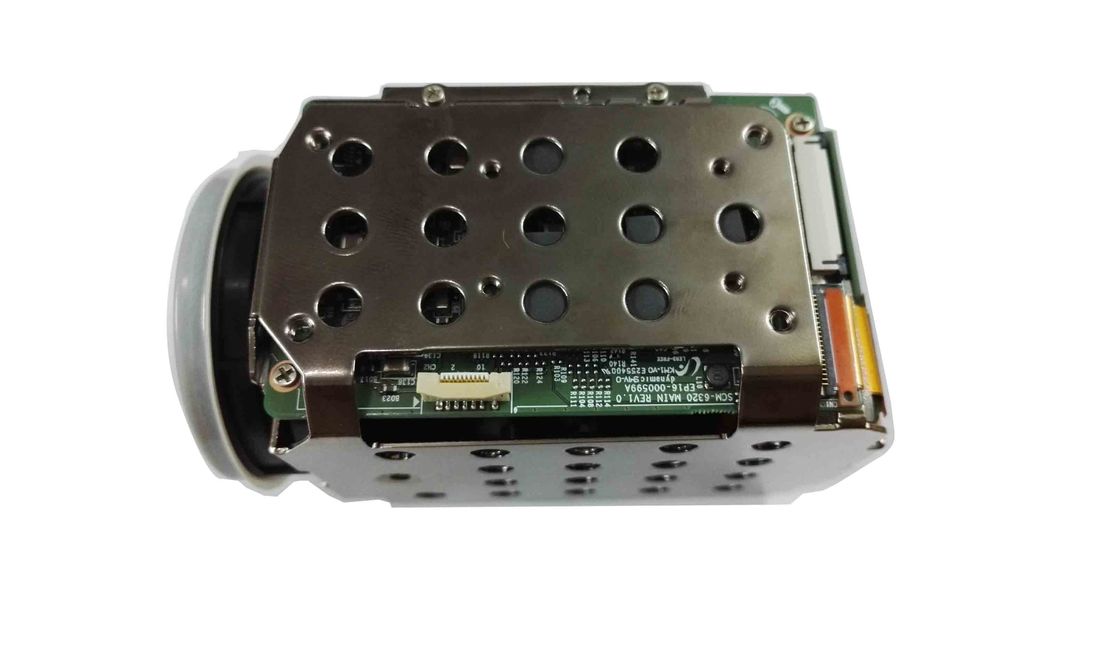

Large Image : SAMSUNG SCM-5431 CMOS Camera Module

Product Details:

Place of Origin:	Korea
Brand Name:	Samsung
Model Number:	SCM-5431

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	5days
Payment Terms:	T/T,PAYPAL
Supply Ability:	200pcs / month

Detailed Product Description

Sensor:	1/4" Progressive Scan CMOS	Effective Pixels:	1368(H) X 1049(V),1.43 Million Pixels
Lens:	43X Optical	Privacy Shelter:	ON/OFF(12 Area)
Size:	48.6 X 53.8 X 91.48mm	Weight:	247G

SAMSUNG SCM-5431 Camera Module With 43X Optical HD 1.5M Pixel 1/4type CMOS

Features:

* 43X HD 1.5 million pixel integration movement (Auto color to black-and-white)

* 1/4" Progressive Scan CMOS
* 43X optical zoom f=3.5 to 150.5mm (F1.6~F2.9)) and 16X digital zoom
* HD 1280 x 1024 (60fps); 1280 x 720 HD (60fps)
* Color: 0.5Lux/F1.4 (50 IRE) , black and white: 0.05Lux/F1.4 (50 IRE)
* 3D+2D advanced noise reduction technology (SSNR III)
* Multi-language OSD menu, DIS (digital image stabilization)

Applications:

Applicable to the plaza, ports, industrial parks , Corridors, parking lot, RC hobby ,quadcopter , unmanned aerial vehicles (UAV) and other places of monitoring .

Specification:

Model	SCM-5431
Sensor	1/4" Progressive scan CMOS
Total Pixels	1392(H) x 1076(V), 1.5 million pixels
Effective Pixels	1368(H) x 1049(V),1.43 million pixels
Scanning system	Progressive scan
Minimum illumination	Color: 0.5 Lux @ F1.4 (50IRE, 30fp) Black and White: 0.05Lux @ F1.4 (50IRE,30fp)
SNR	More than 50dB
Video output	Digital output Y/Cb/Cr 4:2:2 via an LVDS (1024/60 P, 50 P, P 30, 25 P), (720/60 P, 59.94 P, 50 P, P 30, 25 P) Hd analog output Y/Pb/Pr Monitor the CVBS
The focal length (zoom ratio)	43X optical , 3.5 ~ 150.5 mm
Angle of view	H :53.92˚(Wide) ~1.396˚(Tele) / V :44.08˚(Wide) ~ 1.12˚(Tele)
MOD	Wide 1.2m ,Tele 1.2m
Focus Control	Auto/Manual/At Once
Zoom movement speed	3 seconds (fast mode)
Built-in language	Korea, Japan, UK, France, Germany, Spain, Italy, Russia, Turkey, Portugal
The camera name	More than 11 , ON/OFF (display 20 characters)
Day and night conversion	Auto (ICR)/Color/black and white
Backlight compensation	OFF/Backlight compensation/Strong inhibition/WDR
Dark space compensation	SSDR - level is adjustable
Digital noise reduction	SSNR Ⅲ (OFF/Low/Medium/High)
Digital image stabilization	OFF/ON
Dynamic detection	ON/OFF (editable area)
Intelligent video analysis	Appear/Disappear, Tampering Ararm,Fense,Tracking,Counting
Privacy shelter	ON/OFF(12 area)
Iso (frame accumulation)	Auto/OFF (optional limit ~ 60 x)
Gain control	High/Medium/Low/Manual
White balance	ATW/indoor/outdoor/AWC/Manual/Mercury/Sodium / low/manual
The electronic shutter speed	Esc/A.F LK/manual
Digital zoom	On/Off(1 ~ 16 x x)
Flip/mirror	OFF/H - Rev/V - Rev/HV - Rev
communication	RS-232C TTL
Working temperature/humidity	-10°C ~ +60°C/ 20% to 80% RH
Storage temperature/humidity	-20°C ~ +60°C/ 20% to 95% RH
Input voltage/current	12VDC±10%
Power consumption	Max. 4.8W
Size	48.6 x 53.8 x 91.48mm
Weight	247G
