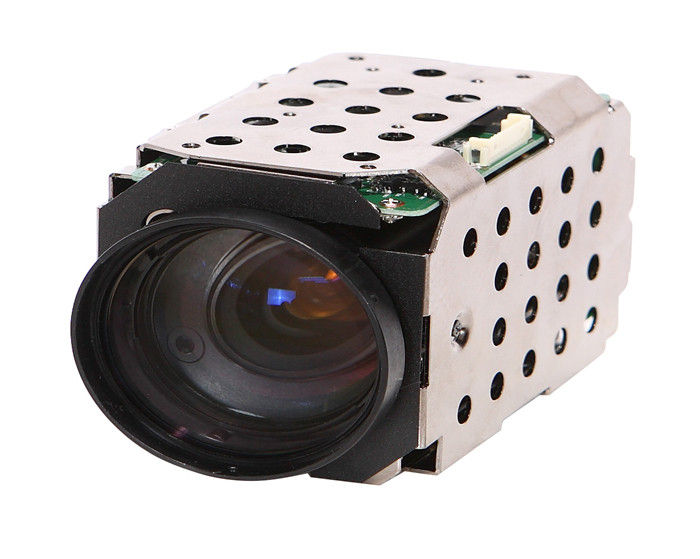

Samsung Camera Module SCM-2331P 44 Million

: Large Image : Samsung Camera Module SCM-2331P 44 Million

Product Details:

Place of Origin:	Korea
Brand Name:	Samsung
Model Number:	SCM-2331P

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	100pcs/month

Detailed Product Description

CCD:	1/4 Inch, Interline Transfer CCD，sony Ⅱ CCD	Total Pixels:	PAL: 795(H) X 596(V); NTSC: 811(H) X 508(V)
Optical Zoom:	33x	White Balance:	ATW / AWB / MWB/Indoor / Outdoor (1,700K～11000K)
BLC:	BLC /HLC/Off	Size:	48.6(W) ×53.8(H) ×93.7(D)mm

Samsung Camera Module SCM-2331P 44 Million , 33X CCD Color , Outdoor / Indoor

Specification:

Model		SCM-2331P / SCM-2331N
Power supply	Voltage	DC8V~15V(Recommend : 12V)
Power supply	Power	4.8W: dynamic condition
CCD	size	1/4 inch, Interline Transfer CCD,sony Ⅱ CCD
	Total Pixels	PAL: 795(H) x 596(V); NTSC: 811(H) x 508(V)
	Effective Pixels	PAL: 752(H) x 582(V); NTSC: 768(H) x 494(V)
Optical	Optical zoom	3.5to 115.5mm,33X
	Optical zoom	F1.6(W) ~ F3.9(T)
	The minimum focus distance	1500mm
	Digital Zoom	Off/On (X2- 16X)
	Maximum range observed	level 55.5°to1.31°
Synchronization	Scanning system	2:1 Interlace
	Synchronization	Internal Synchronization /Outside synchronization
	frequency	PAL: H:15.625 KHZ/V:50.00HZ NTSC: H:15.734 KHz/V:59.94 Hz
Function	Resolution	Color: 560TV Black-and-white : 680 TV
	Minimum illumination	0.2Lux/F1.6(50 IRE):Color/0.02 Lux/F1.6(50 IRE):Black-and-white
	SNR	52dB(AGC Off,Weight ON)
	video output	CVBS:1.0Vp-p/75Ω
	Focus	Auto/Manual /One-time focus
	Focus on speed	2.2s: Nearly burnt to telephoto
	SSDR	On/Off
	aperture	Auto/Manual
	Camera initialization	Built in
	The camera title	On/Off
	Camera id	255 ID
	ICR	Auto/Color/Black-and-white/constraint
	Gain	Low/medium/high / Manual/ Off
	White Balance	ATW / AWB / MWB/Indoor / Outdoor (1,700K～11000K)
	BLC	BLC /HLC/Off
	Electronic Shutter	Auto/Manual/Flicker Filter (1/120.000～X512)
	OSD	Chinese/Korean/English/Japanese/French/Spanish/polish/German/Portuguese/Czech/Italian/Russian
	Dynamic alarm	On/Off
	External control	RS-232C TTL Level(2400.4800.9600.19200.38400.57600.115200bps)
	DNR SSNRⅢ	Low/medium/high/Off
	SSDR	Dark space compensation
	Privacy shelter	On/Off(8 area )
	Rollover	right and left /Up and down
	DIS	On/Off
	working environment	-10℃ to+50℃/20﹪ to 80﹪ RH
	Stored Environment	-20℃to+60℃/20﹪to95﹪RH
	Size	48.6(W) ×53.8(H) ×93.7(D)mm

Advantage:

* 33*12X, Color to B/W
* 1/4" Super HAD CCD
* 44 million pixels
* 560 line/0.4Lux(color)
* 680 line/0.02Lux(B/W)
* Samsung SSNR noise reduction chip
* exercise monitoring function
* f=3.3-115.5mm
