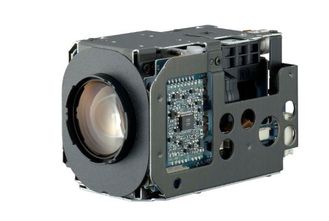

18x Zoom Color CCD Block Camera / Sony Module Camera FCB-EX480CP

18x Zoom Color CCD Block Camera / Sony Module Camera FCB-EX480CP

Description:

Sony's new FCB-EX series of colour block cameras are equipped with an incredibly high
18x zoom lens which has a wide/telephoto horizontal field of view, making them ideally suited for use in security domes and traffic monitoring applications. These cameras incorporate an advanced Spherical Privacy Zone Masking feature which allows the masking function to be interlocked with the camera's pan/tilt/zoom movements, regardless of the camera angle, ensuring the individual's privacy.

The SONY FCB-480CP color block camera combines a 1/4 type EXview HAD® CCD with a minimum illumination of 0.7 lux (typical 50 IRE) and an auto ICR function. Comes equipped with a 18x lens featuring Sony's new SMART" Lens Control technology and upgraded 3-D "Spherical Privacy Zone Masking" function.

SONY FCB-EX480CP Camera HIGHLIGHTS:
* 1/4 type EXview HAD CCD
* Minimum Sensitivity of 0.7 lux (50 IRE)
* 216x total optical zoom (18x optical zoom/ 12x digital)
* 380 000 pixels (NTSC) 440 000 (PAL)
* High-speed serial communication (max. 38.4 kbps) and TTL signal-level control (VISCA™ protocol) for quick command processing
* Programmable factory preset
* Various AE modes including zoom trigger and interval mode
* Various AF modes including spot AE mode to optimize the brightness within a specific area
* Various customizable settings
* Key switch control capability
* Low power consumption (minimum 1.6 W)
* EEPROM backup system without battery
* Lead-free solder mounting board

Sony FCB-EX480CP Camera Features:

*  Advanced Spherical Privacy Zone Masking function
(max. 24 masking blocks)
*  SMART lens control
(Sony Modular Automatic Lens Reset Technology)
*  Electronic-Flip (E-Flip) function
*  Alarm function
*  Auto ICR (IR Cut Filter Removal) Mode*
*  High-performance Digital Signal Processing (DSP)
*  High-speed serial interface (max. 38.4 Kb/s) with TTL signal-level control (VISCA? protocol)
*  Equipped with key switch connector (CN601) for camera control with external equipment
*  Various customisable settings
*  Internal/External sync
*  Low power consumption (1.6 W with motors inactive)
*  EEPROM backup system without battery
*  16-bytes of free memory is available for recording data such as product serial numbers and camera/system ID numbers
*  Lead-free solder and halogen-free printed-circuit boards

FCB-EX480CP SPECIFICATIONS:
* Image Sensor: 1/4 type EXview HAD CCD
* Number of Effective Pixels: Approx. 380 000 pixels (NTSC) 440 000 (PAL)
* Lens: 18x zoom f=4.1mm (wide) to 73.8 mm (tele) F1.4 to F3.0
* Digital Zoom: 12x (216x with optical zoom)
* Angle of View (H): 48° (wide end) to 2.8° (tele end)
* Min. Working Distance: 35mm (wide end) to 800mm (tele end)
* Sync. System: Internal/External (V-Lock)
* Min. Illumination: 0.7 lx (typical) (50 IRE)
* S/N Ratio: More than 50dB
* Electronic Shutter: 1/1 to 1/10 000 sec. 22 steps
* White Balance: Auto ATW Indoor Outdoor One-Push Manual
* Gain: Auto/Manual (-3 to 28 dB 2dB steps)
* AE Control: Auto Manual Priority mode Bright EV compensation Back light compensation
* EV Compensation: -10.5 to 10.5dB (1.5 dB steps)
* Back Light Compensation: On/Off
* Privacy Zone Masking: On/Off (24 positions)
* Flicker Cancel: Auto
* Focusing System: Auto (Sensitivity : Normal Low) One-Push AF Manual Infinity * Interval AF Zoom Trigger AF
* Picture Effect: E-Flip Nega. Art Black & White Mirror Image
* Camera Operation Switch: Zoom tele Zoom wide
* Video Output: VBS: 1.0Vp-p (sync negatibve) Y/B Output
* Camera Control Interface: VISCA™ (TTL signal level) baud rate: 9.6Kb/s 19.2Kb/s 38.4Kb/s Stop Bit: 1/2 selectable
* Storage Temperature: -20° to 60°C (-4°F to 140°F)
* Operating Temperature: 0° to 50°C (32°F to 122°F)
* Power Consumption: 6V
