Detailed Product Description
| Sensor: |
1/3-type CMOS |
Effective Pixels: |
Approx. 2.00 Megapixels |
| Lens: |
10x Optical Zoom |
Digital Zoom: |
12x |
| Size: |
47.2 X 43.1 X 72.2 Mm |
Weight: |
120 G |

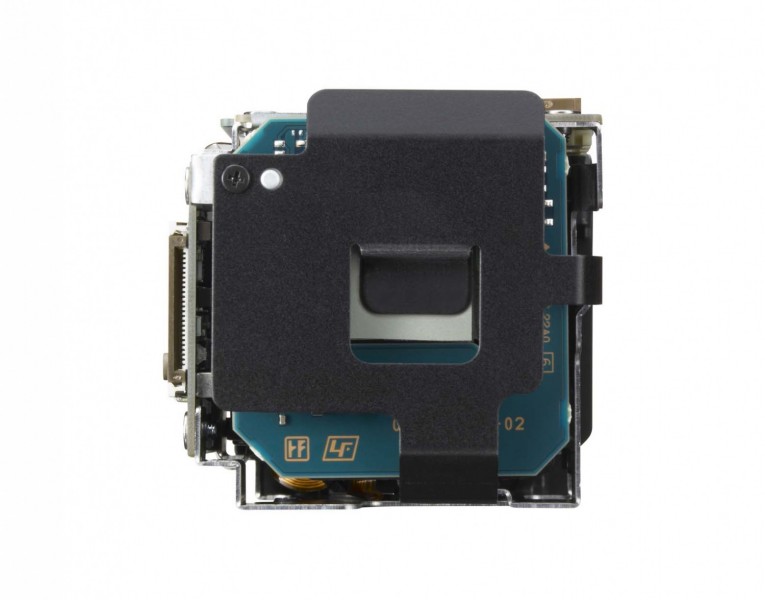

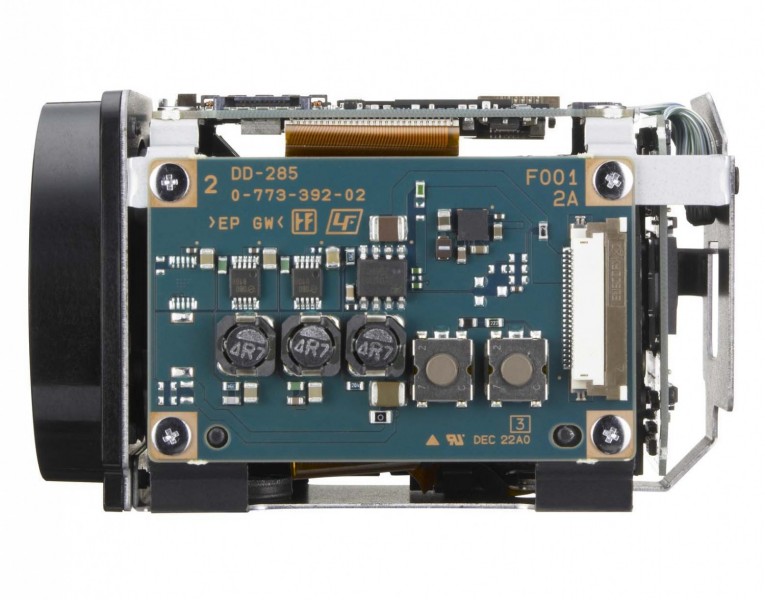

Day / Night SONY Mini HD Camera Module FCB-H11 10x Color Block Camera
Competitive Advantage:
The FCB-H11 colour camera expands Sony's commitment to the world of HD with a 1080i and 720p signal system. This stunning HD camera module incorporates a 1/3-type HD CMOS image sensor boasting approximately two-million effective pixels and a Day/Night capability.
Feature:
* Superb Picture Quality with Two Megapixel HD CMOS Sensor
* Multi-Format Video Outputs from NTSC/PAL to Full HD
* Day/Night Function
* 120x Zoom Ratio (10x Optical + 12x Digital)
* Compact and Lightweight Design
* Other Features Include
* SPOT AE Function
* Slow Shutter
* Low Power Consumption (4.8 W)
Description:
Combining Excellent Picture Quality, Multiple Video Outputs, and Day/Night Function, the FCB-H11 Makes Vision Solutions Crystal Clear.
Sonys FCB-H11 has become the industry standard for HD quality camera block technology since its introduction around 8 years ago, during the time when HD was first entering the industrial imaging market.
Sony has since expanded its range of HD and Full HD camera blocks, building upon the years of technological innovations and development from this first HD offering.
FCB-H11 remains a very popluar product due to its small form factor, weight and great image quality.
Applications:
* Drone Camera
* Pipe Inspection
* Underwater Applications
* Medical Applications
* Broadcast Camera
Specifications:
| Image Sensor |
1/3-type CMOS |
| Signal System |
HD: 1080/59.94I, 1080/50I, 720/59.94p, 720/50p
SD: NTSC (Crop/Squeeze). PAL (Crop/Squeeze) |
| Lens |
10x optical zoom, f=5.1 mm (wide) to 51.0 mm (tele), F1.8 to F2.1 |
| Minimum Object Distance |
10 mm (wide) to 800 mm (tele) |
| Horizontal Viewing Angle |
50° (wide) to 5.4” (tele)* |
| Focus System |
Full Auto (Normal AF/Interval AF/Zoom Trigger AF), |
| Gain |
Auto/Manual (-3 to 18 dB, 8 steps) |
| White balance |
Auto, indoor, Outdoor, One-push, Manual |
| Effects |
Nega Art, Black & White, Picture Freeze |
| S/N ratio |
More than 50 dB |
| Video output |
HD: Analog component: Y/Pb/Pr
SD: VBS: 1.0Vp-p (sync negative) Y/C |
| Power consumption |
6 to 12V DC/4.8W |
| Operating temperature |
0 to 45°C (32 to 81°F) |
| Storage temperature |
-20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) |
47.2 x 43.1 x 72.2mm (1 7/8 x 1 3/4 x 2 7/8 inches) |
| Mass |
Approx. 120g (4.2oz) |
| Footnote |
* in HD and SD SQUEEZE output mode |
| Electronic shutter |
1/2 to 1/10,000 s, 21 steps |
| Digital zoom |
12x (120x with optical zoom) |
| EV compensation |
-10.5 to 10.5 dB (15 steps, 1.5 dB increments) |
| Backlight compensation |
On/Off |
| Camera operation switch |
Zoom tele, Zoom wide |
| Camera control interface |
VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, stop bit: 1 bit |
| AE control |
Auto, Manual, Shutter Priority, Iris Priority, Bright, Spot AE |
| Number of total pixels |
Approx 2,000,000 pixels |
| Aspect ratio |
HD: 16:9 SD: 4:3/16:9 |
