Detailed Product Description
| Sensor: |
1/2.8-type Exmor CMOS (IMX136) |
Effective Pixels: |
1080/60 Support (60p With Wide-D) |
| Lens: |
10x Optical Zoom |
Digital Zoom: |
12x |
| Size: |
45.6 X 49 X 78 Mm |
Weight: |
150 G |

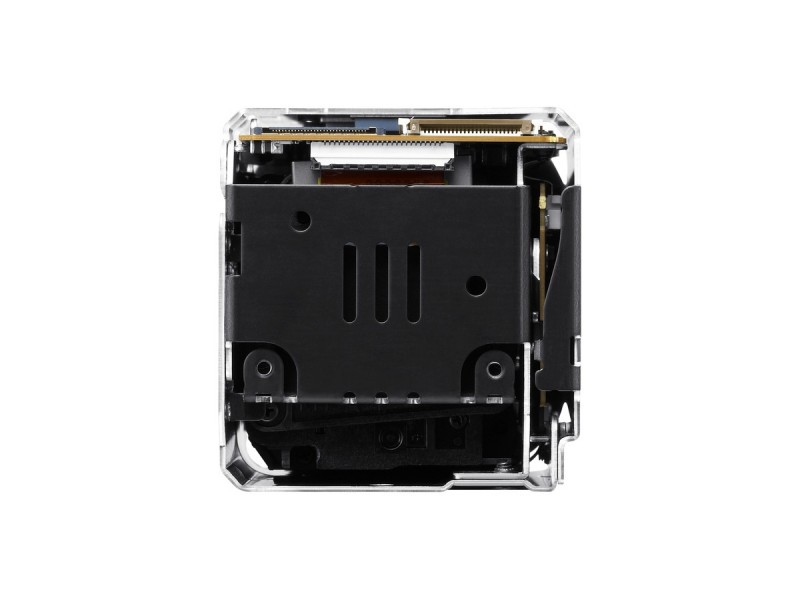

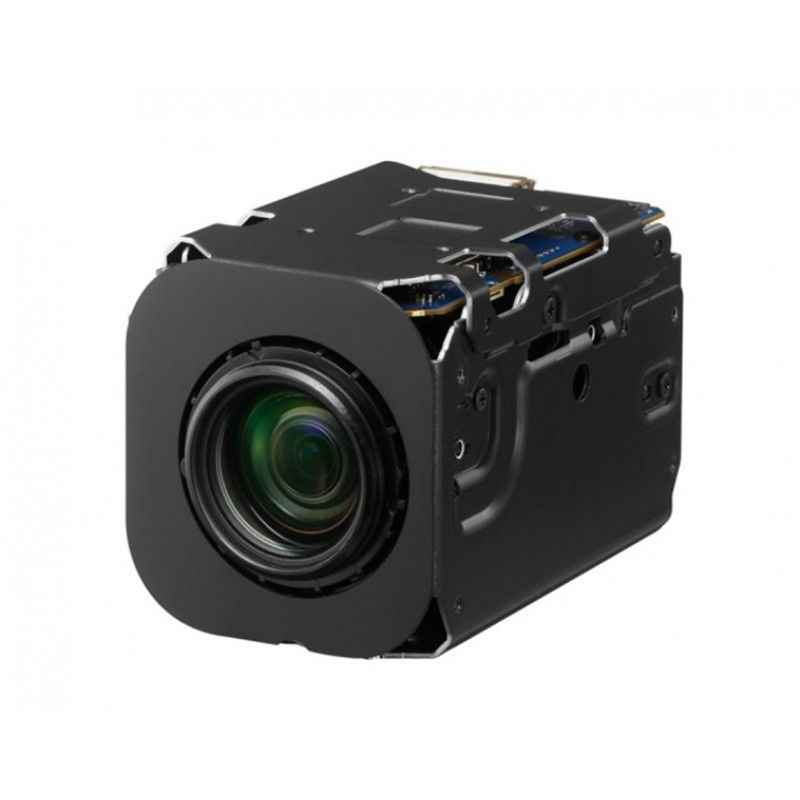

FCB-EV7100 HD Camera Module CMOS WDR With 10x Zoom Wide Angle Lens
Feature:
* Higher Sensitivity via Exmor CMOS
* 1080/60 support (60p with Wide-D)
* New Wide Dynamic Range Function
* Advanced 2D/3D Noise Reduction
* Visibility Enhancer (Tone Reproduction)
* De-Fog Effect
* De-Mist Effect
* Anti-focal plane Image Stabilizer
* Reduced Latency
* Privacy Zone Masking
* Optimized Sharpness & Color Management
* And more!
Description:
In response to growing demand for high-quality, high-resolution images, Sony is adding three new colour
models to our camera block line-up.The FCB-EV7500 employs a 1/2.8-type Exmor™ CMOS image sensor
with Full HD (1080/60p) performance, and achieves excellent zooming performance with a 30x optical zoom
lens. The FCB-EV7100 also delivers Full HD (1080/60p) performance with a 10x optical zoom lens with very
light compact design. The FCB-EV5500 is a model with HD (720/60p) performance with 30x optical zoom lens.
All of these cameras inherit a multitude of features from Sony’s world-renowned FCB Series including Wide-D*1, Auto ICR, Spherical Privacy Zone Masking and NEW Visibility Enhancer. These useful features are suitable for
a variety of demanding applications.
Specifications:
| Image Sensor |
1/2.8-type Exmor CMOS (IMX136) |
| Signal System |
1080p : 59.94, 50, 29.97, 25
1080i : 59.94, 50,
720p: 59.94, 50, 29.97, 25 SD |
Minimum Illumination
(50%, Normal Mode) |
1.6 lx (F1.8, ICR off) |
| Sync System |
Internal |
| Exposure Control |
Auto, Manual, Priority mode (shutter & iris priority), Bright, EV compensation, Slow AE |
| Backlight Compensation |
Yes |
| Aperture Control |
16 steps |
| Lens |
10x optical zoom
f = 3.8 mm to 38 mm
F1.8 to F3.4 |
| Digital Zoom |
12x (360x with optical zoom) |
| Focusing System |
Auto, One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF |
| Horizontal Viewing Angle |
67.2° to 7.6 |
| Minimum Object Distance |
10 mm (Wide end) |
| Auto ICR |
Yes |
| Wide-D |
Yes |
| Noise Reduction |
Yes (2D / 3D) |
| De-fog/De-mist |
Yes (by VE) |
| Image Stabilization |
TBD |
| Privacy Zone Masking |
Yes (Polygonal, Spherical, Mosaic) |
| Motion Detection |
Yes |
| Alarm |
Yes |
| Picture Effects |
Yes |
| Slow AE Response |
Yes |
| Slow Shutter |
Yes |
| Temperature Readout |
Yes |
| Title Display |
Yes |
| Camera Mode Display |
Yes |
| Video Output (HD) |
Analog : Component (Y/Pb/Pr)
Digital : LVDS |
| Video Output (SD) |
VBS, Y/C |
| Camera Control Interface |
VISCA (CMOS 5 V level) |
| Power Requirements |
6.0 V to 12.0 V DC |
| Power Consumption |
TBD |
| Operating Temperature |
-5°C to 60°C |
| Storage Temperature |
-20°C to +60°C |
| Dimensions (W x H x D)*1 |
45.6 x 49 x 78 mm |
| Mass |
Approx. 150 g |
Competitive Advantage:
The FCB-EV7100 delivers Full HD (1080/60p) performance with a 10x optical zoom lens with very light compact design.
Applications:
* Drone Camera
* Pipe Inspection
* Underwater Applications
* Medical Applications
* Broadcast Camera
