Detailed Product Description
| Sensor: |
1/2.8-type Exmor CMOS |
Effective Pixels: |
Approx. 2 Megapixels |
| Lens: |
20x Optical Zoom |
Digital Zoom: |
12x |
| Size: |
50.0 X 60.0 X 87.9 Mm |
Weight: |
260 G |

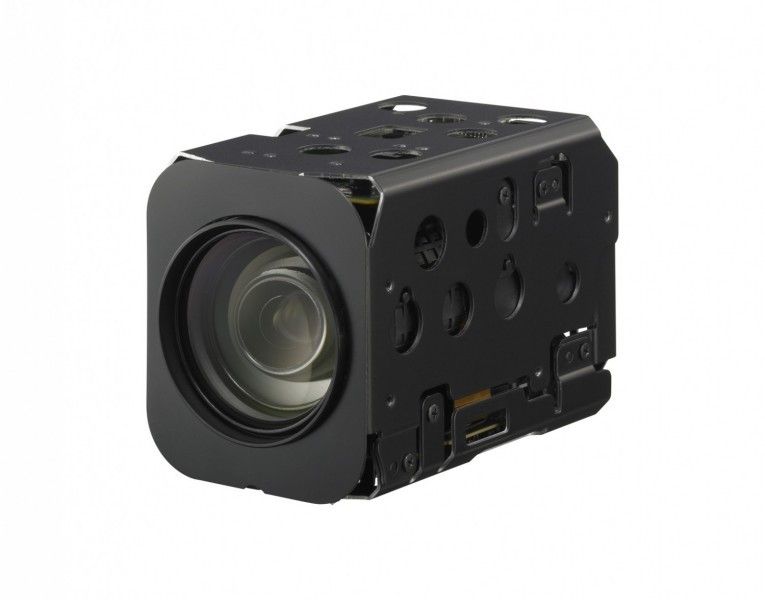

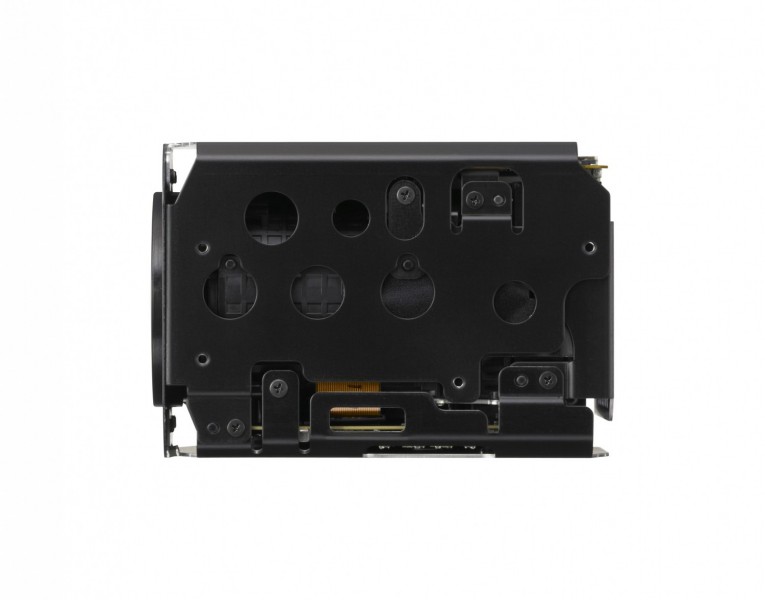

SONY FULLHD Camera Module 2 Megapixel 20x HD Color Block Zoom Camera FCB-EH6300
Description:
In continuing its commitment to HD technology and superb picture quality for applications that require dynamic, high-resolution images and flexibility, Sony is introducing the SONY FCB-EH6300 Color HD Block Camera. This impressive new model extends application possibilities and features full 1920 x 1080 HD resolution. The SONY FCB-EH6300 incorporates a 1/2.8-type Exmor CMOS image sensor, boasting approximately 3,270,000 effective pixels for exceptional picture quality. Other features, such as Wide-D, Auto ICR and Spherical Privacy Zone Masking, make the SONY FCB-EH6300 ideally suited for security and surveillance applications. Available picture effects include Color Enhancement, E-flip, Nega Art, Black & White, and Mirror Image.
Feature:
* Image Device 1/2.8 type Exmor™ CMOS sensor
* Effective Pixels Approx. 2 million
* Digital Zoom 10x (200x with optical zoom)
* Horizontal Viewing Angle 54.1 (wide end) to 2.9 (tele end)
* Minimum Object Distance 10mm (wide) ~ 1,000 mm (tele)
* Sync System Internal
* Electronic Shutter 1/2 to 1/10,000 s, 21 steps
* White Balance Auto, ATW, Indoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual
* Gain Auto/Manual/Max. Gain Limit (-3 to 28 dB, 2 dB steps)
* Wide Dynamic Range Auto/Manual
* Focus System Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF
* Camera Operation / Zoom Switch Yes (Zoom Tele, Zoom Wide)
* Picture Effects E-flip, Nega Art, Black & White, Mirror image, Color enhancement
Sony FCBEH6300 Video Output Specifications:
* Lens Value 20x Optical Zoom, f=4.7 mm (wide) ~ 94.0 mm (tele, F1.6 to F3.5
* S/N Ratio More than 50 dB
* Minimum Illumination Less than 1.7 lx (F1.6, 50 IRE), 0.5 lx in High Sensitivity Mode
* Signal System HD: 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/50, 720p/29.97, 720p/25; SD: NTSC/PAL
Interfaces Specifications:
* Camera Control Interface VISCA? (TTL Signal Level) Baud Rate: 96 Kb/s, 19.2 Kb/s, 38.4 Kb/s; Stop bit:
1/2 bit selectable
General Specifications:
* Dimensions (W x H x D) 50.0 (w) x 60 (h) x 89 (d) mm
* Weight Less than 270g
* Operating Temperature -5 C - 60 C
* Storage Temperature -20 C - 60 C
* Power Consumption Less than 4.8W (motors inactive)
* Power Requirements 6.0V ~ 12.0V DC
Specifications:
| Image Sensor |
1/2.8-type Exmor CMOS |
| Image Sensor (Number of Effective Pixels) |
Approx. 3.27 Megapixels |
| Signal System |
1080p/29.97, 1080p/25, 1080i/59.94 (Frame out: 29.97 PsF), 1080i/50 (Fram out: 25 PsF), 720p/59.94, 720p/50, 720p/29.97, 720p/25, NTSC, PAL |
| Minimum Illumination (50%, High Sensitivity Mode) |
0.5 lx (F1.6, ICR off)
0.095 lx (F1.6, ICR on)
1.7 lx (F1.6, ICR off)
0.3 lx (F1.6, ICR on) |
| Recommended Illumination |
100 lx to 100,000 lx |
| S/N Ratio |
More than 50 dB |
| Gain |
Max. Gain Limit: +6 dB to +28 dB, +2 dB step (12 steps)
Auto/Manual : -3 dB to +28 dB, +2 dB step (16 steps) |
| Shutter Speed |
1/1 s to 1/10,000 s, 22 steps |
| Sync System |
Internal |
| Exposure Control |
Auto, Manual, Priority mode (shutter & iris priority), Bright, EV compensation, Slow AE |
| Backlight Compensation |
Yes |
| Aperture Control |
16 steps |
| White Balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual |
| Lens |
F1.6 to F3.5
f = 4.7 mm (wide) to 94.0 mm (tele)
20x optical zoom |
| Digital Zoom |
12x (240x with optical zoom) |
| Focusing System |
Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR on |
| Horizontal Viewing Angle (1080p Mode) |
55.4°(wide end) to 2.9°(tele end) |
| Horizontal Viewing Angle (720p Mode) |
37.6°(wide end) to 2.0°(tele end) |
| Minimum Object Distance |
10 mm (wide end) to 1,000 mm (tele end) (Default: 300 mm) |
Applications:
* Drone Camera
* Pipe Inspection
* Underwater Applications
* Medical Applications
* Broadcast Camera
Competitive Advantage:
The FCB-EH6300 combines full HD images at up to1080/30p with a 20x optical zoom lens capability, providing a powerful solution ideally suited for integration into surveillance-based applications .
