Detailed Product Description
| Image Sensor: |
1/3 Inch Progressive Scan CCD |
Optical Zoome: |
30x Optical Zoome |
| DSP: |
DSP8 |
Horizontal Resolution: |
600 TVL (720 P Output) |
| Dimensions: |
50*60*89.5mm |
Weight: |
260G |

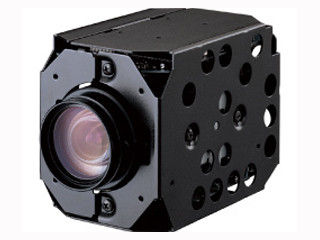

H 264 Camera Module Hitcahi DI-SC121 , Hd 720P Cmos Module PAL System
Advantage and Features:
* 30X optical zoom
* Minimum sensitivity 0.5 lx
* The dual control protocol
* Digital output
* 1/3 inch Progressive scan CCD
* Horizontal Resolution (color)
* 600 TVL (720 p output)
* Minimum illumination (color) : 1.4 lx
* Backlight compensation (BLC)
* 1 million pixel digital interface
* Working temperature - 10 to 60 °
Applications:
* Surveillance - In corporate, medical, learning institutes and other public places, security camera solutions offer peace of mind.
* Traffic Management - Monitoring and responding to ongoing road activity in residential and business areas.
* In Car Video - Hybrid use of a camera used in a vehicle.
* Telepresence - Conference type solutions in business or learning institutions.
* Low Vision Magnifier - Video technology for sight impaired individuals.
Specification:
|
Model
|
DI-SC121
|
|
System
|
PAL
|
|
Image Size
|
6.0mm opposite angle (1/3 inch)
|
|
progressive scan
|
Yes
|
|
Pixel
|
1 million
|
|
Anti-jitter
|
Yes
|
|
output pixels/frame rate
|
1384*746(1.00M) 1296*736(0.95M)
|
|
Optical lenses 30x
|
|
ZOOM RATIO
|
30X2
|
|
practical F value
|
4.4~132mm
|
|
Angle of view of the actual level
|
62.9°(w)~2.2°(t)
|
|
F-value
|
F1.4(w)~F4.6(t)
|
|
Zoom speed(Manual)
|
1.5s(soft)
|
|
Zoom speed(Tracking the preset mode)
|
1.5s(soft)
|
|
minimum focus 0.01m(w)-3m(t)
|
|
Minimum Illumination
|
IR-CUT ON 0.5lx(1/30s) 0.005lx(1/4s)
|
|
Manual (far/near)
|
support (soft)
|
|
focusing
|
Wide -1m(t)-0.01m(w)
|
|
Day/night switch
|
|
Auto
|
Pro.AER+
|
|
Manual (on/off)
|
support (soft)
|
|
Life
|
|
Zoom/focus/aperture
|
500k loop
|
|
Infrared optical filter
|
50k loop
|
|
DSP
|
|
DSP processor
|
DSP-8
|
|
gorge line
|
Method: rate , RS232:57.6K/38.4K/19.2K/9.6K/4.8K*bps RS232C logic level : 3.3V
|
|
DSS
|
Yes
|
|
WDR
|
On/Off(default)
|
|
mirror image
|
On/Off(default)
|
|
Flip Vertical
|
On/Off(default)
|
|
Image Rollover
|
On/Off(default)
|
|
Image Freeze
|
On/Off(default)
|
|
Privacy masking
|
On/Off(2 zone 2-D/8 zone 3-D(4/1 screen)(soft)
|
|
Activity detection
|
Off/On
|
|
FNR
|
Yes
|
|
Multi-user setting
|
Max. 111
|
|
Dynamic point to cancel
|
Yes
|
|
electronic shutter
|
|
Auto
|
1/15s-1/4ks
|
|
Auto (+ digital slow shutter)
|
1/4s-1/4ks
|
|
Manual
|
1/4s-1/10ks
|
|
diaphragm
|
Auto
|
|
BLC
|
On/Off(default )
|
|
WB
|
Auto
|
|
Horizontal Distiguishability
|
800TVL(1280X960 pixel)
|
|
The minimum sensitivity
|
|
IR-cut ON(1/30s)
|
1.8lx
|
|
IR-cut OFF(1/4s)
|
0.02lx(1/4s)
|
|
condition
|
F1.6(W),50 IRE
|
|
Sync System
|
Internal/line lock(50Hz)
|
|
Power
|
|
supply voltage
|
9~12V DC
|
|
supply current (9V DC)
|
330mA(All motor does not work)
|
|
450mA(Focus/zoom motor activity)
|
|
650mA(Focus/zoom/infrared filter motor movement)
|
|
Maxim Power Consumption (9V DC)
|
3.0W-5.9W
|
|
Video Output
|
|
analog output
|
-
|
|
digital output
|
YUV422,Y8bit+C8bit
|
|
output interface
|
|
|
digital output
|
36pin/40pin
|
|
Size
|
50*60*89.5mm
|
|
Weight
|
260g
|
|
interfaces count
|
3(analog :9pin FFC/digital:36 pin FFC&40pin MINI COAXIAL CABLE )
|
|
Operating temperature (Recommend )
|
-10~60℃
|
|
Storage Temperature
|
-20℃~60℃
|
