Detailed Product Description
| Optical Zoome: |
22X Optical Zoom |
DSP: |
DSP8 |
| Horizontal Resolution: |
800 TVL(1280 X 960) |
Dimensions: |
50*60*89.5mm |
| Weight: |
260G |
Image Size: |
6.0mm Opposite Angles(1/3inch) |
| Backlight Compensation: |
Support |
|
|

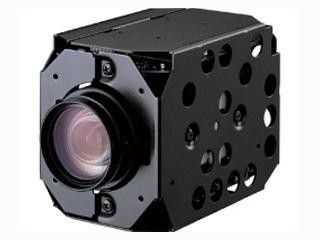

Defog Hitachi Camera Module DI-SC116 22X Optical Zoom Security System
Features:
* 22X optical zoom
* Million pixels progressive scanning CCD
* Minimum sensitivity 0.5 lx
* De-Fog function
* The dual control protocol
* Digital output
* Operating temperature: -10-60°
Description:
22 x optical zoom, 2x digital zoom, progressive scanning 1/3 inch CCD ,Horizontal Resolution (color) : 600 TVL (720P output), penetrate the fog function , Minimum Illumination (color) : 1.4 lx, backlight compensation (BLC) 1 million pixels, digital interface .
Applications:
* Surveillance - In corporate, medical, learning institutes and other public places, security camera solutions offer peace of mind.
* Traffic Management - Monitoring and responding to ongoing road activity in residential and business areas.
* In Car Video - Hybrid use of a camera used in a vehicle.
* Telepresence - Conference type solutions in business or learning institutions.
* Low Vision Magnifier - Video technology for sight impaired individuals.
SPECIFICATIONS:
| Model |
DI-SC116 |
| SYSTEM |
PAL |
| Image Size |
6.0mm opposite angles(1/3inch) |
| progressive scanning |
Yes |
| output pixels/frame rate |
1384*746(1.00M) 1296*736(0.95M) |
| Optical lenses |
22X |
| ZOOM RATIO |
22X2 |
| actual F value |
4.4~96.8mm |
| Angle of view of the actual level |
62.9(w)~3.1(t) |
| F-value |
F1.4(w)~F3.6(t) |
| Zoom speed(Manual) |
1.5s(soft) |
| Zoom speed(Tracking the preset mode) |
1.5s(soft) |
| Minimum object distance |
0.01m(w)-3m(t) |
| Minimum Illumination |
IR-CUT On 0.5lx(1/30s) 0.005lx(1/4s) |
| Manual(Far/near) |
support (soft) |
| Focus |
Wide -1m(t)-0.01m(w) |
| Day/night switch |
| Auto |
Pro.AER+ |
| Manual(On/Off) |
Support(soft) |
| Life |
| Zoom/focus/aperture |
500k loop |
| Infrared optical filter move |
50k loop |
| DSP |
| DSP CUP |
DSP-8 |
| serial port |
mode:rate , RS232: 57.6K/38.4K/19.2K/9.6K/4.8K*bps RS232C logic level:3.3V |
| Digital Slow Shutter |
Yes |
| wide dynamic range |
On/Off(default) |
| mirror image |
On/Off(default ) |
| Flip Vertical |
On/Off(default ) |
| Image Rollover |
On/Off(default ) |
| Image Freeze |
On/Off(default ) |
| Privacy masking |
On/Off(2 zone 2-D/8 zone 3-D(4/1 screen)(soft) |
| Activity detection |
On/Off |
| FNR |
Yes |
| Multi-user setting |
111 |
| Dynamic point to cancel |
Yes |
| electronic shutter |
| Auto |
1/15s-1/4ks |
| Auto(+Digital Slow Shutter ) |
1/4s-1/4ks |
| Manual |
1/4s-1/10ks |
| diaphragm |
Auto |
| Backlight compensation |
On/Off(default ) |
| White Balance |
Auto |
| horizontal resolution |
800 TVL(1280 X 960) |
| The minimum sensitivity |
| IR-cut On(1/30s) |
1.8lx |
| IR-cut Off(1/4s) |
0.02lx(1/4s) |
| condition |
F1.6(W),50 IRE |
| Sync System |
Internal/line lock(50Hz) |
| Power |
| supply voltage |
9~12V DC |
| supply current (9V DC) |
330mA(All motor does not work) |
| 450mA(Focus/zoom motor activity) |
| 650mA(Focus/zoom/infrared filter motor movement) |
| Maxim Power Consumption(9V DC) |
3.0W-5.9W |
| Video Output |
| analog output |
- |
| digital output |
YUV422,Y8bit+C8bit |
| output interface |
|
| digital output |
36pin/40pin |
| Size |
50*60*89.5mm |
| Weight |
260g |
| interface number |
3(analog: 9pin FFC/digital: 36 pin FFC&40pin MINI COAXIAL CABLE ) |
| Operating temperature (Recommend ) |
-10~60℃ |
| Storage Temperature |
-20℃~60℃ |
