Detailed Product Description
| Model: |
GP-MH310 |
Image Sensor: |
1/2.5 Type Progressive Scan MOS |
| Lens: |
10x Optical , 16x Digital Zoom |
Effective Pixel: |
1080/60P, 50P Full HD, Effective 4M Pixels |
| Dimensions: |
43.7 Mm X 44.2 Mm X 75.2 Mm |
Weight: |
180 G (6.35 Oz) |
| Minimum Illumination: |
Color: 2.0lx (1/30sec, 50IRE, F1.8) B/W: 0.1lx (1/30sec, 50IRE, F1.8) |
Scanning Mode: |
Progressive Scan |

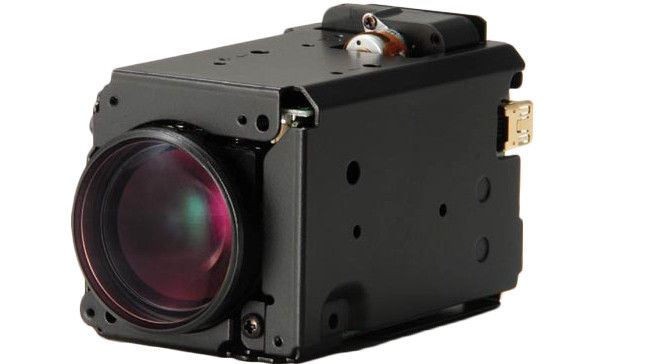

GP-MH310 Video HD Camera Module Panasonic 4M Pixels 16x Digital Zoom
Features:
* Flexible HD interface: HD (LVDS), Component Y/Pb/Pr, YC output (SD)
* Newly-developed 1/2.5 4 mega-pixels HD MOS sensor
* Image Stabilizer
* Auto Focus
* Day/Night function
* Compact Design (43.7 mm x 44.2 mm x 75.2)
* 10x Optical Zoom, 16x Digital Zoom
* Degradation-free LVDS digital transmission
Applications:
* Inspection
* Video conferencing
* Security
* Traffic control
* Un-manned vehicles
* In-car video
Competitive Advantage:
The Single Chip Full HD Module GP-MH310 Camera from Panasonic brings you outstanding HD resolution and superior color performance at the right price, and the right size for a wide variety of medical & industrial applications. With outstanding performance, the camera delivers native 1080p/60p resolution, plus multi-format capability in a compact and lightweight camera module.
Specifications:
| Video Output |
HD (LVDS) 1080/60i, 1080/30p, 720/60p 1080/50i, 1080/25p, 720/50p |
| Image Sensor |
1/2.5 type MOS |
| Effective Pixels (approx.) |
4 Megapixels |
| Scanning Mode |
Progressive Scan |
| Minimum Illumination |
Color: 2.0lx (1/30sec, 50IRE, F1.8) B/W: 0.1lx (1/30sec, 50IRE, F1.8) |
| Video S/N Ratio |
More than 50 dB |
| Synchronization |
Internal Sync |
| Electronic Shutter |
1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 |
| Focal Length |
6.3 mm ~ 63 mm, F1.8-2.5 |
| Zoom |
10x Optical Zoom, 16x Digital Zoom |
| Field of View |
H: (16:9) 5.5°~ 50.6°, V: (16:9) 3.1°~ 29.3° |
| Power Supply |
6-12V DC 3.6W (4.2W, motor active) |
| Dimensions (approx.) |
(W x H x L) 43.7 mm x 44.2 mm x 75.2 mm (1.7 inch x 1.7 inch x 2.9 inch) |
| Weight (approx.) |
180 g (6.35 oz) |
