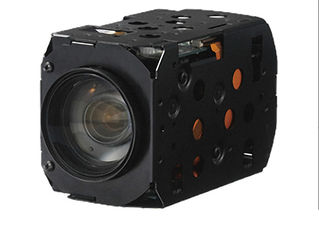

| Camera |
| Image Sensor |
1/2.8 type MOS |
| Effective Pixels (approx.) |
2 Megapixels |
| Scanning Mode |
Progressive Scan |
Minimum Illumination
(approx.) |
Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain:High)
B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain:High) |
| Video S/N Ratio |
More than 50 dB (AGC: OFF) |
| Lens Focal Length |
f=4.3 mm to 94.6 mm / F1.6 to F4.5 |
| Zoom Ration |
22x Optical zoom, 20x Digital zoom |
| Angular Field of View |
Horizontal : (16:9) 65.1° to 3.2°
Vertical : (16:9) 38.4° to 1.8° |
| Minimum working distance |
100 mm (Wide end) to 1200 mm (Tele end) |
| White Balance |
ATW / AWC / Manual (Adjustable R and B signals) / Outdoor / Indoor / Fluorescent |
| Backlight compensation |
Multi / Center / Mask / OFF |
| AGC |
Low1 / Low2 / Low / Mid1 / Mid / High1 / High / OFF (Gain adjustable) |
| Super Dynamic* |
ON / OFF *Available only when 1080/29.97p and 1080/25p. |
| Electronic Shutter |
1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/16000sec
Long shutter : x1, x2, x4, x8, x16, x32, x64, x128 |
| Electronic Sensitivity UP |
Auto / OFF (Max.128x) |
| Electronic iris |
ON / OFF |
| Iris control |
Auto / OFF (Iris level setting adjustable) |
| Day & Night (IR) |
Auto (Level: Low/Middle/High/ADJ) / Color / BW |
| Digital Noise Reduction |
ON / OFF (Level setting adjustable) |
| Gamma |
0.45 / 1 / Other settings available |
| Video Motion Detection |
ON / OFF (Adjustable sensitivities, Motion zoom function available) |
| Privacy Mask |
ON / OFF (up to 32 zones/Wide view screen, 1 screen max 8 masks) |
| Mirror/Flip Image Effect |
H / V / HV / OFF |
| Image Freeze |
ON / OFF |
| Image Stabilizer |
ON / OFF |
| Chroma Level |
Adjustable |
| Pedestal Level |
Adjustable |
| Auto Pursuit |
ON / OFF (Auto tracking works at PTZ, sensitivities adjustable) |
| Dehazing |
ON / OFF |
| OSD |
ON / OFF {40 alphanumeric characters (CameraID:20 + Title:20)} |
| Customer preset |
Yes |
| Temperature information |
Yes |
| AE response |
up to 10 minutes (Response time setting adjustable) |
| Auto Focus |
Auto / Manual / One-Push / STOP-AF
(AF Sensitivity, Speed, Near Limit, Detection area settings adjustable) |
| Aperture compensation |
ON / OFF
(Compensation amount adjustable, H/V settings independently possible) |
| Synchronization |
Internal Sync |
| Interface |
| Video |
Digital (LVDS):
1080/59.94p, 1080/59.94i, 1080/29.97p, 720/59.94p
1080/50p, 1080/50i, 1080/25p, 720/50p
Component (Y/Pb/Pr):
1080/59.94p, 1080/59.94i, 1080/29.97p, 720/59.94p, 480/59.94p
1080/50p, 1080/50i, 1080/25p, 720/50p, 576/50p
Composite (NTSC, PAL) |
| Communication |
UART (CMOS 5V) |
| General |
| Power supply |
6-12V DC (Recommendation : DC9V) |
| Power Consumption |
DC6V : 3.8W (5.8W, motor active)
DC9V : 3.9W (5.4W, motor active)
DC12V : 4.0W (5.4W, motor active) |
| Ambient Operating Temperature |
-10 °C to +60 °C (14 °F to 140 °F) |
| Ambient Operating Humidity |
20% to 90 % |
| Ambient Storage Temperature |
-40 °C to +70 °C (-40 °F to 158 °F) |
| Dimensions (approx.) |
50.0 mm (W) x 60.0 mm (H) x 94.0 mm (L)
( 1-15/16" (W) x 2-3/8" (H) x 3-11/16" (L) ) |
| Weight (approx.) |
290 g (0.64 lbs) |
