Detailed Product Description
| Property: |
PCB Board |
Applies To: |
SONY HD IP |
SONY HD CCTV Camera Board , SONY Camera Module Network IP Control Board
Advantage:
Our company research and development design of the SONY HD network control interface Board ,it is designed for SONY FCB HD camera module, it can compatible and control SONY FCB-EH3410,FCB-EH3310,FCB-EH3150,FCB-EH6300,FCB-EH6500,FCB-EV7500,FCB-EV5500,FCB-EV7100,FCB-EV7300,FCB-EV7310,FCB-EV5300 and so on camera block . This control board is widely applied to security, smart transport flight equipment and video conferencing, and other fields.
It is one of the low cost plan PTZ by SD to HD alternatives .

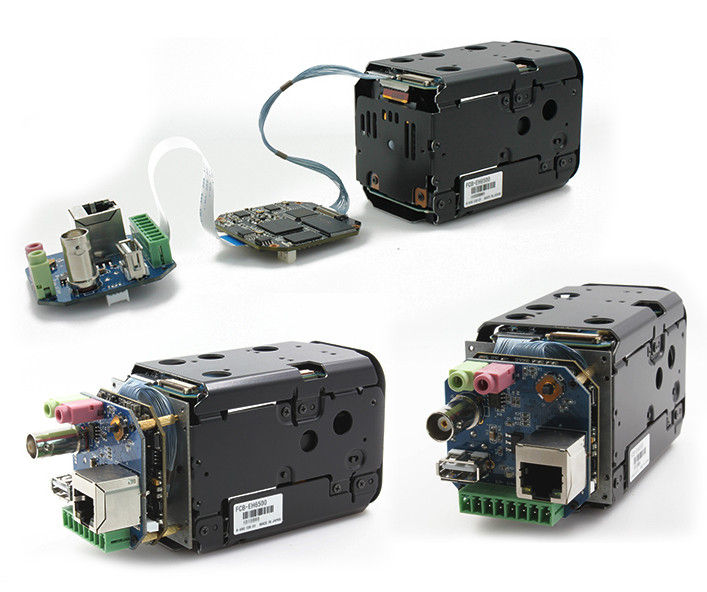

This control panel set have two PCB boards, one for network signal processing modules, one for the HD camera module control interface board.
Specification:
1.Adoption of HD integrated LVDS line access SONY FCB camera module, without any settings to the movement, you can automatically identify displays HD signals. Using high-performance, powerful programmable media TI DaVinci 368 processor, optimized H.264 compression algorithm implemented on the narrow-band high-definition image transmission, support 10-bit simultaneous users, supports ONVIF 2.0 protocol, management of centres providing free software client to facilitate management.
2.Through the buttons or IE, 485 control keyboard call up OSD menu, easy to set the technical parameters of the core module and save the parameter value. By 485 output port can control PTZ or ball up and down, left and right rotation.
3.This control panel can synchronize the output standard definition CVBS signal.
4.Outside connections infrared light, and infrared light synchronous interface, through cmaera module of the parameter setting, avoid cannot synchronize with the infrared light color to black.
5.Support RS485 control, automatic identification of PELCO-D,PELCO-P agreement, Potter is 9600bps, add 1 .
6.Support power off memory function, when a camera module parameter setting saved, after the power of the camera module, no need to set the parameters of the camera module.
7.Unique 10 presets and auto cruise function, cruising time of 5----999 seconds. (Optional).
8.Support for SONY, VISCA Protocol of camera module and Samsung HD camera.
9. Size:48MM*48MM*23MM (Contains network RJ45 socket height)
