Detailed Product Description
| Recording Frame Rate:: |
25fps/ Channel |
Resolution:: |
8ch 1080P |
| Playback:: |
4ch 720p/ 1ch 1080P Playback Simultaneously |
Video Output:: |
1ch Vga ,1ch HDMI |
| Number Of Camera:: |
4pcs |
Resolution For Camera:: |
1080p 2.0megapixel |
| IR Leds:: |
2pcs Array Leds |
Lens:: |
6mm Standard(3.6mm Optional) |

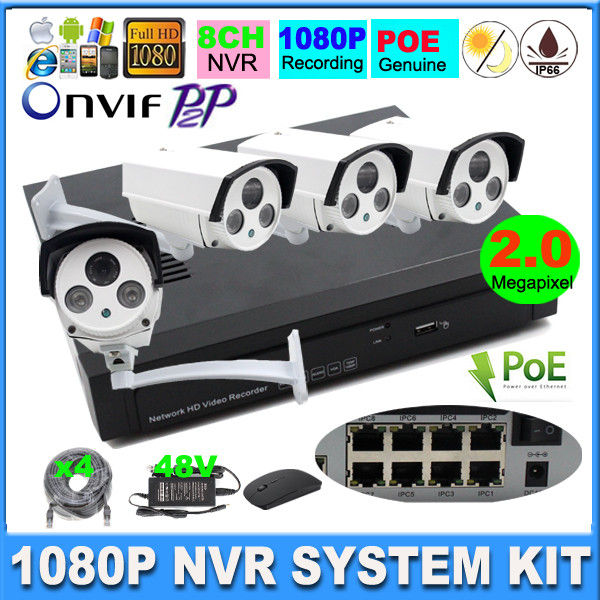

8CH 1080P Surveillance Camera System POE NVR SYSTEM Kit 2.0megapixel
Product Description
8CH FULL HD Surveillance System 1080P Security NVR 2.0 Megapixels CCTV Outdoor POE Night Vision Surveillance IP Cameras
This CCTV Systems includes a 8Channel Surveillance Security REAL POE NVR and
4pcs 2.0megapixels outdoor Weatherproof 2pcs Big Array IR LED POE Day & Night surveillance IP Cameras,
cables and power supply, providing a perfect surveillance solution for your home and business, very easy to build up.
Features for NVR
*8 Channel 48V up to 1080P 2MP HD POE NVR
*Plug&Play, child's play
*URCCTV Free PC software for NVR
*Support Quad Display & Quad Playback
*Support search, playback and backup by event
*Motion Detection Recording, Email Notification
*Support 1 SATA HDD 4TB Maximum(not included)
*Onvif compliant, working with third-party IP cameras
*DC48V POE Power supports 4pcs 80-100meters RJ45Cable
*3G, Wifi Port Ready, make it work with your 3G & Wifi Devices
*Goolink P2P cloud service, Probably the best remote view smart phone app in the world
*Language Available:Dutch, English, Chinese, French, German, Italian, Polish, Arabic, Portuguese, Russian, Spanish, Thai
Function Details
* Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction
* The dendrite menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient
* The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes
* Immediate snapshot and immediate view;the picture will be stored in an independent area in the HDD
* The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording
* Recording backup can be accurate to second. Any time period of backup is available
* The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly
* With 3G,WIFI wireless connection functions; URCCTV WIFI dongle is in stock. We can sell it with our Devices.
* Standard resolution which can be adjusted according to the display device in order to get the best image quality
* Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD
Specification
NVR |
Model Number | NVR-8P |
Operating System | Embedded LINUX operating system |
Image Code Control | Image code quality adjustable, variable bit stream and constant bit stream optional |
Dual Stream | Each channel can set main stream and sub stream |
Video Standard | 1080P(1920*1080)30fps/960P/(1280*960)/720P(1280*720)30fps |
Preview Image Quality | 1080P(1920*1080) / 960P(1280*960) / 720P(1280*720) |
Recording Playback Quality | 4ch playback in 4ch 720 mode; 1ch 1080P playback in 4ch 960P/1080P model |
Backup Way | Support Flash Drive, USB mobile HDD, USB DVD-RW. network storage and backup |
Local Login | User name and password |
Recording Storage | Local HDD |
External Ports | Video Input | 8*(1280*720) +sub[640*360]+1Ref.+4Play 8ch 1.0MP IP Camera
8*(1280*960)+sub[640*480]+4Ref.+1Play 8ch 1.3MP IP Camera
8*(1280*960)+sub[720*576]+2Ref.+1Play 8ch 1.3MP IP Camera
8*(1920*1080)+sub[640*480]+2Ref.+1Play 8ch 2.0MP IP Camera
8*(1920*1080)+sub[720*576]+1Ref.+1Play 8ch 2.0MP IP Camera |
Audio Input | 8ch network audio input |
Video Output | 1ch VGA+1ch HDMI |
Audio Output | 1ch BNC output (optional) |
Network Port | 9 RJ45, 100M LAN port, data transferring and power supply both by network cable |
USB Port | 3 USB 2.0 ports |
Wireless Port | 3G,WIFI Function Ready, you need to get extra devices to make it work |
HDD | HDD Port | 1 SATA port |
MAX Capacity | Each port supports MAX 4TB HDD |
Mobile Surveillance | Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
Power Supply | DC48V2A (support 4pcs 80-100meters RJ45Cable) |
Power Consumption | <115W (without HDD)
|
Camera |
Model | YN-IPC-BT635(POE) |
Image Sensor | 2Megapixel 1/2.8” CMOS Sensor(HI3516C) |
Effective Pixels | 1280(H)x1080(V) |
Scanning System | Progressive scan |
Min. Illumination | Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on) |
Lens | 6mm /3.6mmOptional |
IR light | 2PCS Array infrared leds |
IR distance | 5-20m |
Video |
Resolution | 1080P(1920×1080) / 720P(1280×720)/ D1(704×576) / CIF(352×288) |
Main Stream | 1080P(25fps) |
Sub Stream | 720P/D1/CIF(25fps) |
S/N Ratio | >39dB |
Compression | H.264 |
Day/Night | Auto Day&night Conversion |
Network |
Ethernet | RJ-45 connector (10Base-T / 100Base-TX) |
ONVIF | Standard ONVIF |
Smart Phone | iPhone, Android |
Browser | IE browser |
POE |
Input Voltage | 37~57V |
Standard | IEEE802.3af |
Short-circuit protection | 1500V high voltage isolation |
General |
Power Supply | POE(Power Over Ethernet) |
Power Consumption | <6W |
Working Environment | -30°C~+60°C, 10%~90% |
Material | Metallic shell |
Weight | 0.7kg |
Package list:
1x8ch 1080p real poe nvr
4x1080p 2.0mp 36pcs ir leds ip camera
4x20m lan cable
1x48v power supply
1xmouse
1x CD
1xuser manual
