Detailed Product Description
| Camera Type:: |
Bullet & Dome |
Camera Connectivity:: |
CCTV/Closed System-Wired |
| MPN:: |
AHD-KIT06 |
Number Of Cameras:: |
8 |
| Brand:: |
Unbranded/Generic |
DVR/NVR Channels:: |
8 |
| Model:: |
AHD-KIT06 |
Country/Region Of Manufacture:: |
CHINA |
| UPC:: |
Does Not Apply |
|
|
1200TVL 720P Surveillance camera system , AHD DVR Day Night IR Camera
Specification:
| |
Model
|
AHD-8HM06
|
|
System
|
Main processor
|
Hi3531
|
|
Operating system
|
embedded Linux
|
|
System resources
|
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
|
|
interface
|
User interface
|
support 16-bit true color graphical menu interface and mouse operation
|
|
Preview screen
|
1/4/8/9
|
|
Video Standard
|
PAL/NTSC(720P)
|
|
Video
|
Video compression
|
H.264(High Profile); JPEG snapshot
|
|
Display quality
|
VGA,HDMI: HD
(support 1920*1080, 1280*720,1440*900,1280*1024, 1024*768, 800*600)
|
|
Playback quality
|
1080P/720P/D1/HD1/CIF
|
|
Encode capacity
|
8*720P
|
|
Decode capacity
|
8*720P
|
|
Multi-mode
input
|
Pure analog: 8*720P/8*AHD-L
pure network: 1*1080P+8*720P/4*1080/20*960H
analog + network: 4*720P(analog) + 4*720P(network)
|
|
Motion Detection
|
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
|
|
Audio
|
Audio compression
|
G.711A
|
|
Intercom
|
support
|
|
Record & playback
|
Record mode
|
manual>alarm>motion detection>timing
|
|
Playback
|
1 ~ 9 channel playback, Local 8 * 720P mode, maximum support 8-channel playback
|
| |
Video Search
|
Time, calendar, event, channel
|
|
Storage & backup
|
Space occupation
|
Video:720P 20G / day* channel; 960H 12 ~ 20G / day * channel; Audio: 691.2M / day * channel
|
|
Video storage
|
HDD, network
|
|
Backup mode
|
Network, U-disk, USB burner, SATA burner
|
|
Interface
|
Video input
|
8ch BNC
|
|
Video output
|
1ch VGA, 1ch HDMI
|
|
Audio input
|
2ch RCA
|
|
Audio output
|
1ch RCA
|
|
Alarm input
|
0
|
|
Alarm output
|
0
|
|
Network interface
|
RJ45 10M/100M
|
|
PTZ control
|
1*RS485, Support multiple PTZ protocols
|
|
USB
|
2* USB 2.0
|
|
HDD
|
2*SATA port (Max 4TB/per)
|
|
Wireless
|
3G, WIFI (extension via USB)
|
|
other
|
Power supply
|
12V2A or 12V/4A
|
|
Power Consumption
|
<15W (without hard drive)
|
|
Temperature
|
-20-+55 degrees(No problem working in Russia Winter)
|
|
Humidity
|
10%-90%
|
|
Atmospheric pressure
|
86kpa-106kpa
|
Camera Specification:
|
Image Sensor
|
CMOS
|
|
Lens
|
6mm(3.6mm for Dome)
|
|
Video System
|
PAL / NTSC
|
|
Effective Pixels
|
P:500(H)*582(V);N:500(H)*582(V)
|
|
CCIR:752(H) x 582(v); EIA:768(H) x 494(V)
|
|
Resolution (Horizontal)
|
1200 TVL
|
|
Weatherproof
|
IP66 for Bullet (Dome Camera not waterproof)
|
|
Emitter Wave Length of LED
|
850nm
|
|
IR Series Distance
|
10 meters (24 IR LEDs ON)
|
|
IR Power ON
|
CDS automatic control
|
|
White Balance
|
Auto
|
|
Back Light Compensation
|
Auto
|
|
Min. Illumination
|
0.2Lux @ F2.0, 0 Lux (IR LED ON at night)
|
|
Electronic Shutter
|
1/50 (1/60) ~ 100,000 Sec
|
|
S/N Ratio
|
More than 48dB (AGC OFF)
|
|
Power Consumption
|
Less than 3W
|
|
Synchronization
|
Internal Sync
|
|
Gamma Correction
|
0.45
|
|
Video Output
|
1 Vp-p /75Ω
|
|
I/O Port
|
Video (BNC Jack) / Power (DC Jack)
|
|
Power Supply
|
NO with DVR Power
|
|
Operating Temperature
|
-10 ~ 80 degrees
|
What's good for this amazing new AHD Kit ?
What's good for this amazing new AHD Kit ?
- 1.Better image quality -- With 720P high definition cameras, you could get much better image at no extra cost.
- 2.One-time Upgrade,no Handache Camera-DVR match -- The new 3-IN-1 DVR allows you to connect normal analog or AHD or IP cameras.
- 3.Easy Remote View -- P2P Function: xmeye.net Remote view anywhere anytime.
- 4.Intelligent Motion Detection -- Set it up to record when there is movement.
- 5.Easy USB Backup -- A built-in USB port gives you a easier way to find a particular footage.
- 6.24h Day&Night Viewing -- Camera with IR leds for day&night continuously recording/viewing.
- 7.2 years warranty -- Top quality products, durable for use, 365 all year round working.
Feature:
Ø HD iDVR Three in one: DVR / HVR / NVR features 3-in-1, multi-mode input, support four analog video encoding, support for high-definition video mixing analog inputs + network support pure HD network video input.
Ø Step on the Internet: With XM cloud service, easy to achieve a variety of network penetrations ,one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
Ø Compression algorithm ideal: H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.
Ø Playback quality: Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
Ø Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
Ø Mobile monitor: Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).
Ø Display: support VGA, HDMI HD output.
Ø Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.
Ø Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
Ø Browsers: Support IE, Chrome, Firefox, Safari browsers.
Ø Remote Access: 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
Ø Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
Ø Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.

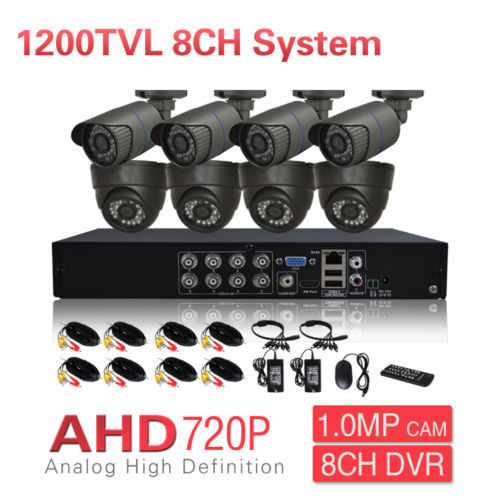

Package include:
- 1 x 8CH AHD DVR
- 1 x 12V 2A Power Supply for DVR
- 1 x Mouse
- 1 x Remote Controller
- 4 x 1200TVL Bullet Camera
- 4 x 1200TVL Dome Camera
- 8 x 60ft Cable
- 1 x 12V 5A Power supply
- 1 x 8-way Splitter
