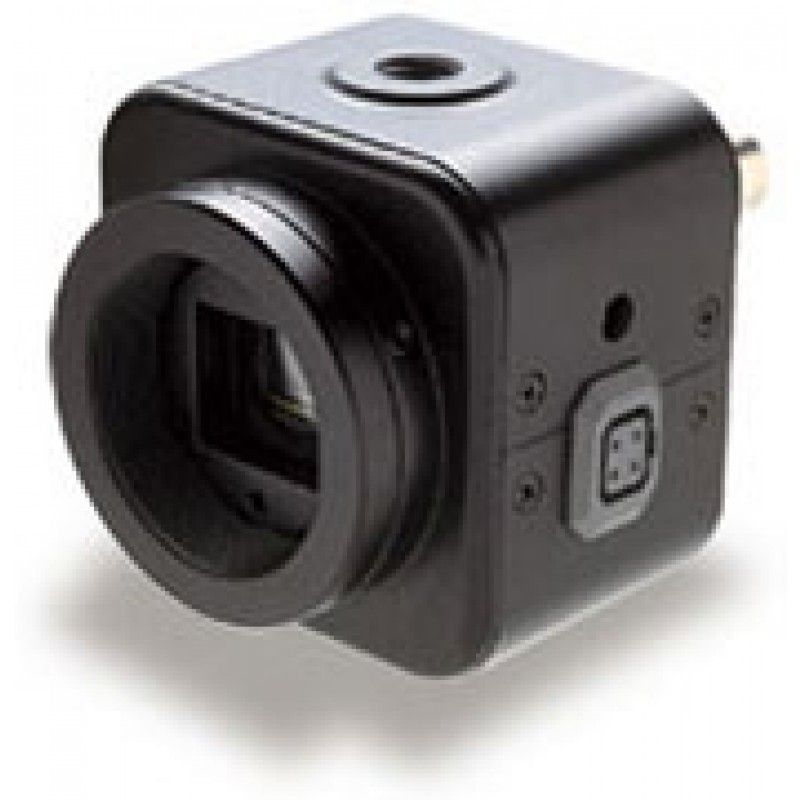

570TVL Watec CCD Camera Module

Large Image : 570TVL Watec CCD Camera Module

Product Details:

Place of Origin:	Japan
Brand Name:	Watec
Model Number:	WAT-525EX

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	300pcs / month

Detailed Product Description

Pick-up Element:	1/2" B/W IT CCD	Resolution (H):	550TVL
Minimum Illumination:	0.002 Lux	Size:	44 X 44 X 53mm
Weight:	4.6 Oz (130g)	Signal System:	EIA

B/W 570TVL Watec WAT-525EX CCD Camera Module , 1/2 CS Mount, Monochrome

Description:

The Watec WAT-525EX 1/2" 550TVL High Sensitivity & External Synch Monochrome Camera (EIA) offers high sensitivity and resolution in an ultra compact size camera (4.6 oz/ 2.1" in length). A variety of internal controls are included to ensure image quality in various lighting environments, making it ideal for security and machine vision applications.

Features:

*   1/2" Interline transfer CCD Image sensor
*   EIA Signal System
*   High Resolution: 550 TVL
*   Manual and electronic image controls
*   Super low light sensitivity 0.002 Lux
*   Internal sync. / external sync.(C. video, C. sync.)
*   Manual gain control
*   AGC
*   Shutter speed control (10 steps)
*   Video/DC iris auto-select
*   Flickerless mode
*   Back light compensation
*   Gamma correction
*   Iris level control
*   CS lens mount

Application:

It suitable for commercial applications looking for dependable yet minimally intrusive round-the-clock security monitoring.

Specification:

Specification	Details
Signal System	EIA
Image Sensor	1/2" B/W IT CCD
Number of Pixels	768 x 494
Resolution	550 Lines
Lens	Accepts CS mount lenses
Iris Operation	Auto Iris DC/Video
Minimum Illumination	0.002 Lux
IR Illumination	No
Signal-to-Noise Ratio	50dB
Controls	AGC: Hi/Lo, On/Off Back Light Compensation: On/Off Electronic Shutter: 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec
Microphone	No
Weather Resistance	No
Video Output	BNC
Audio Output	N/A
Sync System	Internal/External
Power Requirements	12VDC
Power Consumption	150mA
Operating Temperature	14 - 104°F (-10 ~ +40°C)

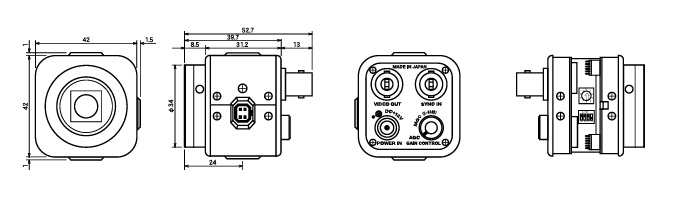

Dimensions (WxHxD)	1.7 x 1.7 x 2.1" (44 x 44 x 53mm)
Weight	4.6 oz (130g)

Watec WAT-525EX EIA 1/2inch 550TVL High Sensitivity External Synch Monochrome Camera
