Detailed Product Description
| Pick-up Element: |
1/3" Interline Transfer CCD Image Sensor |
Resolution (H): |
570TVL |
| Minimum Illumination: |
0.0001lx F1.4 |
Size: |
35.5×36×58 Mm |
| Weight: |
98g |
Signal System: |
EIA , CCIR |

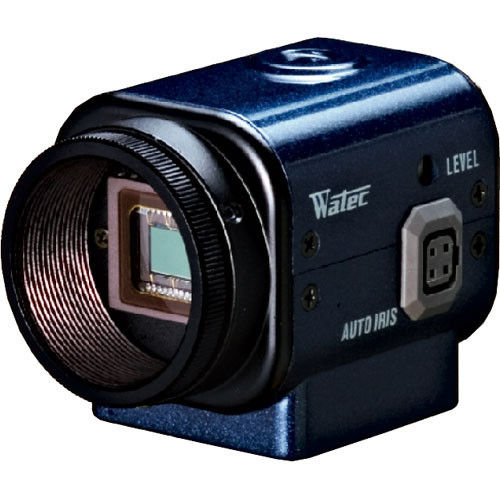

Ultra Compact Watec WAT-902H2 ULTIMATE 1/2 CCD 570TVL B/W CCTV Camera Module
Competitive Advantage :
* Ultra Compact & Lightweight Body
With a total length of about 2.5" and weighing less than 4 ounces, this is one of the smallest and lightest full featured CCTV box cameras available on the market.
* Extreme Low Light Sensitivity
The combination of a 1/2" CCD, powerful picture controls and an auto iris function allow the camera to produce visible images in light levels as low as 0.0001 lux.
Description:
The Watec WAT-902H2 ULTIMATE 1/2" Super High Sensitivity Monochrome Camera offers super high sensitivity (near IR) and high resolution in an ultra compact camera.
For the ULTIMATE models, Watec WAT-902H2 redesigned the base platform of the 902 series cameras to include higher sensitivity, better S/N ratios, more versatile shutter speed control, and fully adjustable camera functions--including manual gain control and manual back-light compensation.
Features:
* 1/2" IT CCD
* Resolution: 570 TVL
* Min. Illumination: 0.0001 Lux @ F1.4, 0.000033 Lux @ F0.8
* Near IR sensitivity
* Fully adjustable camera functions - MGC and manual BLC
* Auto Iris connection & BNC connection
* Multi-functions: Back light compensation, AGC, shutter speed control, flickerless mode, electronic iris, iris level control
* Compact and Lightweight: 3.5 oz. (98g)
* CS lens mount
* Minimum Illumination (Lux): 0.0003Lux F1.4 (AGC: High),
* Automatic automatic gain control (dB) High :5-50 Low5-32,
* SNR (dB): 46,
* Gradation characteristics: γ ≒ 0.45;
* Watec WAT-902H2 good performance .
Specification:
| Model |
WAT-902H2 ULTIMATE (EIA) |
WAT-902H2 ULTIMATE (CCIR) |
| Pick-up element |
1/2 inch interline transfer CCD image senso |
| Number of total pixels |
811(H) × 508(V) |
795(H) × 596(V) |
| Number of effective pixels |
768(H) × 494(V) |
752(H) × 582(V) |
| Unit cell size |
8.4μm(H) × 9.8μm(V) |
8.6μm(H) × 8.3μm(V) |
| Synchronizing system |
Internal |
| Scanning system |
2:1 interlace |
| Video output |
Composite Video, 1Vp-p, 75ohms, unbalanced |
| Resolution (H) |
570TVL (Center) |
| Minimum illumination |
0.0001lx F1.4 |
| S/N |
More than 50dB (AGC=5dB,γ=1.0) |
| AE mode |
Fixed |
1/60, 1/100 sec. |
1/50, 1/120 sec. |
| 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec |
| EI |
1/60 - 1/100000 sec.
1/100 - 1/100000 sec.
|
1/50 - 1/100000 sec.
1/120 - 1/100000 sec.
|
| AGC |
HI: 5 - 60dB / LO: 5 - 32dB |
| MGC |
5 - 60dB |
| Gamma characteristics |
≒0.35(HI) /γ≒0.45(LO) /γ=1.0(OFF) |
| Lens-iris |
Video / DC (EIAJ arrangement, Auto-select) |
| Back light compensation |
ON / OFF |
| Power supply |
DC+12V±10% |
| Power consumption |
1.32W (110mA) |
| Operating temperature |
-10°C-＋40°C |
| Storage temperature |
-30°C-＋70°C |
| Operating / Storage humidity |
Less than 95% RH (Without condensation) |
| Lens mount |
CS mount |
| Weight |
Approx. 98g |
| SizeW×H×L(mm) |
35.5×36×58 |
