Detailed Product Description
| Pick-up Element: |
1/3" CCD |
Resolution (H): |
570TVL |
| Minimum Illumination: |
0.0005Lux F1.4(AGC:High) |
Size: |
35.5×36×58mm |
| Weight: |
90G |
Signal System: |
EIA , CCIR |

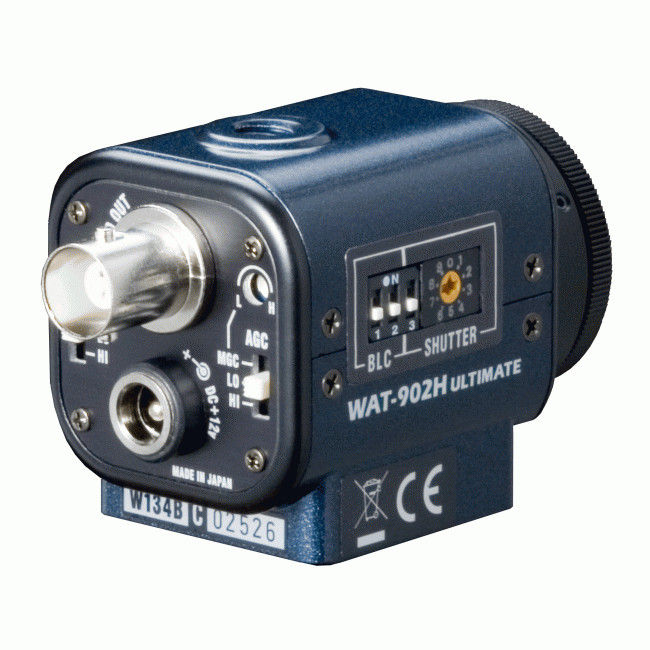

Miniature Watec WAT-902H3 Super High Sensitivity Monochrome CCD Camera Module
Description:
The Watec WAT-902H3 Supreme is an ultra compact, high performance CCTV camera capable of producing and maintaining the level of image quality expected in critical 24-hour security environments. This is achieved through the use of a 1/3" CCD along with a number of internal electronic controls and an auto iris function. These outstanding capabilities coupled with the camera's absolutely small size make it a particularly wise choice for applications requiring dependable yet minimally intrusive round-the-clock security monitoring.
Competitive Advantage :
* Ultra Compact & Lightweight Body
With a total length of about 2.5" and weighing less than 4 ounces, this is one of the smallest and lightest full featured CCTV box cameras available on the market.
* Extreme Low Light Sensitivity
The combination of a 1/3" CCD, powerful picture controls and an auto iris function allow the camera to produce visible images in light levels as low as 0.0002 lux.
Features:
* 1/3" IT CCD
* Resolution: 570 TVL
* Min. Illumination: 0.0002 Lux @ F1.4, 0.000033 Lux @ F0.8
* Near IR sensitivity
* Fully adjustable camera functions - MGC and manual BLC
* Auto Iris connection & BNC connection
* Multi-functions: Back light compensation, AGC, shutter speed control, flickerless mode, electronic iris, iris level control
* Compact and Lightweight: 3.5 oz. (98g)
* CS lens mount
Specification:
| Model |
WAT-902H3 Supreme(EIA) |
WAT-902H3 Supreme(CCIR) |
| Image sensor |
1/3 inch interline transfer CCD image sensor |
| Number of total pixels |
811(H) × 508(V) |
795(H) × 596(V) |
| Number of effective pixels |
768(H) × 494(V) |
752(H) × 582(V) |
| Unit cell size |
6.35μm(H) × 7.4μm(V) |
6.5μm(H) × 6.25μm(V) |
| Synchronizing system |
Internal |
| Scanning system |
2:1 interlace |
| Video output |
Composite Video, 1Vp-p, 75ohms, unbalanced |
| Resolution(H) |
570LVL |
| Minimum illumination |
0.0005Lux F1.4(AGC:High) |
| Gain control |
High:5~50 Low:5~32 |
| S/N ratio |
46dB |
| Gamma characteristics |
γ≒0.45 |
| AE mode |
Fixed |
1/60, 1/100 sec. |
1/60, 1/100 sec. |
| EI |
1/60 - 1/100000 sec. |
1/50 - 1/100000 sec. |
| AGC |
HI: 5 - 50dB / LO: 5 - 32dB |
| Auto Iris Lens |
VIDEO/DC |
| Lens mount |
CS |
| Power supply |
DC+12V~±10% |
| working current(mA) |
160 |
| Storage Temperature (℃) |
-30~+70 |
| Operating Temperature (℃ ) |
-10~+40 |
| Outside Size W×H×L(mm) |
35.5×36×58 |
| Weight(G) |
90 |
