Detailed Product Description
| Image Device: |
2/3 Type Progressive Scan IT CCD |
Number Of Effective Pixels: |
2448x2048 |
| Memory Channel: |
16 Channels |
Readout Modes: |
Normal / Partial Scan |
| Size: |
44 X 33 X 67.5mm |
Lens Mount: |
C Mount |

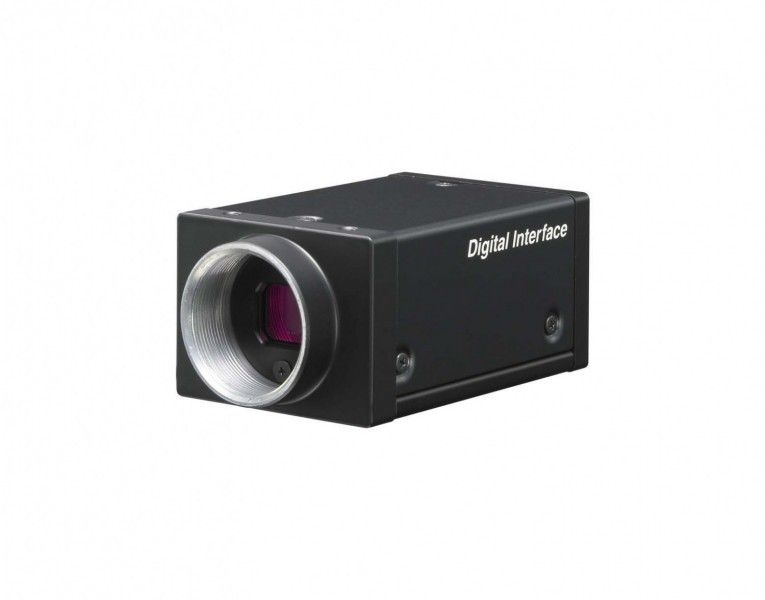

5MP Industrial Camera Systems SONY XCG-5005CR CCD Raw Color GigE Camera
SONY XCG-5005CR Camera
Sony is expanding its high-performance XCG GigE camera line-up with the addition of of the new high speed, raw color model – the XCG-5005CR. Featuring Full Progressive Scan, Complementary Color Mosaic Color Filter, and High Sensitivity, the new XCG-5005CR high speed GigE camera is ideal for Intelligent Traffic, Machine Vision, and Industrial applications.
Sony proudly introduces two new raw color GigE cameras to its popular XCG Series: the high-quality, high-performance XCG-5005CR and XCG-U100CR.
SONY XCG-5005CR Camera HIGHLIGHTS:
* 2/3 type Progressive Scan IT CCD
* 8/10/12 bits/pixel
* GigE Vision Compliance (Ver 1.20)
* 2448 x 2048 pixels
* 15 fps
* High Sensitivity - 2000 lux @ F8 (o dB)
* Compact & Lightweight: 44 x 33 x 67.5 mm (1 3/4 x 1 5/16 x 2 3/4 inches), 145g (less than 5 3/4 oz)
* Partial Scanning & Binning Functions
* High Shock and Vibration Resistance
Features:
* GigE Vision Interface
The adoption of the GigE Vision interface (Ver. 1.2) adds to the outstanding value and performance of the XCG-5005CR and the XCGU100CR cameras. Answering the growing demand for large-scale systems, they can transfer large amounts of data over long distances (up to 100 meters). In addition, the overall cost of a vision system can be reduced with these cameras thanks to the availability of a variety of peripheral devices.
* High Frame Rate Image Transfer
The XCG-5005CR and the XCGU100CR cameras feature a high readout rate of uncompressed images for smooth and clear results. The XCG-5005CR achieves 15fps and the XCG-U100CR achieves 27fps.
* Bulk Trigger Mode/Sequential Trigger Mode
In addition to its conventional trigger mode, the XCG-5005CR and the XCG-U100CR cameras also feature advanced “Bulk Trigger” and “Sequential Trigger” modes. Both cameras support 16 memory channels that can store up to 16 different camera setups (exposure, gain, LUT). “Bulk Trigger” mode allows the XCG cameras to capture up to 16 images in rapid succession using a single software or hardware trigger. “Sequential Trigger” mode allows the camera to capture a single image using successive setups stored in the memory channels with each software or hardware trigger.
* Low Power Consumption and Compact Design
These compact, lightweight cameras feature low power consumption, and the ability to operate at temperatures of up to 50°C / 122°F
* High Resistance to Shock and Vibration
Due to their robustness and vibration resistance, the XCG cameras deliver outstanding performance in the most challenging environmental conditions.
Specification:
| Sensor Type |
CCD Progressive Scan |
| Sensor Size |
2/3" |
| Resolution |
2448x2048 |
| Frame rate |
15 fps |
| Image Sensor |
2/3 type progressive scan It CCD |
| Shutter speed |
Manual (2 to 1/100,000s) |
| Power requirements |
+12 Vdc (+10.5 to +15 Vdc) |
| Operating temperature |
-10° C~ +50° C |
| Dimensions (W x H x D) |
44 x 33 x 67.5 |
| Cell size |
3,45 x 3,45 µm |
| Gain control |
Manual (0 to +18dB) / auto |
| Resolution Depth |
8/10/12 bits /pixel (Raw data or B&W) |
| Readout modes |
Normal / Partial scan |
| Memory channel |
16 channels |
| Digital interface |
1000 BASE-T (GIGe Vision compatible) |
| Standard picture size (H x V) |
2448 x 2048 |
| Lens mount |
C mount |
| Standard frame rate |
15 fps |
| External trigger |
Hardware/Software, Pulse-edge, Pulse-width, Special (Bulk/Sequential) |
| Synchronisation, I/Os |
2 inputs, 2 outputs (trigger delay, Strobe control support) |
| Special features |
One Push White Balance / Manual |
| Applications |
High-end Security and Factory automation |
