Detailed Product Description
| Image Device: |
1/3 Type Progressive Scan IT CCD |
Output Image Size: |
640 X 480 (VGA) |
| Image Memory: |
16 MB |
Digital Interface: |
IEEE 1394b-2002 X 2, Bilingual (screw Lock Possible) |
| Size: |
44 X 33 X 57.5 Mm |
Lens Mount: |
C Mount |

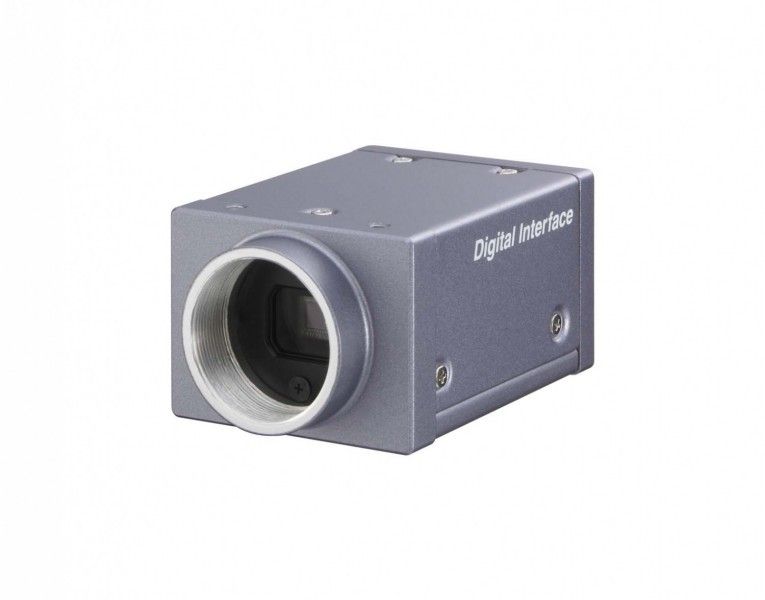

SONY Raw Color Industrial Camera Systems Sony XCD-V60CR Color FireWire Camera
Description:
Sony's new line up of 1394.b cameras, with a number of resolutions and frame rates to choose from, has made selecting the right camera for machine vision applications easy. The new XCD-V60CR camera incorporates a 1/3 type Progressive Scan CCD and achieves up to 90 fps at VGA resolution. By utilizing the IEEE 1394.b interface that supports the IIDC protocol, users can transfer images to a host PC at speeds of up to 800 Mb/s. Moreover, because multiple cameras can be connected in a daisy-chain configuration, users can enjoy the benefits of simplified operation in a multi-camera system. The XCD-V60CR is ideal for industrial machine-vision applications such as object recognition, inspection, measurement, alignment and more
SONY XCD-V60CR Camera Highlights:
* 1/3-type Porgressive Scan Color Raw CCD
* IEEE 1394b Digital Interface
* Up to 90 fps at VGA Resolution
* Multi-Connection Capability
* Multi-Trap Function
* Broadcast Delivery
* Various Frame Rates for High Speed Capturing
* Supports IIDC Protocol
* Built-in Real-time 3X3 Image Pre-Processing Filter
* High Shock and Vibration Resistance
* Compact and Lightweight
* Unique Feature - Ext. Dynamic Range
Specification:
| Image Device |
1/3 type Progressive Scan IT CCD
|
|
Output Image Size (H x V)
|
640 x 480 (VGA)
|
| Unit Cell Size |
7.4 um x 7.4 um |
| Lens Mount |
C Mount |
| Resolution Depth |
RAW 8: 8 bits/pixel
RAW 16: 10 bits/pixel |
| Transfer Rate |
800 / 400 / 200 / 100 Mb/s |
| Digital Interface |
IEEE 1394b-2002 x 2, bilingual (screw lock possible) |
Max. Frame Rate
(at full resolution) |
90 fps |
| Gain Control |
Manual 0 to 18 dB, Auto gain |
| Lens Mount |
C Mount |
| Shutter Speed |
1/100,000 to 16s, Auto shutter |
| External Trigger Shutter |
Trigger start (Mode 0), Trigger start and exposure duration (Mode 1), Programmable Trigger (via the IEEE 1394 bus), Trigger inhibit setting, Trigger/Strobe delay setting, Single/Bulk trigger mode |
| Image Memory |
16 MB |
| Memory Channel |
15 channels for parameter settings |
| Broadcast Delivery |
Camera setting, Software trigger via IEEE 1394 bus |
| Readout Features |
Partial Scanning, LUT, Bayer Pattern Arrangement, AWB |
| Power Requirements |
DC 8 to 30V (via IEEE 1394b 9-pin cable or 12-pin camera cable) |
| Power Consumption |
2.8 (typ.) |
| Dimensions (WxHxD) |
44 x 33 x 57.5 mm (1-3/4 x 1-5/16 x 2-3/8 inches)
(not including protruding parts) |
| Mass |
140 g (5.0 oz) |
| Operating Temperature |
-5 to 45°C (23 to 113° F) |
| Storage Temperature |
-30 to 60°C (-22 to 140° F) |
| Operating Humidity |
20 to 80% (no condensation) |
| Storage Humidity |
20 to 95% (no condensation) |
| Vibration Resistance |
10 G (20 Hz to 200 Hz) |
| Stock Resistance |
70 G |
| Supplies Accessories |
Lens Mount Cap (1), Operating Instructions |
