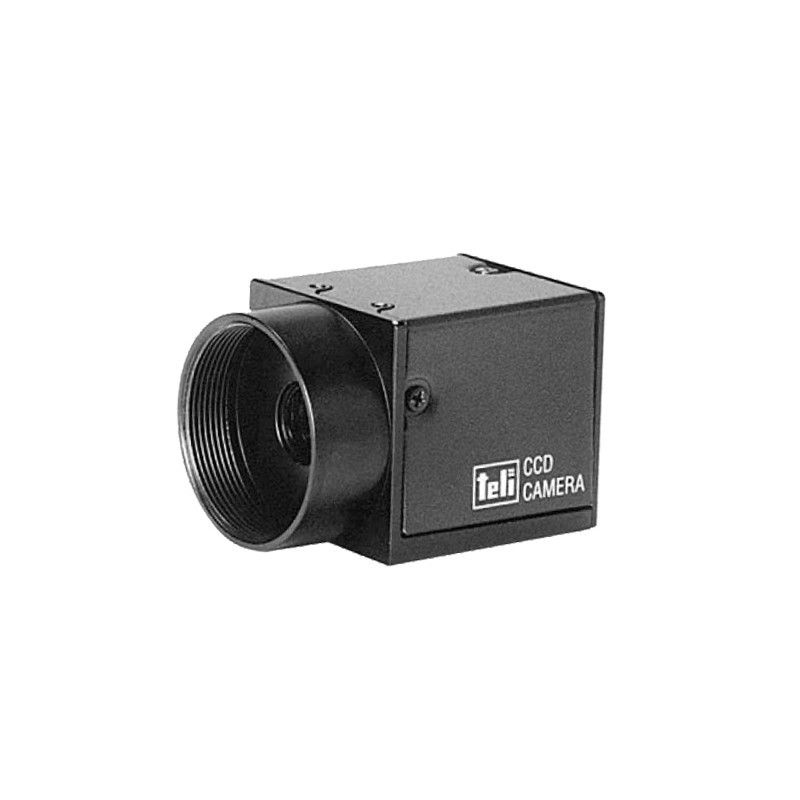

Toshiba Industrial Camera Systems

: Large Image : Toshiba Industrial Camera Systems

Product Details:

Place of Origin:	Japan
Brand Name:	Toshiba Teli
Model Number:	CS8630BI

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	100pcs/month

Detailed Product Description

Image Sensor:	Interline CCD	Lens Mount:	C-Mount
External Dimensions:	29(W) X 29(H) X 31(D)mm	Weight:	Approx. 50g
Effective Pixels:	768 X 494	TV System:	EIA/CCIR

Toshiba Industrial Camera Systems Teli CS8630BI Ultra Compact lightweight CCD Camera

Features:

*   Ultra-compact and light-weight body (29 x 29 x 30mm, Approx.50g).
*   High resolution
*   High S/N 60dB
*   Electronic shutter
*   AGC (Automatic Gain Control)
*   Restart/Reset
*   SS (Special shutter) and RTS (Random trigger shutter)
*   External synchronization

Description:
This series is an integrated type B/W CCD camera having an ultra compact and lightweight body. Thanks to the miniaturization to the maximum, this model is enabled to fit into tight spaces, which would have been impossible to do with conventional models.

Applications:

*   Factory Automation
*   Robotics
*   Metrology
*   Rework Stations
*   Motion Analysis
*   Elevator Monitoring

Specification:

	CS8630Bi	CS8630BCi
TV system	EIA	CCIR
Image sensor	Interline CCD
Effective pixels	768(H) x 494(V)	752(H) x 582(H)
Scanning Lines	525 Lines	625 Lines
Scanning Frequency	Horizontal: 17.734kHz, Vertical: 59.94Hz	Horizontal: 15.625kHz, Vertical: 50.0Hz
Sync Method	Internal/External Automatic Switch-Over
Scanning Area	4.8(H) x 3.6(V) mm (1/3” Type)	4.8(H) x 3.6(V) mm (1/3” Type)
Sensitivity (standard)	200 lx. F5.6	200 lx F5.6
Sensitivity (Minimum)	0.2 lx. F1.4	0.2 lx F1.4
Video Output	VS:1.0V (p-p) / 75Ω
Resolution	570TV lines (Horizontal)	560TV lines (Horizontal)
S/N	60 dB (Standard)
Power Source	DC12V±10%
Power Consumption	Approx. 1.3W
Lens Mount	C-Mount
External Dimensions	29(W) x 29(H) x 31(D)mm
Weight	Approx. 50g
