FCB-EX45CP CCTV Camera Module 380000 pixels CCD Colour Video Box

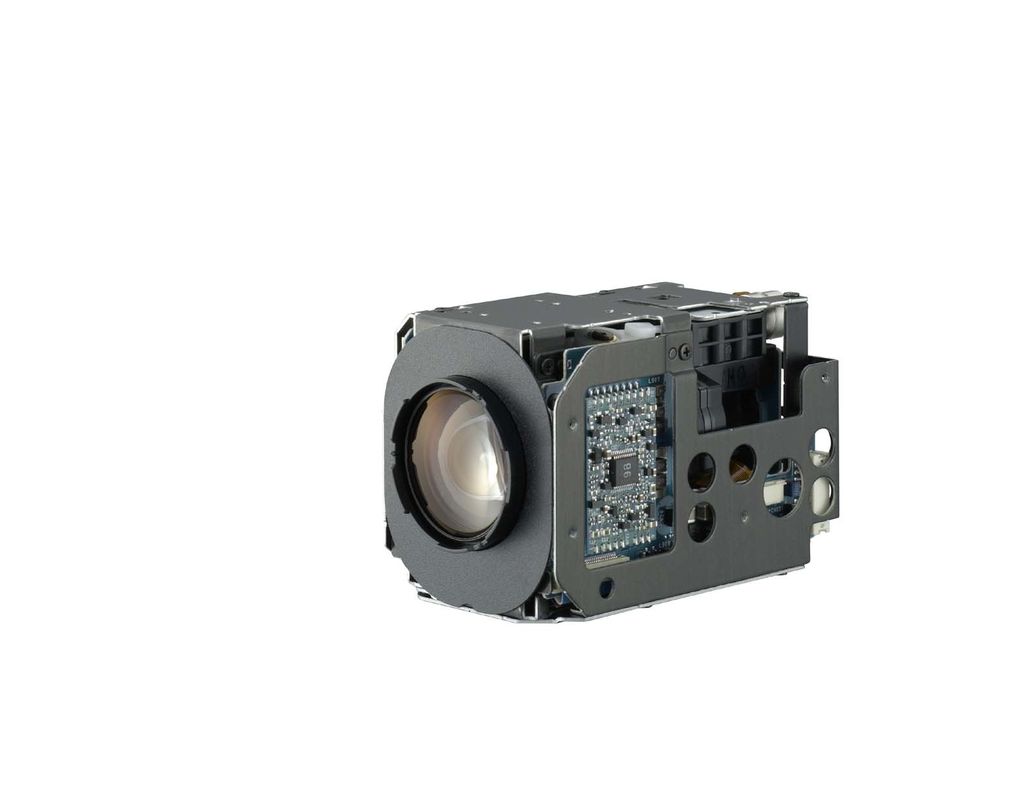

: Large Image : FCB-EX45CP CCTV Camera Module 380000 pixels CCD Colour Video Box

Product Details:

Place of Origin:	Japan
Brand Name:	SONY
Model Number:	FCB-EX45CP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	200pcs / month

Detailed Product Description

Sensor:	1/4 Type Super HAD	Effective Pixels:	Approximately 440,000 Pixels
Lens:	18x	Digital Zoom:	12x
Size:	52.0 X 57.5 X 88.5 Mm	Weight:	Approx. 230G
Color:	Black

FCB-EX45CP CCTV Camera Module 380000 pixels CCD Colour Video Box

Feature:

*    1/4 type Super HAD CCD
*    Minimum Sensitivity of 1.0 lux (50 IRE)
*    216x total optical zoom (18x optical zoom/ 12x digital)
*    380,000 pixels (NTSC)
*    High-speed serial communication (max. 38.4 kbps) and TTL signal-level control (VISCA? protocol) for

quick command processing
*    Programmable factory preset
*    Various AE modes including zoom trigger and interval mode
*    Various AF modes including spot AE mode to optimize the brightness within a specific area
*    Various customizable settings
*    Low power consumption (minimum 1.6 W)
*    EEPROM backup system without battery
*    Lead-free solder mounting board

Specifications:

Image Device	1/4 type Super HAD
Signal System	PAL
Effective Pixels	Approximately 440,000 pixels
Lens	18x zoom, f=4.1mm (wide) to 73.8 mm (tele), F1.4 to F3.0
Angle of view (H)	48° (wide end) to 2.8° (tele end)
Digital zoom	12x (216x with optical zoom)
Minimum working distance	290mm (wide end) to 800mm (tele end)
Zoom movement speed	Optical WIDE to Optical TELE 2.1 sec
Focus movement speed	Far to Near 0.5 sec
Sync system	internal/External (V-Lock)
Horizontal Resolution	460TV Line
Minimum illumination	1.0 lx (typical) (50 IRE)
Minimum illumination ICR-ON	N/A
Auto ICR Mode	N/A
S/N ratio	More than 50 dB
Electronic shutter	1/1 to 1/10,000 sec., 22 steps
White balance	Auto, ATW, Indoor, Outdoor, One-Push, Manual
Gain	Auto/Manual (-3 to 28 dB, 2dB steps)
AE control	Auto, Manual, Priority mode, Bright, EV compensation, Back light compensation
Extend Dynamic Range (Wide-D)	N/A
Day/Night	Auto / Manual
EV compensation	-10.5 to 10.5dB, 1.5dB steps)
Back-light compensation	On/Off
Privacy zone masking	On/Off (24 positions)
Character Generator	Title display 1 lines
Flicker cancel	N/A
Focusing system	Auto (Sensitivity : Normal, Low), One-Push AF, Manual, Infinity, Interval AF, Zoom Trigger AF
Picture effects	Black & White
Camera Operation Switch	N/A
Video output Analog	VBS: 1.0Vp-p (sync negatibve), Y/C Output
Camera control interface	VISCA™ (TTL signal level), baud rate: 9.6Kb/s, 19.2Kb/s, 38.4Kb/s, Stop Bit: 1/2 selectable
Power Requirements	6V to 12V DC
Power Consumption	1.5W (motors inactive) / 2.5W (motors active)
Operating Temperature	0° to 50° C
Storage Temperature	-20° to 60°C
Mass	Approximately 230g
Dimensions	52.0 x 57.5 x 88.5 mm
