Detailed Product Description
| Sensor: |
1/4 Type Super EXview HAD CCD |
Effective Pixels: |
Approximately 440,000 Pixels |
| Lens: |
18x Optical Zoom |
Digital Zoom: |
12x |
| Horizontal Resolution: |
460TV Line |
Size: |
52.0 X 57.5 X 88.5 Mm |
| Weight: |
Approximately 230g |
|
|

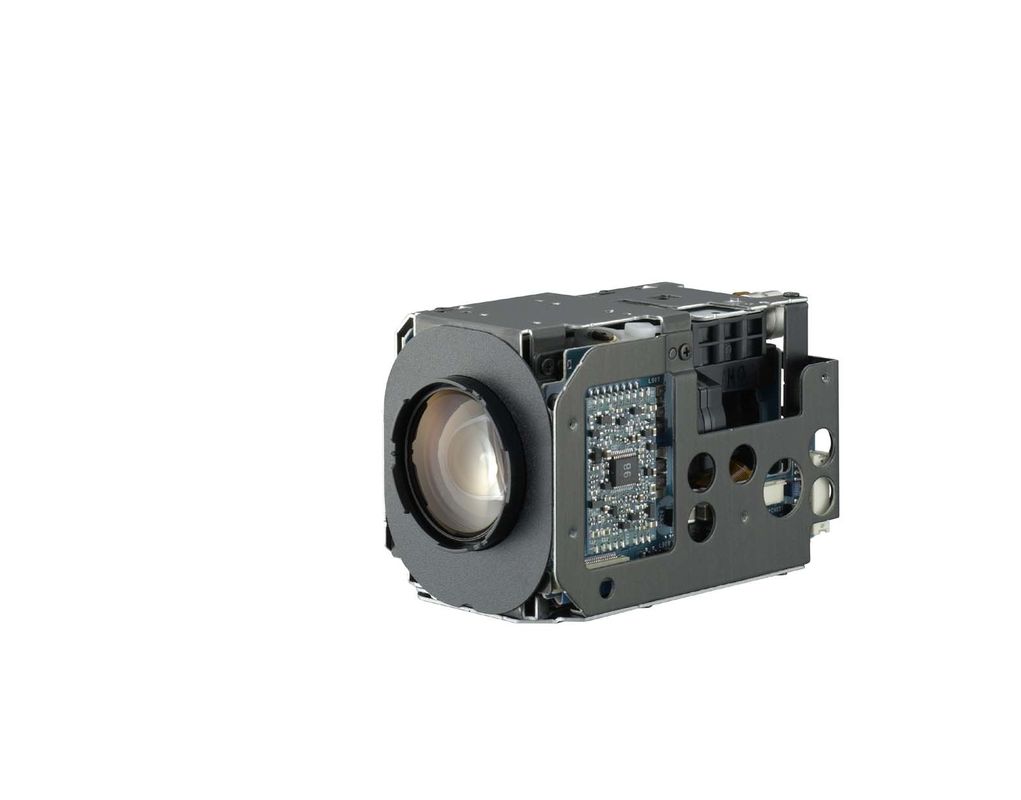

18x Optical Zoom Camera Module FCB-EX48CP Colour , CCD Sony Camera
Feature:
* Advanced Spherical Privacy Zone Masking function
(max. 24 masking blocks)
* SMART lens control
(Sony Modular Automatic Lens Reset Technology)
* Electronic-Flip (E-Flip) function
* Alarm function
* High-performance Digital Signal Processing (DSP)
* High-speed serial interface (max. 38.4 Kb/s) with TTL signal-level control (VISCA? protocol)
* Equipped with key switch connector (CN601) for camera control with external equipment
* Various customisable settings
* Internal/External sync
* Low power consumption (1.6 W with motors inactive)
* EEPROM backup system without battery
* 16-bytes of free memory is available for recording data such as product serial numbers and camera/system ID numbers
* Lead-free solder and halogen-free printed-circuit boards
Discription:
This FCB-EX48CP camera is an evolution in security dome, remote presence and traffic monitoring applications. The FCB-EX48CP is equipped with new and unique surveillance features compared to previous FCB models such as an E-flip function that electronically flips the picture for correct image display and an alarm function that enables changes to be detected within any given area of the picture. In addition, this camera features an improved Privacy Zone Masking function compared to previous FCB models for sophisticated masking privacy control - a necessity in many surveillance applications. Combining superb picture quality that you expect from Sony FCB cameras and a variety of unique and convenient features, this new FCB-EX48B camera is the perfect match for demanding indoor and outdoor surveillance applications.
Adding to its superb flexibility and easy operation, the FCB-EX48CP camera incorporates familiar and convenient features such as Spot AE, quick camera control via a high-speed serial interface (max. 38.4 Kb/s), and various customizable settings.
Applications:
* Drone Camera
* Pipe Inspection
* Underwater Applications
* Medical Applications
* Broadcast Camera
* Supermarket or stores
* Urban road
Specifications:
| Image Device |
1/4 type Super EXview HAD CCD |
| Signal System |
PAL |
| Effective Pixels |
Approximately 440,000 pixels |
| Lens |
18x zoom, f=4.1mm (wide) to 73.8 mm (tele), F1.4 to F3.0 |
| Angle of view (H) |
48° (wide end) to 2.8° (tele end) |
| Digital zoom |
12x (216x with optical zoom) |
| Minimum working distance |
290mm (wide end) to 800mm (tele end) |
| Zoom movement speed |
Optical WIDE to Optical TELE 2.1 sec |
| Focus movement speed |
Far to Near 0.5 sec |
| Sync system |
internal/External (V-Lock) |
| Horizontal Resolution |
460TV Line |
| Minimum illumination |
0.7 lx (typical) (50 IRE) |
| Minimum illumination ICR-ON |
N/A |
| Auto ICR Mode |
N/A |
| S/N ratio |
More than 50 dB |
| Electronic shutter |
1/1 to 1/10,000 sec., 22 steps |
| White balance |
Auto, ATW, Indoor, Outdoor, One-Push, Manual |
| Gain |
Auto/Manual (-3 to 28 dB, 2dB steps) |
| AE control |
Auto, Manual, Priority mode, Bright, EV compensation, Back light compensation |
| Extend Dynamic Range (Wide-D) |
N/A |
| Day/Night |
Auto / Manual |
| EV compensation |
-10.5 to 10.5dB, 1.5dB steps) |
| Back-light compensation |
On/Off |
| Privacy zone masking |
On/Off (24 positions) |
| Character Generator |
Title display 1 lines |
| Flicker cancel |
N/A |
| Focusing system |
Auto (Sensitivity : Normal, Low), One-Push AF, Manual, Infinity, Interval AF, Zoom Trigger AF |
| Picture effects |
E-Flip, Nega. Art, Black & White, Mirror Image |
| Camera Operation Switch |
Zoom tele, Zoom wide |
| Video output Analog |
VBS: 1.0Vp-p (sync negatibve), Y/C Output |
| Camera control interface |
VISCA™ (TTL signal level), baud rate: 9.6Kb/s, 19.2Kb/s, 38.4Kb/s, Stop Bit: 1/2 selectable |
| Power Requirements |
6V to 12V DC |
| Power Consumption |
1.5W (motors inactive) / 2.5W (motors active) |
| Operating Temperature |
0° to 50° C |
| Storage Temperature |
-20° to 60°C |
| Mass |
Approximately 230g |
| Dimensions |
52.0 x 57.5 x 88.5 mm |
Competitive Advantage:
* E:Flip Function (electronic flip)
* 18x optical / 12x digital zoom
* Alarm Function
* Day/Night Mode
* Picture Freeze during zoom, focus, preset and lens initializing
* Key switch connector (CN701) and DC/Video Connector (CN903)
* Privacy Zone Masking
* Spot AE
* High-speed serial interface (max. 38.4 kb/s)
* TTL signal-level control (VISCA control)
* Various factory presets
* Internal/External sync
* Lead-free solder, halogen free mounting boards, and low power consumption (min. 1.6W with inactive motors)
