Detailed Product Description
| Image Sensor: |
Approx. 440,000 Pixels |
Minimum Illumination: |
0.4 Lx (F1.4, ICR Off) |
| Lens: |
18x Optical Zoom |
Digital Zoome: |
12x |
| Dimensions: |
50.0 X 57.5 X 88.5 Mm |
Weight: |
Approx. 230 G |

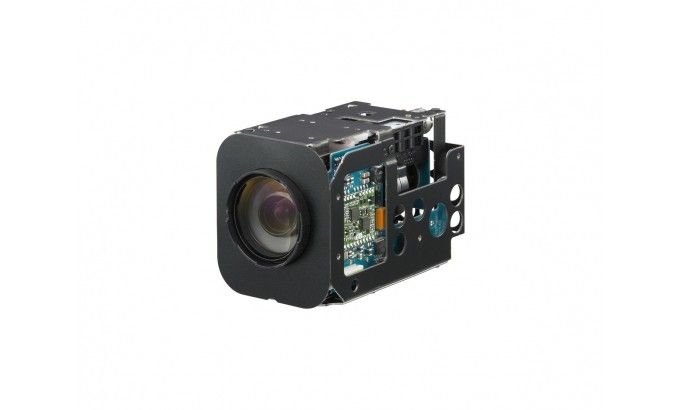

FCB-EX48EP SONY Camera Module High Resolution PAL Effective Pixels
Description
Although primarily designed largely for indoor applications or for environments where adequate lighting is provided, when combined with the Interlaced Scan sensor, the FCB-EX48E/P can operate at a minimum illumination
of 0.4 lx (F1.4 measured at 50IRE). The picture quality at low light is further enhanced via the combined
2D/3D superior Enhanced Noise Reduction capability – which provides 5 levels of adjustment in order to
select the most desirable image in low light. Such low light performance benefits allow additional flexibility
when considering the FCB-EX48E/P camera for applications where budgets are restrictive.
The FCB-EX48E/P incorporates a number of upgrades and new features compared with the extremely successful FCB-C and FCB-D series modules in order once again drive the standard for industrial camera
block technology.
The FCB-EX48E/P is available in both PAL (FCB-EX48EP) and NTSC (FCB-EX48E) and adopts a number
of new features designed for the digital age, including a digital output option, supporting the future demands of digital video infrastructure.
In order to meet a wider range of applications, the FCB-EX48E/P also comes equipped with evermore sophisticated additional specifications and features, including a wider operating temperature range,
temperature readout, Colour Enhancement and Slow AE Response (beyond 10 minutes) as well as other features inherited from earlier FCB EX series cameras. These and other features whilst making the FCB-EX48E/P the ideal choice for indoor video surveillance applications, also enable the camera to be perfectly
suited to other applications, such as low vision systems and inspection
Feature
* Excellent High Resolution Picture Quality
* Digital Output
* Enhanced Noise Reduction
* Compact and Lightweight Design
* Low Power Consumption
* Advanced Spherical Privacy Zone Masking
* Electronic Flip (E-Flip)
* Multi-line On-screen Display
* Video Motion Detection
* Picture Freeze
* SMART (Sony Modular Automatic Lens Reset Technology)
* Gain Limit Setting
* Zoom Limit Setting
* Zoom Speed-up in Zoom Direct Mode (Focus Trace On/Off)
* Focus Compensation in ICR Mode
* Alarm Signal Output in Auto ICR Mode
* Image Stabilization Hold
Specifications
| Image Sensor |
1/4-type EXview HAD CCD IT |
| Signal System |
Approximately 440,000 pixels |
| Effective Pixels |
PAL |
| Lens |
18x optical zoom, F1.4 to F3.0 - f = 4.1mm to 73.8mm |
| Angle of view (H) |
48.0° (wide end) to 2.8° (tele end) |
| Digital zoom |
12x (216x with optical zoom) |
| Minimum working distance |
10mm (wide), 800mm (tele) |
| Image Stabilization |
No |
| Zoom movement speed |
Optical WIDE to Optical TELE 4.0 sec |
| Focus movement speed |
Far to Near 1.0 sec |
| Sync system |
Internal / External (V-lock) |
| Horizontal Resolution |
550TV Line |
| Minimum illumination |
1.0 lx (typical) (F1.35, 50 IRE) |
| S/N ratio |
More than 50 dB |
| Electronic shutter |
1/1 to 1/10,000 s, 22 steps |
| White balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual |
| Gain |
Auto / Manual (-3 to 28 dB, 2dB 16 steps) |
| Slow AE response |
Yes (Longer than 10 minutes) |
| Slow shutter |
Yes |
| AE control |
Auto, Manual, Priority mode, Bright, EV compensation,Back-light compensation, Slow AE |
| Extend Dynamic Range (Wide-D) |
On / Off |
| IS/PS Mode |
No |
| Day/Night |
Auto/Manual |
| EV compensation |
-10.5 to 10.5 dB (1.5 dB steps) |
| Back-light compensation |
On / Off |
| Privacy zone masking |
On / Off (24 positions, 8position per screen), 14 colors + Mosaic |
| Character Generator |
Mode: ON/OFF (White Balance, Gain etc…), Title: 11 Lines (20 characters per line) |
| Focusing system |
Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus Compensation in ICR On Mode |
| Picture effects |
E-Flip, Nega Art, Black & White, Mirror Image, Picture freeze, Color enhancement |
| Camera Operation Switch |
Zoom tele, Zoom wide |
| Motion Detection |
Yes |
| Alarm |
Yes |
| Video output Analog |
VBS: 1.0 Vp-p (sync negative), Y/C |
| Video output Digital |
Y/Cb/Cr 4:2:2 (comparable to ITU-R BT656) |
| Camera control interface |
VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, 1 or 2 Stop bit selectable |
| Power Requirements |
6 to 12 V DC |
| Power Consumption |
2.6 W (motors inactive), 4.4 W (motors active) |
| Operating Temperature |
-5° to 50° C |
| Storage Temperature |
-40° to 60° C |
| Mass |
Approximately 230 g |
| Dimensions |
50.0 mm x 57.5 mm x 88.5 mm |
Applications:
Applies to all places .
Competitive Advantage:
* Digital output (ITU-R BT656)
* Color Enhancement
* Outdoor Auto Mode
* Sodium Vapor Lamp
* 18x Optical Zoom
