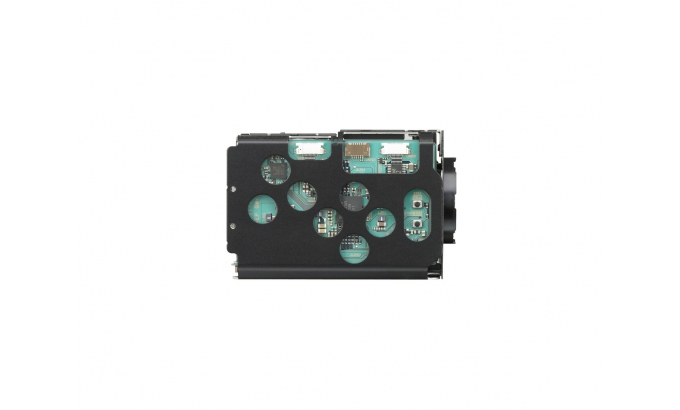

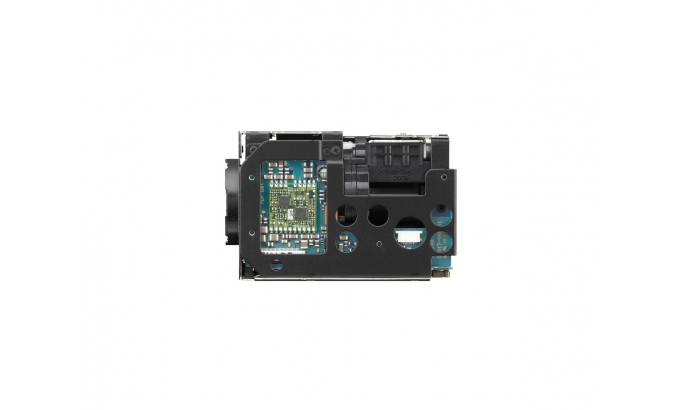

460TVL CCD SONY Camera Module FCB-EX480CP High-sensitivity 18x Optical Lens

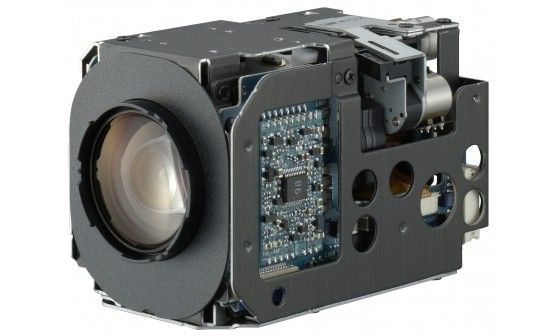

: Large Image : 460TVL CCD SONY Camera Module FCB-EX480CP High-sensitivity 18x Optical Lens

Product Details:

Place of Origin:	Japan
Brand Name:	SONY
Model Number:	FCB-EX480CP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	300pcs / month

Detailed Product Description

Image Sensor:	1/4 Type EXview HAD CCD	Effective Pixels:	Approx. 440,000 Pixels
Minimum Illumination:	0.4 Lx (F1.4, ICR Off)	Lens:	18x Optical Zoom
Digital Zoom:	12x	Dimensions:	50.0 X 57.5 X 88.5 Mm
Weight:	Approx. 230 G

460TVL CCD SONY Camera Module FCB-EX480CP High-sensitivity 18x Optical Lens

Description

Sony's new FCB-EX series of colour block cameras are equipped with an incredibly high
18x zoom lens which has a wide/telephoto horizontal field of view, making them ideally suited for use in

security domes and traffic monitoring applications. These cameras incorporate an advanced Spherical

Privacy Zone Masking feature which allows the masking function to be interlocked with the camera's

pan/tilt/zoom movements, regardless of the camera angle, ensuring the individual’s privacy.

Feature

* Advanced Spherical Privacy Zone Masking function
(max. 24 masking blocks)
* SMART lens control
(Sony Modular Automatic Lens Reset Technology)
* Electronic-Flip (E-Flip) function
* Alarm function
* Auto ICR (IR Cut Filter Removal) Mode*
* High-performance Digital Signal Processing (DSP)
* High-speed serial interface (max. 38.4 Kb/s) with TTL signal-level control (VISCA? protocol)
* Equipped with key switch connector (CN601) for camera control with external equipment
* Various customisable settings
* Internal/External sync
* Low power consumption (1.6 W with motors inactive)
* EEPROM backup system without battery
* 16-bytes of free memory is available for recording data such as product serial numbers and camera/system ID numbers
* Lead-free solder and halogen-free printed-circuit boards

Specifications

Image Device	1/4 type Super EXview HAD CCD
Signal System	PAL
Effective Pixels	Approximately 440,000 pixels
Lens	18x zoom, f=4.1mm (wide) to 73.8 mm (tele), F1.4 to F3.0
Angle of view (H)	48° (wide end) to 2.8° (tele end)
Digital zoom	12x (216x with optical zoom)
Minimum working distance	290mm (wide end) to 800mm (tele end)
Zoom movement speed	Optical WIDE to Optical TELE 2.1 sec
Focus movement speed	Far to Near 0.5 sec
Sync system	internal/External (V-Lock)
Horizontal Resolution	460TV Line
Minimum illumination	0.7 lx (typical) (50 IRE)
Minimum illumination ICR-ON	0.01 lx (typical) (F1.4, 1/3s, 50 IRE)
Auto ICR Mode	IR Cut- filter Removal
S/N ratio	More than 50 dB
Electronic shutter	1/1 to 1/10,000 sec., 22 steps
White balance	Auto, ATW, Indoor, Outdoor, One-Push, Manual
Gain	Auto/Manual (-3 to 28 dB, 2dB steps)
AE control	Auto, Manual, Priority mode, Bright, EV compensation, Back light compensation
Extend Dynamic Range (Wide-D)	N/A
Day/Night	Auto / Manual
EV compensation	-10.5 to 10.5dB, 1.5dB steps)
Back-light compensation	On/Off
Privacy zone masking	On/Off (24 positions)
Character Generator	Title display 1 lines
Flicker cancel	N/A
Focusing system	Auto (Sensitivity : Normal, Low), One-Push AF, Manual, Infinity, Interval AF, Zoom Trigger AF
Picture effects	E-Flip, Nega. Art, Black & White, Mirror Image
Camera Operation Switch	Zoom tele, Zoom wide
Video output Analog	VBS: 1.0Vp-p (sync negatibve), Y/C Output
Camera control interface	VISCA™ (TTL signal level), baud rate: 9.6Kb/s, 19.2Kb/s, 38.4Kb/s, Stop Bit: 1/2 selectable
Power Requirements	6V to 12V DC
Power Consumption	1.5W (motors inactive) / 2.7W (motors active)
Operating Temperature	0° to 50° C
Storage Temperature	-20° to 60° C
Mass	Approximately 230g
Dimensions	52.0 x 57.5 x 88.5 mm

Applications:

Applies to all places .

Competitive Advantage:
Colour Block Cameras
The FCB-EX480C series is equipped with a high-sensitivity CCD, allowing images to be captured at a minimum illumination of 0.7 lx.

18x Optical Lens SONY Camera Module FCB-EX480CP With high-sensitivity CCD Camera
