Detailed Product Description
| Image Sensor: |
1/4-type EXview HAD CCD |
Effective Pixels: |
Approx. 440000 Pixels |
| Digital Zoom: |
12x |
Lens: |
18x Optical Zoom |
| Dimensions (W X H X D): |
2 1/8 X 2 3/8 X 3 1/2 Inches (52.0 X 57.5 X 88.5 Mm) |
Weight: |
8.1 Oz (230 G) |

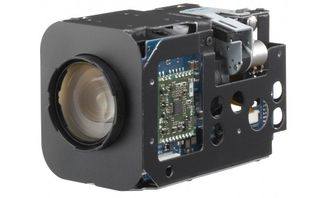

Analog Color Camera Module FCB-EX490DP DSP 18x Wide , Sony Block Camera
Description:
High Resolution and Wide Dynamic Range Combined in a Small, Block Color Camera! Sony is enhancing its
line-up of block cameras with the introduction of its new "D version" wide dynamic block cameras. The FCB-EX490DP high resolution camera incorporates a ¼-type EXview HAD™ CCD with Advanced Digital Signal Processing to reproduce clear, detailed images at an extremely high horizontal resolution of 530 TV lines. The FCB-EX490DP features an 18x optical zoom lens. Feature-rich and coupled with clear and detailed images,
the FCB-EX series of color block cameras are ideally suited for monitoring applications that demand high performance.
Feature:
* 1/4-type EXview HAD CCD
* High Horizontal Resolution of 530 TV Lines
* 216x Zoom Ratio (18x Optical, 12x Digital)
* Wide Dynamic Range
* Advanced Spherical Privacy Zone Masking
* Video Motion Detection
* Minimum Illumination - 0.7 lx (typical)
* E-Flip Function
* Multi-Line On-screen Display
* Auto ICR (IR Cut Filter Removal) Mode
* Picture Freeze Function
* Key Switch Connector (CN601) for Camera Control with External Equipment
* Electronic Shutter/Slow Shutter
* High-Speed Serial Interface (maximum 38.4 Kb/s) with TTL Signal-Level Control - VISCA protocol
* Internal/External Sync
Applications:
Whether your requirement is for a fixed, dome, or Pan/Tilt/Zoom camera, in demanding indoor or outdoor
security and traffic-monitoring applications, the FCB-EX Series is the ideal solution.
Competitive Advantage:
Advanced Digital Signal Processing (DSP) and a 1/4-type EXview HAD CCD enables this camera to reproduce an extremely high horizontal resolution of 530 TV lines, and provide amazingly clear and detailed images. Block cameras the FCB-EX Series offer the choice of a 36x, 26x, and 18x zoom lens, allowing users to select a
camera model that meets their specific monitoring application requirements.
Technical specification:
| Camera Specifications |
Detail: |
| Image Device |
1/4-type EXview HAD CCD |
| Effective Pixels |
Approx. 440000 pixels |
| Digital Zoom |
12x (216x with optical zoom) |
| Horizontal Viewing Angle |
48.0º (wide) to 2.8º (tele) |
| Minimum Object Distance |
290 mm (wide)
800 mm (tele) |
| Sync System |
Internal/External (V-lock) |
| Electronic Shutter |
1 to 1/10000 s
22 steps |
| White Balance |
Auto
ATW
Indoor
Outdoor
One-push
Manual |
| Gain |
Auto / Manual (-3 to 28 dB
2 dB steps) |
| Wide Dynamic Range |
On/Off |
| Backlight Compensation |
On/Off |
| Privacy Zone Masking |
On / Off (24 positions) |
| Character Generator |
Mode display/Multi-line OSD (OSD has priority over Mode display) |
| Focus System |
Auto (Sensitivity: normal and low)
One-push AF
Manual
Infinity
Interval AF
Zoom Trigger AF |
| Camera Operation / Zoom Switch |
Zoom Tele
Zoom Wide |
| Picture Effects |
E-Flip
Nega Art
Black & White
Mirror Image |
| Exposure Control |
Auto
Manual
Priority Mode
Bright
EV Compensation
Backlight Compensation
Slow AE |
| Video Output Specifications |
Detail: |
| Lens Value |
18x |
| S/N Ratio |
More than 50 dB |
| Minimum Illumination |
0.7 lux |
| Video Output |
VBS: 1.0 Vp-p (sync negative)
Y/C |
| Signal System |
PAL |
| Horizontal Resolution |
On/Off (On: 530 TV lines) |
| Horizontal Resolution Value |
530 TV Lines |
| Interfaces Specifications |
Detail: |
| Camera Control Interface |
VISCA (TTL signal level)
Baud rate: 9.6 Kb/s
19.2 Kb/s
38.4 Kb/s
1 or 2 Stop bit selectable |
| General Specifications |
Detail: |
| Dimensions (W x H x D) |
2 1/8 x 2 3/8 x 3 1/2 inches
(52.0 x 57.5 x 88.5 mm) |
| Weight |
8.1 oz (230 g) |
| Operating Temperature |
32 to 122 °F (0 to 50 C°) |
| Storage Temperature |
-4 to 140 °F (-20 to 60 C°) |
| Power Consumption |
2.6 W (motors inactive)
4.4 W (motors active) |
| Power Requirements |
DC 6 to 12 V |
