Detailed Product Description
| Image Sensor: |
1/4-type EXview HAD CCD |
Effective Pixels: |
Approx. 440000 Pixels |
| Digital Zoom: |
12x |
Lens: |
18x Optical Zoom |
| Dimensions (W X H X D): |
50.0 X 57.5 X 88.5 Mm |
Weight: |
8.1 Oz (230 G) |

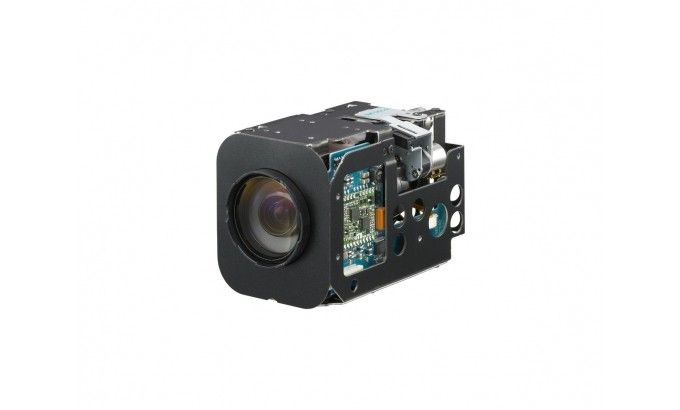

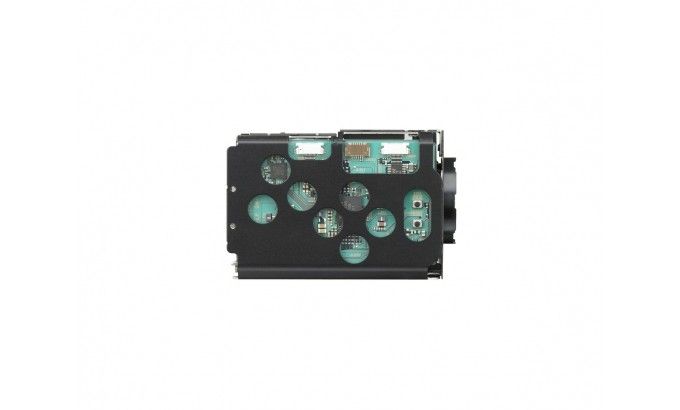

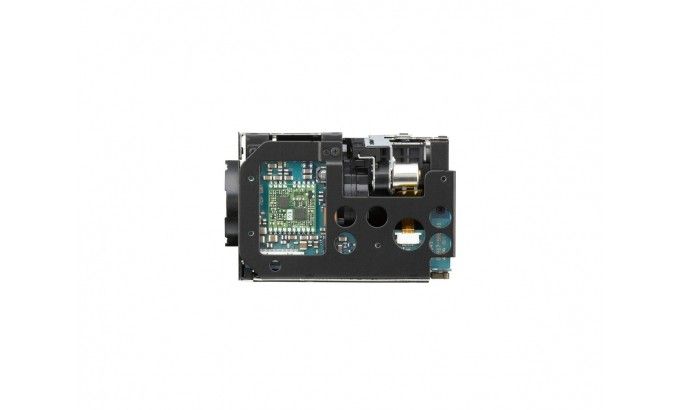

FCB-EX490EP Digital Camera Module Analogue Outputs , Sony Ccd Camera Module
Description:
The FCB-EX490EP block camera combines superb picture quality with high zoom capabilities, up to
216x with optical zoom. Ideally suited for IP-ready monitoring applications, the FCB-EX490EP incorporates True Progressive Scan with a digital output (ITU-R BT656). In low or high contrast lighting situations, the FCB-EX490EP operates an Auto Wide-D mode that automatically turns on/off the Wide-D according to the
luminance of the image. In addition, color enhancement features are ideally suited for low vision applkcations.
Feature:
* True Progressive Scan
* StableZoom Image Stabilization
* Auto Wide-D Mode
* Interlace Wide-D Mode
* Progressive Scan Wide-D Mode
* Digital Ouput
* Temperature Readout
* Color Enhancement
* Outdoor Auto Mode White Balance
* Sodium Vapor Lamp Mode
Applications:
Whether your requirement is for a fixed, dome, or Pan/Tilt/Zoom camera, in demanding indoor or outdoor
security and traffic-monitoring applications, the FCB-EX Series is the ideal solution.
Competitive Advantage:
FCB-EX490EP camera module with digital and analogue outputs, 18x zoom lens and EXview HAD CCD Progressive Scan Sensor.
Technical specification:
| Image Sensor |
1/4-type EXview HAD CCD |
| Image Sensor (Number of Effective Pixels) |
Approx. 440,000 pixels |
| Signal System |
PAL |
| Minimum Illumination (50%, Normal Mode) |
0.7 lx (F1.4, ICR off) |
| Recommended Illumination |
100 lx to 100,000 lx |
| S/N Ratio |
More than 50 dB |
| Gain |
Max. Gain Limit: +3 dB to +28 dB, +2 dB step |
| Gain |
Auto/Manual : -3 dB to +28 dB, +2 dB step |
| Shutter Speed |
1/1 to 1/10,000 s, 22 steps |
| Sync System |
Internal/External (V-lock) |
| Exposure Control |
Auto, Manual, Priority mode (shutter & iris priority), Bright, EV compensation, Slow AE |
| Backlight Compensation |
Yes |
| Aperture Control |
16 steps |
| White Balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual |
| Lens |
F1.4 to F3.0 |
| Lens |
f=4.1 mm (wide) to 73.8 mm (tele) |
| Lens |
18x optical zoom |
| Digital Zoom |
12x (216x with optical zoom) |
| Focusing System |
Interval AF, Zoom Trigger AF, Focus compensation in ICR on |
| Focusing System |
Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, |
| Horizontal Viewing Angle (SD) |
48.0°(wide end) to 2.8°(tele end) |
| Minimum Object Distance |
10 mm (wide end) to 800 mm (tele end) (Default: 290 mm) |
| Power Requirements |
6.0 V to 12.0 V DC |
| Power Consumption |
4.4 W (motors active) |
| Power Consumption |
2.4 W (motors inactive) |
| Operating Temperature |
'-5°C to +60°C |
| Operating Temperature |
23°F to 140°F |
| Storage Temperature |
-4°F to 140 °F |
| Storage Temperature |
'-20°C to +60°C |
| Operating Humidity |
20% to 80% |
| Storage Humidity |
20% to 95% |
| Dimensions (W x H x D) *[2] |
50.0 x 57.5 x 88.5 mm |
| Dimensions (W x H x D) *[2] |
2 x 2 3/8 x 3 1/2 inches |
| Mass |
Approx. 8.1 oz |
| Mass |
Approx. 230 g |
