Detailed Product Description
| Image Sensor: |
1/3-type Super HAD CCD II |
Effective Pixels: |
Approx. 440000 Pixels |
| Digital Zoom: |
12x |
Lens: |
10x Optical Zoom |
| Dimensions (W X H X D): |
45.9 X 43.1 X 67.2 Mm |
Weight: |
140 G |

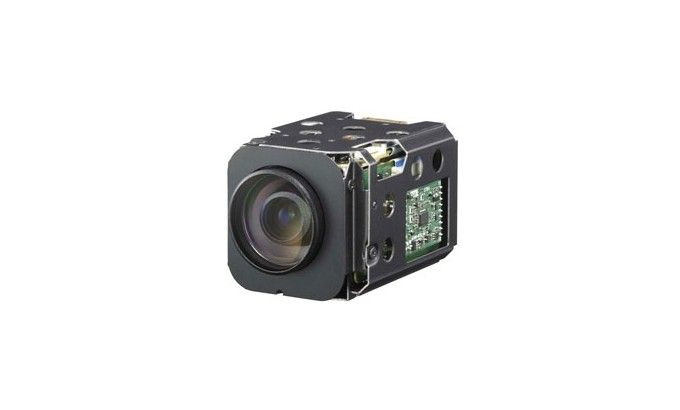

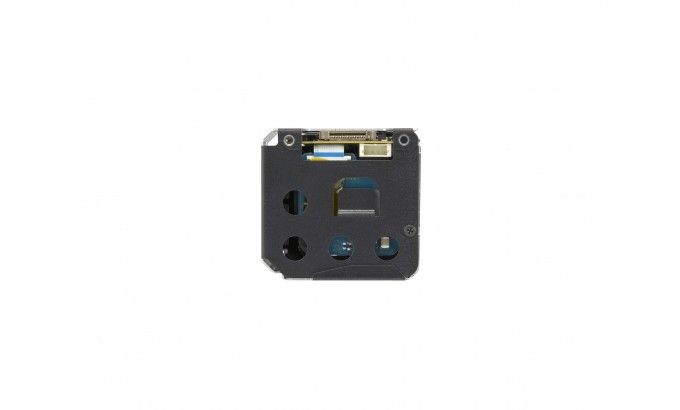

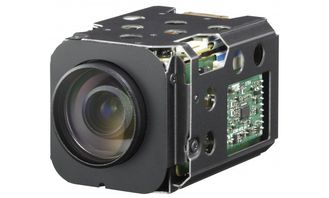

Sony Digital Camera 10X Zoom FCB-EX20DP , Mini CCD Color Camera Module High Speed
Feature:
* Excellent Picture Quality, High-resolution Images
* Day/Night Function
* Compact and Lightweight Design
* Slow AE Response Function
* Advanced Spherical Privacy Zone Masking with Mosaic Effect
* Powerful and Versatile Zoom Capability
* Multi-line On-screen Display
* Video Motion Detection
* Electronic-Flip (e-Flip)
* Picture Freeze
* SMART (Sony Modular Automatic lens Reset Technology) Lens Control
* Electronic Shutter/Slow Shutter (1 to 1/10,000 s, 22 steps)
* High-speed Serial Interface (maximum 38.4 kb/s) with TTL Signal-level Control (VISCA protocol)
* Customizable Settings
* Internal/External Sync
* 16 Bytes of Memory (for storing data such as the product serial number and camera/system ID number)
Description:
The SONY FCB-EX20DP camera can operate under a minimum illumination of 0.25 lx. When combining
Sony's advanced Digital Signal Processing technology with this new CCD, the FCB-EX20D/EX20DP
achieves a horizontal resolution of 530 TV lines, providing extremely clear and detailed images. Featuring a Day/Night function, the camera offers optimized sensitivity in changing light conditions, which is a typical challenge for 24/7/365 surveillance monitoring applications. In addition, the camera provides an extremely
wide horizontal angle of view (5.4° to 50°) with a 120x zooming capability for exceptionally close inspection
to capture detailed information. Moreover, to further improve camera performance, the FCB-EX20D/EX20DP offers a number of sophisticated functions such as advanced spherical privacy zone masking with a mosaic effect, video motion detection, multi-line on-screen display, and slow AE function.
Sony continues to add choice and flexibility to its FCB Series with the introduction of FCB-EX20D and FCB-EX20DP cameras. The FCB-EX20D/EX20DP incorporates a newly designed 1/3-type Super HAD CCD II
sensor that provides increased sensitivity compared to cameras featuring the successful ¼ Super HAD™
CCD .
Applications:
When utilized in a fixed-type, mini speed-dome, or as a Pan/Tilt/Zoom (P/T/Z) camera, the FCB-EX20D/EX20DP is the definitive choice for security and monitoring systems. The camera can be installed in videoconferencing
and in low-vision systems. It can also be used in police vehicles and for underground inspection of oil and gas pipelines. The list of suitable applications is endless.
Competitive Advantage:
The FCB-EX20D/EX20DP incorporates a newly designed 1/3-type Super HAD CCD II sensor that provides superb increased sensitivity (minimum illumination of 0.25lx) compared to cameras featuring the successful ¼ Super HAD™ CCD. This feature rich versatile camera block re-sets the standard for camera block technology.
Technical specification:
| Image Sensor |
1/3-type Super HAD CCD II |
| Image Sensor (Number of Effective Pixels) |
Approx. 440,000 pixels |
| Signal System |
PAL |
| Minimum Illumination (50%, Normal Mode) |
0.25 lx (F1.8, ICR off, 1/50 s) |
| Recommended Illumination |
100 lx to 100,000 lx |
| S/N Ratio |
More than 50 dB |
| Gain |
Auto/Manual : -3 dB to +28 dB, +2 dB step |
| Shutter Speed |
1/1 to 1/10,000 s, 22 steps |
| Sync System |
Internal/External (V-lock) |
| Exposure Control |
Auto, Manual, Priority mode (shutter & iris priority), Bright, EV compensation, Slow AE |
| Backlight Compensation |
Yes |
| Aperture Control |
16 steps |
| White Balance |
Auto, ATW, Indoor, Outdoor, One-push, Manual |
| Lens |
F1.8 to F2.1
f=5.1 mm (wide) to 51.0 mm (tele)
10x optical zoom |
| Digital Zoom |
12x (120x with optical zoom) |
| Focusing System |
Interval AF, Zoom Trigger AF
Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, |
| Horizontal Viewing Angle (SD) |
52.0°(wide end) to 5.4°(tele end) |
| Minimum Object Distance |
10 mm (wide end) to 800 mm (tele end) (Default: 150mm) |
| Power Requirements |
6.0 V to 12.0 V DC |
Power Consumption
2.8 W (motors inactive) |
|
| Operating Temperature |
32°F to 122°F
0°C to 50°C |
| Storage Temperature |
-4°F to 140 °F
'-20°C to +60°C |
| Operating Humidity |
20% to 80% |
| Storage Humidity |
20% to 95% |
| Dimensions (W x H x D) *[2] |
45.9 x 43.1 x 67.2 mm
1 13/16 x 1 3/4 x 2 3/4 inches |
| Mass |
Approx. 5 oz
Approx. 140 g |
