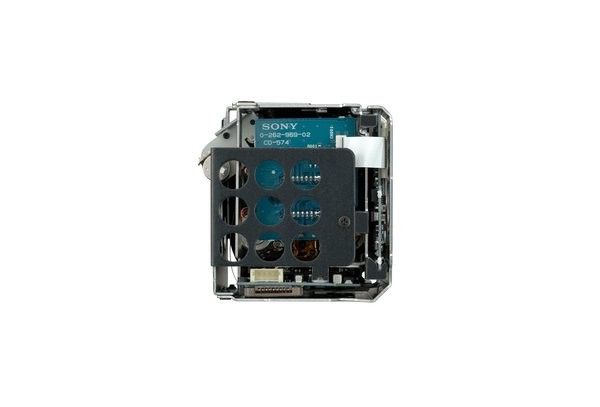

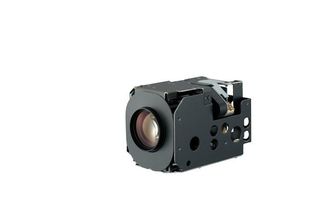

26x SONY Camera Module FCB-EX980SP High Telephoto Zoom Color Block Camera

Large Image : 26x SONY Camera Module FCB-EX980SP High Telephoto Zoom Color Block Camera

Product Details:

Place of Origin:	Japan
Brand Name:	SONY
Model Number:	FCB-EX980SP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	300pcs / month

Detailed Product Description

Image Sensor:	1/4-type Super HAD	Effective Pixels:	Approx. 800000 Pixels
Digital Zoom:	12x	Lens:	26x Optical Zoom
Dimensions (W X H X D):	55.3 X 57.5 X 88.5 Mm	Weight:	230 G

26x SONY Camera Module FCB-EX980SP High Telephoto Zoom Color Block Camera

Competitive Advantage:

The FCB-EX980SP camera combines a new incredibly high 26 times zoom and Auto ICR capability with a 1/4 type Super HAD™ CCD using Sony's image stabilization technology. The FCB-EX980SP camera features a powerful 26x lens that is "tele-shifted" toward the telephoto end of the zoom range to provide the highest TELEPHOTO zoom capability (1.6° H-FOV) available in the Sony FCB family. This camera is ideally suited for use in security domes and traffic monitoring applications.

Description:

Sony's new FCB-EX series of colour block cameras are equipped with an incredibly high
26x zoom lens which has a wide/telephoto horizontal field of view, making them ideally
suited for use in security domes and traffic monitoring applications. These cameras
incorporate an advanced Spherical Privacy Zone Masking feature which allows the masking
function to be interlocked with the camera's pan/tilt/zoom movements, regardless of the
camera angle, ensuring the individual’s privacy.

Feature:

* 26x optical zoom capability
* Advanced Spherical Privacy Zone Masking function (max. 24 masking blocks)
* SMART lens control (Sony Modular Automatic Lens Reset Technology)
* Electronic-Flip (E-Flip) function
* Alarm function
* Auto ICR (IR Cut Filter Removal) Mode
* Image stabiliser
* High-performance Digital Signal Processing (DSP)
* High-speed serial interface (max. 38.4 Kb/s) with TTL
signal-level control (VISCA™ protocol)
* Equipped with key switch connector (CN601) for camera control with external equipment
* Various customisable settings
* Internal/External sync
* Low power consumption (1.6 W with motors inactive)
* EEPROM backup system without battery
* 16-bytes of free memory is available for recording data such as product serial numbers and camera/system ID numbers
* Lead-free solder and halogen-free printed-circuit boards

Applications:

This camera is ideally suited for use in security domes and traffic monitoring applications.

Technical specification:

Image device	1/4 type Super HAD
Effective picture elements	Approx. 740,000 pixels
Lens	26x optical zoom, f=3.5 mm (Wide) to 91.0 mm (Tele), F1.6 to F3.8
Digital zoom	12x (312x with optical zoom)
Viewing angle (H)	42.0° (Wide end) to 1.6° (Tele end)
Minimum working distance	320mm (Wide end) to 1500mm (Tele end)
Sync system	Internal/External (V-Lock)
Minimum illumination	2.0 lx (typical) (50 IRE)
S/N ratio	More than 50 dB
Electronic shutter	1/1 to 1/10,000 s, 22 steps
White balance	Auto, ATW, Indoor, Outdoor, One-push, Manual
Gain	Auto/Manual (-3 to 28 dB, 2 dB steps)
AE control	Auto, Manual, Priority mode, Bright, EV compensation, Back-light compensation
EV compensation	-10.5 to +10.5 dB (1.5 dB steps)
Back-light compensation	On/Off
Privacy zone masking	On/Off (24 positions)
Focusing system	Auto (sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF
Picture effects	E-Flip, Nega Art, Black & White, Mirror Image
Camera operation switch	Zoom Tele, Zoom Wide
Video output	VBS: 1.0 Vp-p (sync negative), Y/C Output
Camera control interface	VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, Stop bit: 1 or 2 selectable
Storage temperature	-20 to 60°C (-4 to 140°F)
Operating temperature	0 to +50°C (32 to 122°F)
Power consumption	6 to 12 V DC/1.6 W (motors inactive), 3.6 W (motors active)
Mass	230 g (8.1 oz)
Dimensions (WxHxD)	55.3 x 57.5 x 88.5 mm (2 1/4 x 2 3/8 x 3 1/2 inches)
