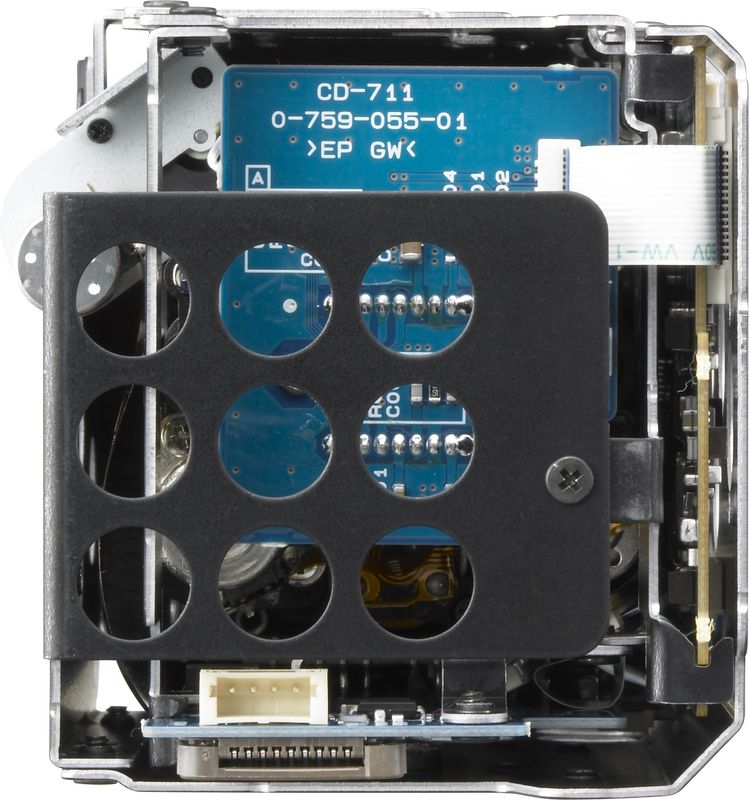

752 Pixels 530 TV Lines SONY Camera Module FCB-EX990DP PAL Wide D Color Block

Large Image : 752 Pixels 530 TV Lines SONY Camera Module FCB-EX990DP PAL Wide D Color Block

Product Details:

Place of Origin:	Japan
Brand Name:	SONY
Model Number:	FCB-EX990DP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	300pcs / month

Detailed Product Description

Image Sensor:	1/4-type EXview HAD CCD	Effective Pixels:	Approx. 440,000 Pixels
Digital Zoom:	12x	Lens:	26x Optical Zoom
Dimensions (W X H X D):	55.3 X 57.5 X 88.5 Mm	Weight:	230 G

752 Pixels x 582P SONY Camera Module FCB-EX990DP PAL 26X Zoom Wide D Color Block

Competitive Advantage:

The new line of block cameras joining the FCB-EX Series offer the choice of a 36x, 26x, and 18x zoom lens, allowing users to select a camera model that meets their specific monitoring application requirements .

Description:

Sony introduces the FCBEX990P, part of a new line of Color Block Cameras to the FCB-EX Series. The FCB-EX990P incorporates advanced Digital Signal Processing (DSP) and a 1/4-type EXview HAD CCD™. This combination enables these cameras to reproduce an extremely high horizontal resolution of 530 TV lines, and provides amazingly clear and detailed images.

Feature:

* 1/4-type EXview HAD CCD
* High Horizontal Resolution of 530 TV Lines
* 312x Zoom Ratio (26x optical, 12x digital)
* Wide Dynamic Range
* Advanced Spherical Privacy Zone Masking
* Function with Mosaic Effect
* Video Motion Detection
* Minimum Illumination of 1.0 lx (typical) at 1/60 s shutter speed and 0.09 lx (typical) at 1/4 s shutter speed
* Multi-Line On-Screen Display
* e-Flip Function
* Auto ICR (IR-cut filter Removal) Mode
* Picture Freeze Function
* Key Switch Connector (CN501) for Camera Control with External Equipment
* Electronic Shutter/Slow Shutter
* High-Speed Serial Interface (maximum 38.4 Kb/s) with TTL Signal-Level Control (VISCA protocol)
* Internal/External Sync

Applications:

This camera is ideally suited for use in security domes and traffic monitoring applications.

Ideally suited for military applications.

Technical specification:

Image device	1/4-type EXview HAD CCD
Effective picture elements	Approx. 440,000 pixels
Horizontal resolution	On/Off (On: 530 TV lines)
Lens	26x optical zoom, f=3.5 mm (wide) to 91.0 mm (tele), F1.6 to F3.8
Digital zoom	12x (312x with optical zoom)
Viewing angle (H)	54.2º (wide) to 2.2º (tele)
Minimum object distance	320 mm (wide), 1500 mm (tele)
Sync system	Internal/External (V-Lock)
Minimum illumination	1/60 s mode: 1.0 lx (typical) (F1.6, 50IRE) 1/4 s mode: 0.09 lx (typical) (F1.6, 50IRE)
S/N ratio	More than 50 dB (weight ON)
Electronic shutter	Electronic shutter
White balance	Auto, ATW, Indoor, Outdoor, One-push, Manual
Gain	Auto / Manual (-3 to 28 dB, 2 dB steps)
AE control	Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Backlight compensation, Slow AE
Wide dynamic range	On/Off
Backlight compensation	On/Off
Privacy zone masking	On/Off (8 masks per view/24 masks presets in the entire viewing range when integrated into a PTZ camera - 14 colors, mosaic)
Character generator	Mode display/Multi-line OSD (OSD has priority over Mode display)
Flicker cancel	--
Focusing system	Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF
Picture effects	e-Flip, Nega Art, Black & White, Mirror Image
Zoom switch	TELE, WIDE
Video output	VBS: 1.0 Vp-p (sync negative), Y/C
Camera control interface	VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, 1 or 2 stop-bit selectable
Storage temperature	-20 to 60 ºC (-4 to 140 ºF)
Operating temperature	0 to 50 ºC (32 to 122 ºF)
Power requirements	6 to 12 V DC
Power consumption	2.6 W (motors inactive), 5.4 W (motors active)
Mass	230 g (8.1 oz)
Dimensions (WxHxD)	55.3 x 57.5 x 88.5 mm (2 x 2 3/8 x 3 1/2 inches)
