High-sensitivity Sony Camera Module ICR 36x FCB-EX1000P 440000 pixels

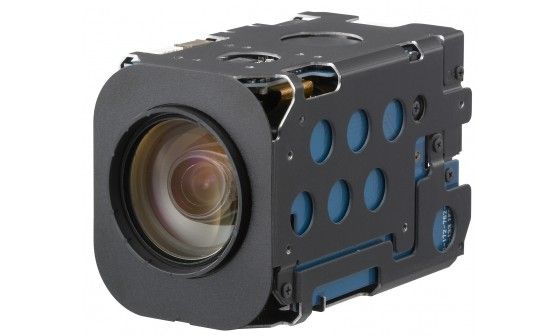

Large Image : High-sensitivity Sony Camera Module ICR 36x FCB-EX1000P 440000 pixels

Product Details:

Place of Origin:	Japan
Brand Name:	SONY
Model Number:	FCB-EX1000P

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	300pcs / month

Detailed Product Description

Model:	SONY FCB-EX1000P	Image Sensor:	1/4-type EXview HAD CCD
Number Of Effective Pixels:	Approx. 440,000 Pixels	Minimum Illumination:	1/60 S Mode: 1.4 Lx (typical) (F1.6, 50 IRE) 1/4 S Mode: 0.1 Lx (typical) (F1.6, 50 IRE)
Lens:	36x Optical Zoom, F=3.4 Mm (wide) To 122.4 Mm (tele), F1.6 To F4.5	S/N Ratio:	More Than 50 DB

High-sensitivity Sony Camera Module ICR 36x FCB-EX1000P for CCD Color Camera

Feature:

* 1/4-type EXview HAD CCD
* FCB-EX1000: 380,000 pixels (NTSC)
* FCB-EX1000P: 440,000 pixels (PAL)
* Minimum Illumination
* 36x Optical Auto Focus Zoom Lens
* Slow AE Response Function*3
* Auto IR Cut Filter Removal (ICR)
* Spherical Privacy Zone Masking
* High-Speed Serial Interface (max. 38.4 kb/s) and TTL
* Electronic-Flip (E-Flip) Function
   Alarm Function
   Picture Freeze Function
   SPOT AE Function
   Electronic Shutter/Slow Shutter
   Internal/External Sync

Description

The FCB-EX1000/P incorporates a high-sensitivity 1/4-type EXview HADTM CCD, which allows images to be captured at a minimum illumination as low as 0.1 lx.*2 With anewly developed slow AE response function, the camera can adapt to abrupt changes in light while capturing fine image details. In addition, the FCB-EX1000/P is equipped with a variety of convenient features such as spherical privacy zone masking, Electronic-Flip, Picture Freeze, and Auto IR-Cut Filter Removal, all of which have been inherited from current Sony FCB-EX Series cameras.

Technical specification:

Image sensor	1/4-type EXview HAD CCD
Signal system	PAL
Number of total pixels	Approx. 440,000 pixels
Lens	36x optical zoom, f=3.4 mm (wide) to 122.4 mm (tele), F1.6 to F4.5
Digital zoom	12x (432x with optical zoom)
Angle of view (H)	57.8° (wide end) to 1.7° (tele end)
Minimum working distance	320 mm (wide end) to 1,500 mm (tele end)
Sync system	Internal / External (V-lock)
Minimum illumination	1/60 s mode: 1.4 lx (typical) (F1.6, 50 IRE) 1/4 s mode: 0.1 lx (typical) (F1.6, 50 IRE)
S/N ratio	More than 50 dB
Electronic shutter	1/1 to 1/10,000 s, 22 steps
White balance	Auto, ATW, Indoor, Outdoor, One-push, Manual
Gain	Auto / Manual (-3 to 28 dB, 2 dB steps)
AE control	Auto, Manual, Priority mode, Bright, EV compensation, Backlight compensation, Slow AE
EV compensation	-10.5 to 10.5 dB (1.5 dB steps)
Backlight compensation	On / Off
Privacy zone masking	On / Off (24 positions)
Flicker cancel	-
Focusing system	Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF
Picture effects	E-Flip, Nega Art, Black & White, Mirror Image
Camera operation switch	Zoom tele, Zoom wide
Video output	VBS: 1.0 Vp-p (sync negative), Y/C
Camera control interface	VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, 1 or 2 Stop bit selectable
Storage temperature	-20 to 60 °C (-4 to 140 °F)
Operating temperature	0 to 50 °C (32 to 122 °F)
Power consumption	6 to 12 V DC/1.6 W (motors inactive), 4.0 W (motors active)
Mass	230 g (8.1 oz)

Competitive Advantage:

The new Sony FCB-EX1000/P color block camera combines an incredibly powerful 36x zoom lens with a wide/telephoto horizontal field of view, ideally suited for use in security domes and traffic monitoring applications.

Applications:

The FCB-EX1000/P particularly suitable for security domes and traffic monitoring applications.
