Detailed Product Description
| Model: |
SONY FCB-EX15EP |
Image Sensor: |
1/4-type EXview HAD CCD (PS) |
| Number Of Effective Pixels: |
440,000 Pixels |
Horizontal Resolution: |
550 TV Lines |
| Lens: |
12x Optical Zoom |
Angle Of View (H): |
F1.6 To F2.5 - F = 3.7mm To 44.4mm |

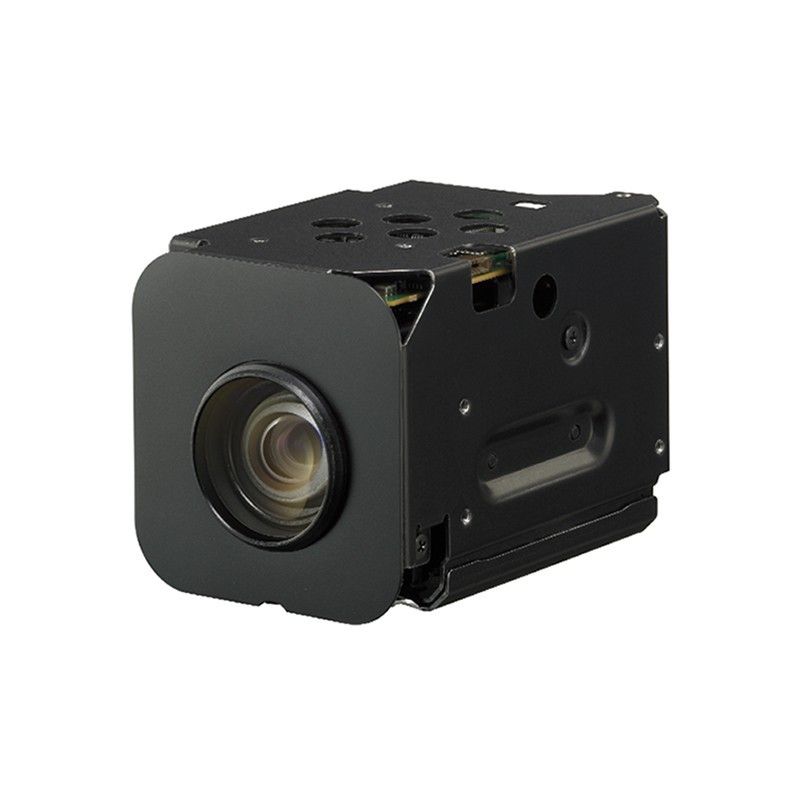

White Balance CCD Analog Camera Module 12X optical Picture Freeze , Sony Block Camera
Competitive Advantage:
True Progressive Scan: Ideally suited for IP-ready monitoring applications, the FCB-EX15E/EP cameras
adopt a Progressive Scan mode to provide smooth and clear images without interlace artifact effects when viewing details in a moving image (i.e., license plate of moving vehicles, a person running). All the processing
is done by the PS from the CCD readout, signal to processing to video output.
Digital Output (ITU-R BT656): By using the digital interface, the quality of the camera's video signal is maintained with minimal deterioration. This can lead to cost savings due to the direct connection to codecs/systems without the need for any additional components.
Temperature Readout: The value of the internal temperature of the FCB E Version cameras can be read out
via the VISCA™ protocol. When checking the internal temperature of equipment (i.e., speed dome unit), it is possible to use this data to turn a fan or heater on/off inside the equipment as needed.
Color Enhancement: Ideally suited for military and low vision applications, new color enhancement options
can make reading text and pictures less challenging. Available options include monochrome, binary, inverted
and enhanced color modes.
Features:
* 12X optical/12X digital zoom (144X zoom ratio)
* High Horizontal Resolution – 550 TV Lines
* High-speed Serial Interface – VISCA protocol
* Wide-D Function
* Enhanced Noise Reduction
* Digital Output via LVDS (30 pin thin cable)/Analog output (9-pin FFC)
* Motion Detection
* Privacy Zone Masking
* Spot AE
* Picture Freeze
* Various Picture Effects
Description:
The Sony FCBEX15EP is a 12x block camera with superb picture quality and features you've come to
expect from the FCB camera line-up, such as digital output, color enhancement and sodium vapor lamp
mode.
Applications:
Whether your requirement is for a fixed, dome, or Pan/Tilt/Zoom camera.
Underground inspection systems of oil gas pipes
Low vision systems
Police vehicles
Technical specification:
| Model |
FCB-EX15E |
FCB-EX15EP |
| Image Device |
1/4-type EXview HAD CCD (PS) |
| Effective Pixels |
NTSC: 380,000 pixels |
PAL: 440,000 pixels |
| Digital Zoom |
12x (144x with optical zoom) |
| Horizontal Viewing Angle |
53.6° (wide end) to 4.6° (tele end) |
| Minimum Object Distance |
10 mm* (wide) ~ 800 mm (tele) *Default: 290 mm |
| Sync System |
Internal/External (V-lock) |
| Electronic Shutter |
1/1 to 1/10,000 s, total 22 steps |
| White Balance |
Auto. ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual |
| Gain |
Auto/Manual/Max. Gain Limit (-3 to +28 dB, +2 dB step/total 16 steps) |
| Wide Dynamic Range |
Yes |
| Privacy Zone Masking |
Spherical |
| Character Generator |
Yes (English/Chinese) |
| Focus System |
Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR On |
| Picture Effects |
E-flip, Nega Art, Black & White, MirrorImage, Color Enhancement |
| Exposure Control |
Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV Compensation, Slow AE |
| Lens Value |
12x optical zoom lens, f=3.7 mm (wide) to 44.4 mm (tele), F1.6to F2.5 |
| S/N Ratio |
More than 50 dB |
| Minimum Illumination |
Approx. 1.0 lx (F1.6, 50 IRE) |
| Video Output |
Analog: VBS: 1.0 Vp-p (sync negative) |
| Horizontal Resolution |
550 TV Lines |
| Camera Control Interface |
VISCA™ protocol (CMOS 5 V) 9.6 Kbps, 19.2 Kbps, 38.4 Kbp; Stop bit, 1 bit |
| Dimensions (W x H x D) |
44.8 x 46.9 x 71.8 mm |
| Weight |
Less than 150 g |
| Operating Temperature |
-5°C ~ 60°C |
| Storage Temperature |
-20° ~ 60°C |
| Power Consumption |
3.7 W (motors active) / 2.3 W (motors inactive) |
| Power Requirements |
6.0 V ~12.0 V DC |
