Detailed Product Description
| Brand: |
SONY |
Model: |
FCB-IX10AP |
| Sensor: |
1/4 Type Super HAD CCD |
Lens: |
10x Optical Zoom |
| Dimensions: |
39.3 X 44.8 X 65mm (1-9/16 X 1-13/16 X 2-5/8 Inches) |
Weight: |
Approx. 95g (3.4 Oz) |

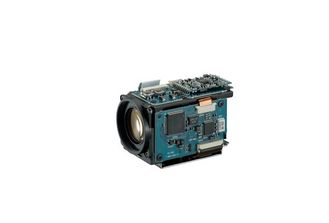

Sony Digital Camera 10X Zoom Camera Module CCD Industrial Block
Description:
Sony's FCB Series is an evolution of color block cameras. Inheriting the excellent features of Sony's
conventional block cameras, these new members of the FCB family incorporate a newly developed Digital
Signal Processing (DSP) and firmware that greatly enhances their operability and picture quality. The FCB-IX cameras will appeal to numerous general-purpose applications ranging from pipe inspection and photo booths
to document stands. The FCB-IX models incorporate a 1/4 type CCD with Sony's "next generation" Super HAD CCD TM and feature a variety of functions such as digital zoom and built-in field memory (FCB-IX47A/IX47AP
and FCB-IX10A/IX10AP only). The FCB-IX10A/IX10AP color cameras are equipped with a 40x zoom ratio (10x optical, 4x digital) and their ultra-compact and light weight size make them ideal for space restricted applications.
SONY FCB-IX10AP Features:
* 1/4 type Super HAD CCD
* Compact and light weight
* 40x zoom ratio (10x optical, 4x digital)
* Minimum illumination at 2.0 lx (typical)
* Key switch control compatibility
* High speed serial interface (maximum 38.4 Kb/s) and TTL signal-level control (VISCA protocol)
* Electronic shutter/slow shutter
* On-screen display (date/time/title)
Sony FCB-IX10AP Specification:
* Image Sensor: 1/4 type Super HAD CCD
* Number of Effective Pixels (H x V): Approx. 440,000 pixels
* Len: 10x Zoom f=4.2 (wide) to 42mm (tele), F1.8 to F2.9
* Digital Zoom: 4x (40x with optical zoom)
* Angle of View (H): Approx. 46 degrees (wide end) Approx. 5.0 degrees (tele end)
* Min. Object Distance: 10mm (wide end), 1000mm (tele end)
* Sync. System: Internal
* Min. Illumination: 2.0 lx (50IRE)
* S/N Ratio: more than 50 dB
* Electronic Shutter: 1/1 s to 1/10,000 sec. 22 steps
* White Balance: Auto, ATW, Indoor, Outdoor, One Push, Manual
* Gain: Auto/Manual (-3 to 28dB, 2dB steps)
* AE Control: Auto, Manual, Priority mode, Bright, EV compensation, Back light compensation
* EV Compensation: -10.5 to +10.5dB (1.5dB steps)
* Back Light Compensation: On/Off
* Privacy Zone Masking: On/Off
* Flicker Cancel: Auto
* Focusing System: Auto (Sensitivity :Nor, Low), One-Push AF, Manual, Infinity Interval AF, Zoom Trigger AF
* Picture effect: Neg. Art, Black & White, Mirror Image
* Camera Operation Switch: Zoom tele, Zoom wide
* Video Output: VBS:1.0Vp-p (Sync Negative) Y/C Output
* Camera Control Interface: VISCA (TTL/RS-232C signal level) Baud Rate 9.6Kbps, 19.2Kbps, 38.4Kbps Stop bit 1/2 selectable
* Storage Temp.: -20o to 60oC (-4oF to 140oF)
* Operating Temp.: 0o to 50oC (32oF to 122oF)
* Power Consumption: 6 to 12 V DC/ 1.6W typ. (inactive motors), 2.1W typ. (active motors)
* Weight: approx. 95g (3.4 oz)
* Dimensions: 39.3 x 44.8 x 65mm (1-9/16 x 1-13/16 x 2-5/8 inches)
