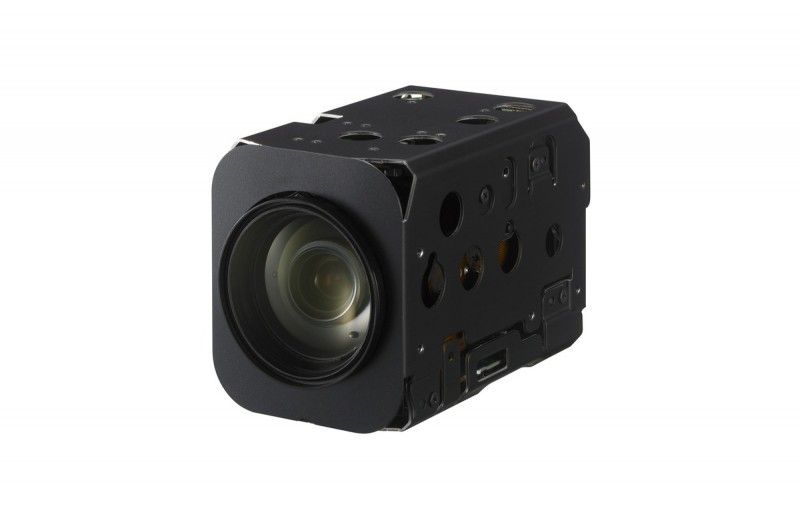

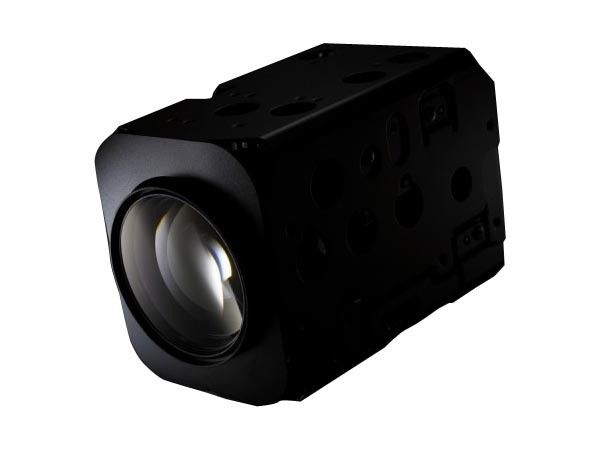

FCB-EH6500 HD Camera Module 3.27 Megapixel , Sony Digital Camera 30X Zoom

Large Image : FCB-EH6500 HD Camera Module 3.27 Megapixel , Sony Digital Camera 30X Zoom

Product Details:

Place of Origin:	Japan
Brand Name:	SONY
Model Number:	FCB-EH6500

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	150pcs / month

Detailed Product Description

Sensor:	1/2.8-type Exmor CMOS	Lens:	30x Optical Zoom
Effective Pixels:	Approx. 3.27 Megapixels	Digital Zoom:	12x
Size:	50.0 X 60.0 X 89.7 Mm	Weight:	265 G

FCB-EH6500 HD Camera Module 3.27 Megapixel , Sony Digital Camera 30X Zoom

Feature:

* Excellent high-definition (HD) picture quality
* Exmor CMOS sensor realizes high image quality and high sensitivity
* Powerful zoom capability
* Bright, fast, and robust 30x zoom lens
* Simple connection – one cable, one connector
* Image Stabilization

* Various modes for White Balance

*   Picture freeze
*   Temerature readout
*   Slow AE response (approx. fixe minutes)
*   Title display (20 characters per line, max 11 lines)
*   Camera mode display (English)
*   Electronic shutter/slow shutter
*   Spot AE
*   High Resolution mode
*   IR Focus Correction function
*   Four presets for gamma control
*   Four levels of chrominance suppression

Description:

The flagship camera in the EH range is the FCB-EH6500 which incorporates a 1/2.8-type Exmor™ CMOS image sensor with Full HD (1920 x 1080) resolution, and achieves excellent zooming performance with a 30x optical zoom lens. One other camera in the series, the FCB-EH6300, is equipped with the same image sensor to deliver Full HD resolution with 20x optical zoom capability. The remaining cameras in this series all incorporate a 1/4-type Exmor CMOS image sensor with HD (1280 x 720) resolution. The FCB-EH3310 and FCB-EH3410 models deliver a high quality HD image with great sharpness, which makes them ideal for security applications. And the smallest camera in the FCB-EH Series is the affordable FCB-EH3150. Along with its HD resolution sensor, it features a 12x optical zoom lens. All of these cameras inherit a multitude of features from Sony’s world-renowned FCB Series such as Wide-D*, Auto ICR, and Spherical Privacy Zone Masking. With this breadth of choice, it has never been easier to select the right camera from Sony for your specific imaging applications.

Applications:

* Drone Camera
* Pipe Inspection
* Underwater Applications
* Medical Applications
* Broadcast Camera

Competitive Advantage:

Specifications:

Image sensor	1/2.8-type Exmor CMOS
Effective number of pixels	Approx. 3.27 Megapixels
Picture Quality	Full HD 1080p (1920 x 1080)
Image size (H x V)	1920 x 1080, 1280 x 720, 720 x 480, 720 x 576
Lens	30x optical zoom f=4.6 mm (wide) to 138.0 mm (tele) F1.6 to F4.7
Digital zoom	12x (360x with optical zoom)
Angle of view (H)	1080p mode - 59.5° (wide end) to 2.1° (tele end) 720p mode - 40.6° (wide end) to 1.4° (tele end)
Minimum object distance	10 mm (wide end) to 1,200 mm (tele end) (Default: 300 mm)
Minimum illumination (50%)	High sensitivity mode - 0.5 lx (F1.6, ICR off) 0.095 lx (F1.6, ICR on) Normal mode - 1.7 lx (F1.6, ICR off) 0.3 lx (F1.6, ICR on)
Recommended illumination	100 lx to 100,000 lx
S/N ratio	More than 50 dB
Signal System	HD - 1080p/30, 1080p/29.97, 1080p/25, 1080i/60 (30 PsF), 1080i/59.94 (29.97 PsF), 1080i/50 (25 PsF), 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 SD - NTSC, PAL
Video output	HD - Analog: Component (Y/Pb/Pr), Digital: Y/Cb/Cr 4:2:2 via LVDS, (Signal format conforms to SMPTE274/SMPTE296.) SD - VBS
Camera control interface	VISCA (CMOS 5 V level), Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, Stop bit: 1 bit
Electronic shutter speed	1/1 to 1/10,000 s, total 22 steps
White balance	Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual
Gain	Auto/Manual (-3 dB to +28 dB, +2 dB step/total 16 steps), Max. Gain Limit (+6 dB to +28 dB, +2 dB step/total 12 stpes)
AE control	Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
Focusing system	Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
EV compensation	No
Backlight compensation	Yes
Aperture control	16 steps
Preset	6 positions
Wide-D*	Yes (On/Off/Auto)**
Image stabilization	Yes
StableZoom	Yes
Digital output	Yes
Auto ICR	Yes
Spherical privacy zone masking	Yes
Noise reduction	Yes (On/Off) (Level 5 to 1/Off total 6 steps)
Motion detection	Yes
Alarm	Yes
Slow AE response	Yes (Approx. 5 minutes)
Picture effects	Yes (E-Flip, Nega Art, Black & White, Mirror image, Color enhancement)
Picture freeze	Yes
Slow shutter	Yes
Temperature readout	Yes
Title display	Yes (20 characters/line, max. 11 lines)
Camera mode display	Yes
Key switch control	No
Camera operation switch	No
Storage temperature	-20°C to +60°C (-4°F to 140 °F)
Storage humidity	20% to 95%
Operating temperature	-5°C to +60°C (23°F to 140°F)
Operating humidity	20% to 80%
Power requirements	6.0 V to 12.0 V DC
Power consumption	3.3 W (zoom/focus inactive) / 3.8 W (zoom/focus active)
Mass	Approx. 265 g (9.3 oz)
Dimensions (W x H x D)	50.0 x 60.0 x 89.7 mm (2 x 2 3/8 x 3 5/8 inches)
