Detailed Product Description
| Sensor: |
1/2.8-type Exmor CMOS (IMX136) |
Resolution: |
Full 1920 X 1080/60p |
| Lens: |
30x Optical Zoom |
Digital Zoom: |
12x |
| Size: |
50 × 60 X 89.7 Mm |
Weight: |
Approx. 265G |

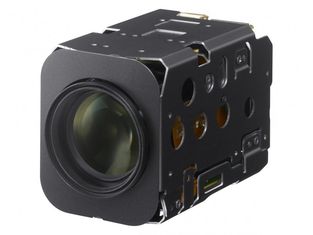

Full HD Sony Cmos Camera Module 1080P FCB-EV7500 30x Color Zoom Block
Feature:
* 1080p60 video mode
* 30x zoom
* WDR and Visibility enhancer
* Noise reduction(3D + 2D)
* Digital zoom 12X
* Auto ICR
* Wide-D
* Spherical Privacy Zone Masking
* Motion Detection
* Color enhancement
* Slow AE response
* Image Stabilization:FCB-EV7500/FCB-EV5500
* Temperature readout
* Sync system:Internal
* VISCA protocol(CMOS 5V Level)
Competitive Advantage:
* SONY FCB-EV7500 HD Color Block Camera with Visibility Enhancement
* Full 1920 x 1080/60p High Definition
* Digital Output (Y/Cb/Cr 4:2:2)
* Wide-D Mode
* Defog mode
* Image Stabilization
* Auto ICR Function
* Digital 2D/3D Noise Reduction
Description:
The FCB-EV7500 is Sony’s latest 1/2.8 type Exmor CMOS image sensor with full HD (1920 x 1080) at 60fps and 30x optical.
Featuring full 1920 x 1080/60p, 30x Zoom, Wide-Dynamic Range, and Auto ICR, the new FCB-EV7500 is a compact High Definition block camera which is ideal for Security Monitoring, Intelligent Traffic, Remote Monitoring, Inspection and Video Conferencing applications. Available picture effects include Color Enhancement, E-flip, Nega Art, Black & White, and Mirror Image.
Applications:
Intelligent Traffic
Remote Monitoring
Inspection
Video Conferencing
Security Monitoring
Specifications:
| Image Sensor |
1/2.8-type Exmor CMOS (IMX136) |
| Signal System |
1080p : 59.94, 50, 29.97, 25
1080i : 59.94, 50,
720p : 59.94, 50, 29.97, 25 SD |
Minimum Illumination
(50%, Normal Mode) |
Less than 1.4 lx (F1.6, ICR off) |
| Sync System |
Internal |
| Exposure Control |
Auto, Manual, Priority mode (shutter & iris priority), Bright, EV compensation, Slow AE |
| Backlight Compensation |
Yes |
| Aperture Control |
16 steps |
| Lens |
30x optical zoom
f = 4.3 mm to 129 mm
F1.6 to F4.7 |
| Digital Zoom |
12x (360x with optical zoom) |
| Focusing System |
Auto, One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF |
| Horizontal Viewing Angle |
65.0° (Wide) to 2.3°(Tele) |
| Minimum Object Distance |
10 mm (Wide end) |
| Auto ICR |
Yes |
| Wide-D |
Yes |
| Noise Reduction |
Yes (2D / 3D) |
| De-fog/De-mist |
Yes(by VE) |
| Image Stabilization |
Yes |
| Stablezoom |
Yes |
| Privacy Zone Masking |
Yes (Polygonal, Spherical, Mosaic) |
| Motion Detection |
Yes |
| Alarm |
Yes |
| Picture Effects |
Yes |
| Slow AE Response |
Yes |
| Slow AE Response |
Yes |
| Temperature Readout |
Yes |
| Title Display |
Yes |
| Camera Mode Display |
Yes |
| Video Output (HD) |
Analog : Component (Y/Pb/Pr)
Digital : LVDS (SMPTE 274M(FHD)/296M(HD)) |
| Video Output (SD) |
VBS, Y/C |
| Camera Control Interface |
VISCA (CMOS 5 V level) |
| Power Requirements |
6.0 V to 12.0 V DC |
| Operating Temperature |
-5°C to 60°C |
| Dimensions (W x H x D)*1 |
50 × 60 X 89.7 mm |
| Mass |
Approx. 265g |
