Detailed Product Description
| Sensor: |
CMOS |
Lens: |
0.5mm F1.2 / 50 ° |
| Horizontal Resolution: |
520TV Lines |
Weight: |
8G |
| Low Illumination: |
0.008lux |
Size: |
33.0mm X 10.0mm X 10.0mm |

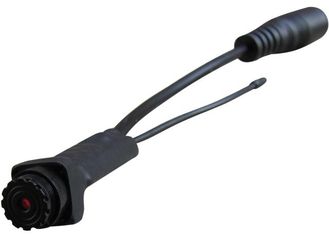

Hidden Wireless Cmos Camera Module 100M Range 5.8GHz 50deg Angle 0.5mm F1.2 / 50 °
Advantage:
1. No-interference 5.8G frequency, up to 24 channels for choice;
2. Tiny size (smaller than finger);
3. Tiny weight (only 8g);
4. 0.008LUX super low illumination, which can see clearly under dim light;
5. 50deg .
6. Low power consumption assures the long time working life;
7. 25mW transmitting power, which leads 100 meters wireless transmission range.
Description:
SPY960BET adopts no-interference 5.8G frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities. Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(50deg), small size, wireless transmission, tiny weight( 8g), continuous working(AV power supply), and easy installation . It is a good helper for home monitoring and burglar.
Use method:
Connect it with power supply, it starts to work.
At the same time, power on wireless receiver and set it in the same channel with camera.
Then it starts to receive/record real time audio & video.
Specification:
| Working frequency |
G1-within 5.8G |
CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
Working Channel: 1 of 24 |
| G2-Beyond 5.8G |
CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz |
| G3-Within 5.8G |
CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz |
| Antenna |
External antenna |
| RF OUTPUT POWER |
25mW |
| TRANSMISSION RANGE |
100 meters |
| SENSOR DIMENSION |
NTSC:720(H) x 480(V) |
PAL:720(H) x 576(V) |
| HORIZONTAL RESOLUTION |
480TV Lines |
| SENSITIVITY |
0.008Lux/F1.2 |
| LENS & VIEW ANGLE |
0.5mm F1.2 / 50 deg |
| SIZE(L x W x H) |
33.0mm x 10.0mm x 10.0mm |
| WEIGHT(g) |
8g |
| WORK CURRENT |
230mA |
| POWER REQUIREMENT |
DC 4V |
| OPERATING TEMPERATURE |
- 20C ~ + 50C ,Relative humidity 85% |
Contents:
* mini camera X1;
* RCA BNC cable X1;
* AC adapter x1
