Detailed Product Description
| Sensor: |
1/3-type CMOS |
Effective Pixels: |
HD 720/60p (1280 X 720) |
| Lens: |
20x Optical Zoom |
Digital Zoom: |
12x |
| Size: |
50 X 60 X 89.7 Mm |
Weight: |
270 G |

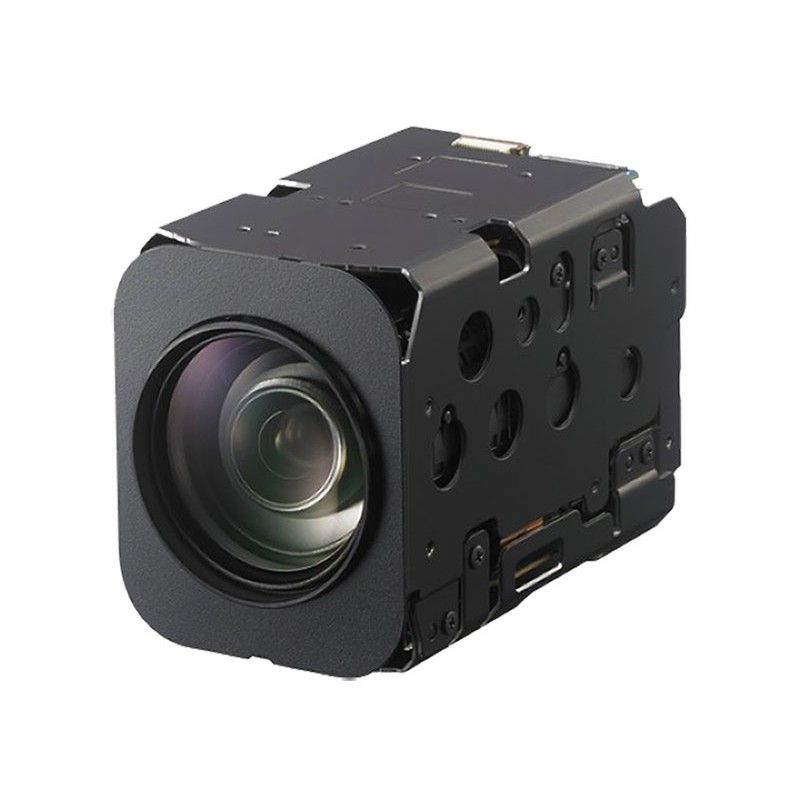

SONY 20x HD CMOS Sony Camera Module FCB-EV5300 Video Security Block Camera
Description:
These cameras off er excellent picture quality, thanks to the use of Exmor™ CMOS image sensors and high-performance optical zoom lenses. Now Sony's FCB-EV Series covers a range of products from 10x to 30x, HD and Full-HD, and with or without analog video output, allowing you to select the right camera according to your specific and varying needs.
All of these cameras inherit a multitude of features from Sony's world-renowned FCB Series including Wide-D*1, Auto ICR, and Spherical Privacy Zone Masking. These useful featuresare suitable for an array of applications and designed to satisfy all your needs.
Competitive Advantage:
* Industry best WDR technology
* Industry best image stabilizer & focal plane distortion correction technology
* New defog function
* New AE for low luminance performance improvement
* Other features
* Industry top-level low power consumption
* 60FPS & 30FPS support
* HLC ( Tentative )
* Low luminance performance improvement
Feature:
* Industry best WDR technology
* Industry best image stabilizer & focal plane distortion correction technology
* New defog function
* New AE for low luminance performance improvement
* Other features
* Industry top-level low power consumption
* 60FPS & 30FPS support
* HLC ( Tentative )
* Low luminance performance improvement
* 2D/3D noise reduction
* De-fog
* HLC (High Light Compensation)
* Auto ICR (Auto IR-cut Filter Removal)
* Choice of HD and SD output modes
* One-cable connection for simpler integration
* Wide range of features for versatile operation
Applications:
* Drone Camera
* Pipe Inspection
* Underwater Applications
* Medical Applications
* Broadcast Camera
Specifications:
| Imager sensor |
1/3-type CMOS |
| Lens |
20x, f=4.7mm (wide) to 94.0mm (tele), F1.6 to F3.5 |
| Picture quality |
HD 720/60p (1280 x 720) |
| Minimum illumination* |
TBD |
| Digital zoom |
12x (240x with optical zoom |
| Dimensions |
50 x 60 x 89.7 mm (2 x 2 3/8 x 3 5/8 inches) |
| Defog |
Yes |
| Wide-D (Wide dinamic range) |
130dB |
| Image stabilizer |
Yes |
| StableZoom |
Yes |
| Auto ICR (Auto IR-cut Filter Removal) |
Yes |
| Spherical privacy zone masking |
Yes |
| Noise reduction |
Yes |
| Slow AE response |
Yes |
| Video Output (HD) |
Analog: N/A Digital: Y/Cb/Cr 4:2:2 via LVDS (Signal format conforms to SMPTE 274/SMPTE 296.)
|
| Video Output (SD) |
VBS |
| Signal system |
720p/60, 720p/30, 720p/59.94, 720p/50, 720p/29.97, 720p/25 |
