Detailed Product Description
| Sensor: |
1/3-type Exmor CMOS (IMX104) |
Effective Pixels: |
720p60 |
| Lens: |
30x Optical Zoom |
Digital Zoom: |
12x |
| Size: |
50 × 60 X 89.7 Mm |
Weight: |
265G |

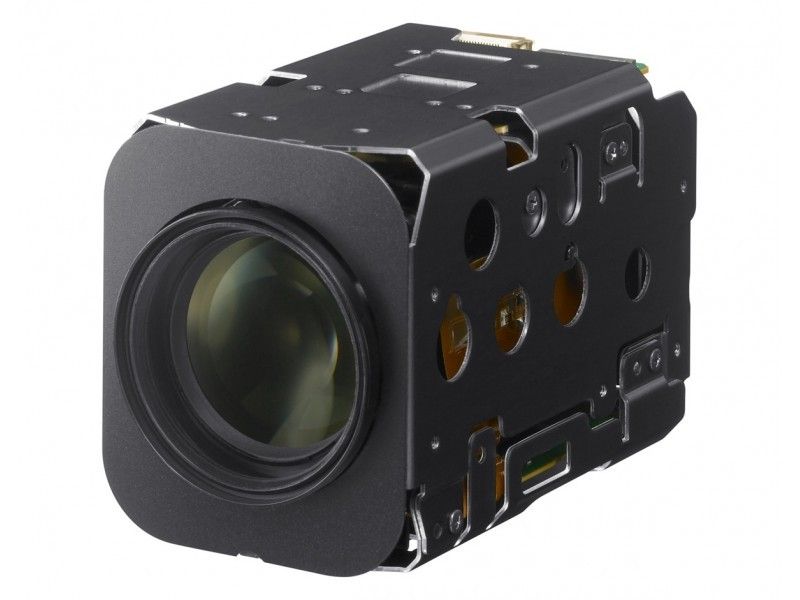

FCB-EV5500 720P HD Camera Module 30x WDR 1/3 CMOS Defog
Description:
The FCB-EV5500 is a model with HD (720/60p) performance with 30x optical zoom lens. All of these cameras inherit a multitude of features from Sony’s world-renowned FCB Series including Wide-D*1, Auto ICR, Spherical Privacy Zone Masking and NEW Visibility Enhancer. These useful features are suitable for a variety of demanding applications.
Competitive Advantage:
The FCB-EV5500 is a model with HD (720/60p) performance with 30x optical zoom lens. All of these cameras inherit a multitude of features from Sony’s world-renowned FCB Series including Wide-D*1, Auto ICR, Spherical Privacy Zone Masking and NEW Visibility Enhancer. These useful features are suitable for a variety of demanding applications.
Feature:
* Higher Sensitivity via Exmor CMOS
* 1080/60 support (60p with Wide-D)
* New Wide Dynamic Range Function
* Advanced 2D/3D Noise Reduction
* Visibility Enhancer (Tone Reproduction)
* De-Fog Effect
* De-Mist Effect
* Anti-focal plane Image Stabilizer
* Reduced Latency
* Privacy Zone Masking
* Optimized Sharpness & Color Management
* 720p60 video mode
* 30x zoom
* WDR and Visibility Enhancer
* Image Stabilizer
Specifications:
| Image Sensor |
1/3-type Exmor CMOS (IMX104) |
| Signal System |
720p : 59.94, 50, 29.97, 25
SD |
Minimum Illumination
(50%, Normal Mode) |
Less than 1.0 lx (F1.6, ICR off) |
| Sync System |
Internal |
| Exposure Control |
Auto, Manual, Priority mode (shutter & iris priority), Bright, EV compensation, Slow AE |
| Backlight Compensation |
Yes |
| Aperture Control |
16 steps |
| Lens |
30x optical zoom
f = 4.3 mm to 129 mm
F1.6 to F4.7 |
| Digital Zoom |
12x (360x with optical zoom) |
| Focusing System |
Auto, One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF |
| Horizontal Viewing Angle |
59.0° (Wide) to 2.1°(Tele) |
| Minimum Object Distance |
10 mm (Wide end) |
| Auto ICR |
Yes |
| Wide-D |
Yes |
| Noise Reduction |
Yes (2D / 3D) |
| De-fog/De-mist |
Yes(by VE) |
| Image Stabilization |
Yes |
| Stablezoom |
Yes |
| Privacy Zone Masking |
Yes (Polygonal, Spherical, Mosaic) |
| Motion Detection |
Yes |
| Alarm |
Yes |
| Picture Effects |
Yes |
| Slow AE Response |
Yes |
| Slow AE Response |
Yes |
| Temperature Readout |
Yes |
| Title Display |
Yes |
| Camera Mode Display |
Yes |
| Video Output (HD) |
Analog : Component (Y/Pb/Pr)
Digital : LVDS (SMPTE 274M(FHD)/296M(HD)) |
| Video Output (SD) |
VBS, Y/C |
| Camera Control Interface |
VISCA (CMOS 5 V level) |
| Power Requirements |
6.0 V to 12.0 V DC |
| Operating Temperature |
-5°C to 60°C |
| Dimensions (W x H x D)*1 |
50 × 60 X 89.7 mm |
| Mass |
Approx. 265g |
Applications:
* Drone Camera
* Pipe Inspection
* Underwater Applications
* Medical Applications
* Broadcast Camera
