28x Zoom HD SONY Block Camera FCB-EH3410 For Security Monitoring

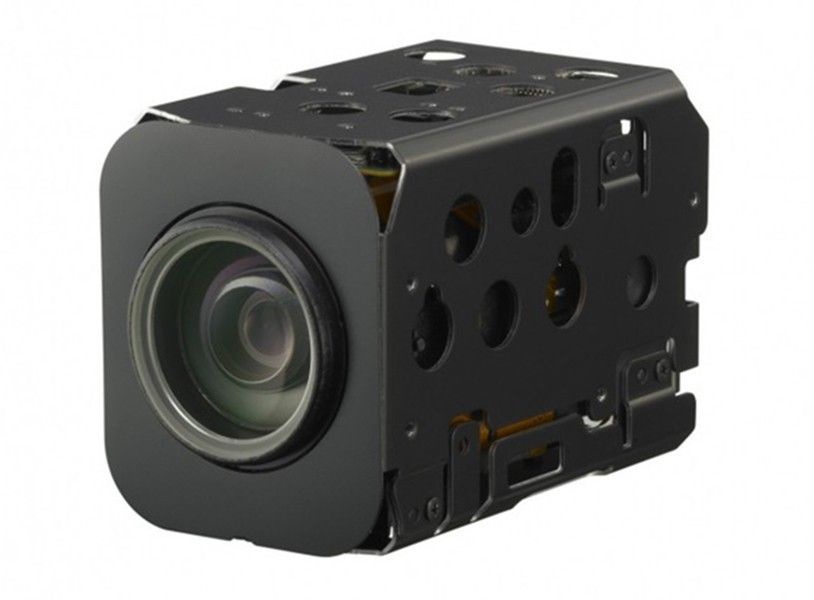

Large Image : 28x Zoom HD SONY Block Camera FCB-EH3410 For Security Monitoring

Product Details:

Place of Origin:	Japan
Brand Name:	SONY
Model Number:	FCB-EH3410

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	5days
Payment Terms:	T/T,PAYPAL
Supply Ability:	160pcs / month

Detailed Product Description

Model:	FCB-EH3410	Image Device:	1/4-type Exmor CMOS Sensor
Effective Pixels:	Approx. 1,450,000	Len:	28x Optical Zoom
Weight:	240 G	Dimensions (W X H X D)::	50.0 X 60.0 X 89.7 (mm)

28x Zoom HD SONY Block Camera FCB-EH3410 For Security Monitoring

FCB-EH3410 Feature:

* 1280 x 720p High Definition: Ideally suited for Security monitoring applications, the FCB-EH3410 HD block camera offers 1280 x 720p high definition video output.
* Digital Output (Y/Cb/Cr 4:2:2): The digital LVDS interface provides easy access for IP and Gigabit Ethernet applications. Thanks to the digital interface, the quality of the camera video signal is maintained with minimal deterioration. This can lead to cost savings due to the direct connection to codecs/systems without the need for any additional components.
* Temperature Readout: The value of the internal temperature of the FCB-EH3410 camera can be read out via the VISCA protocol. When checking the internal temperature of equipment (i.e., speed dome unit), it is possible to use this data to turn a fan or heater on/off inside the equipment as needed.
* Auto Wide-D Mode: The new FCB-EH3410 camera monitors the luminance differences within an image in high contrast environments and automatically switches on and off the Wide D feature according to the contrasted lighting environment. In addition, it is possible to select three levels of luminance differences (low/mid/high).
* Additional Wide-D Modes: In addition to the Auto Wide-D mode, the new FCB-EH3410 camera features additional modes, including Indoor, Outdoor, One-push WB, ATW, Manual, Sodium Vapor Lamp.
* Auto ICR: The FCB-EH3410 features a sensitive image sensor, ideal for day/night functions at less than 0.5 lux (F1.6, 50IRE) with high-sensitivity mode on.

Specification:

Image sensor	1/4-type Exmor CMOS
Effective number of pixels	Approx. 1.43 Megapixels
Image size (H x V)	1280 x 720
Lens	28x optical zoom, f=3.5 mm (wide) to 98.0 mm (tele), F1.35 to F3.7
Digital zoom	12x (336x with optical zoom)
Angle of view (H)	55.9° (wide end) to 2.1° (tele end)
Sync system	Internal
Minimum illumination	Less than 1.0 lx (F1.35, 50 IRE)
S/N ratio	More than 50 dB
Signal system	HD - 720p/59.94, 720p/50, 720p/29.97, 720p/25 SD - NTSC, PAL
Video output	HD - Analog: Component (Y/Pb/Pr) Digital: Y/Cb/Cr 4:2:2 via LVDS SD - VBS
Camera control interface	VISCA™ protocol (TTL signal level)
Electronic shutter	1/1 to 1/10,000 s, total 22 steps
White balance	Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual
Gain	Auto/Manual/Max. Gain Limit (-3 to +28 dB, +2 dB step/total 16 steps)
AE control	Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV Compensation, Slow AE
Focusing system	Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus Compensation in ICR On
Auto ICR	Yes
Wide-D	Yes (30 fps)
Image Stabilization	Yes
Digital noise reduction	Yes (2D)
Privacy Zone Masking	Yes
Motion detection	Yes
Slow AE	Yes (Approx. 5 minutes)
Picture effects	Yes (E-Flip, Nega Art, Black & White, Mirror Image, Color enhancement)
Picture freeze	Yes
Temperature readout	Yes
Title display	Yes (20 characters/line, max. 11 lines)
Camera mode display	Yes
Electronic shutter/slow shutter	Yes
Spot AE	Yes
Storage temperature	-20C to 60C
Operating temperature	-5C to 60C
Power consumption	4.7 W (motors active) / 3.4 W (motors inactive)
Weight	Approx. 240 g
Dimensions (w x h x d)	50.0 x 60.0 x 89.7 mm
