Detailed Product Description
| Model: |
FCB-EH3400 |
Image Device: |
1/4-type Exmor CMOS Sensor |
| Effective Pixels: |
Approx. 1,450,000 |
Len: |
28x Optical Zoom |
| Weight: |
Approx. 240 G |
Dimensions (W X H X D):: |
50.0 X 60.0 X 89.7 (mm) |

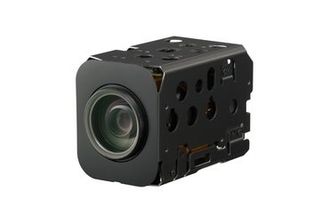

FCB-EH3400 High Speed Camera Module 28x Optical Zoom 1450000 Pixel
Description:
Hot on the heels of the introduction of the Sony FCB-EH6300 HD Block Camera, comes another dynamic model featuring 1280 x 720p HD resolution to Sony's line-up of HD Block Cameras, the Sony FCB-EH3400. Clocking in with 28x zoom, this cameras offers outstanding picture quality for applications requiring vibrant, high-resolution images and flexibility. The Sony FCB-EH3400 utilizes a 1/4-type Exmor CMOS image sensor, boasting approximately 1,430,000 million effective pixels for extraordinary picture quality.
SONY FCB-EH3400 Camera Specifications:
* Image Device: 1/4-type Exmor CMOS sensor
* Effective Pixels: Approx. 1,450,000
* Digital Zoom: 12x (336x with optical zoom)
* Horizontal Viewing Angle: 55.9 (wide end) to 2.1 (tele end)
* Sync System: Internal
* Electronic Shutter: 1/1 to 1/10,000 s, total 22 steps
* White Balance: Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual
* Gain: Auto/Manual/Max. Gain Limit (-3 to +28dB, +2dB step/total 16 steps)
* Wide Dynamic Range: Yes (30 fps)
* Privacy Zone Masking: Yes
* Focus System: Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR On
* Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement
* Exposure Control: Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV Compensation, Slow AE
SONY FCB-EH3400 Video Output Specifications:
* Lens Value: 28x Optical zoom, f=3.5 mm (wide) to 98.0 mm (tele), F1.35 to F3.7
* S/N Ratio: More than 50 dB
* Minimum Illumination: Less than 1.0 lx (F1.35, 50 IRE)
* Video Output: HD: Analog: Component (Y/Pb/Pr), Digital: (Y/CB/Cr) 4:2:2 via LDS; SD: VBS
* Signal System: HD: 720p/59.94, 720p/50, 720p/29.97, 720p/25; SD: NTSC, PAL
SONY FCBEH3400 Interfaces Specifications:
* Camera Control Interface: VISCA? protocol (TTL signal level)
SONY FCB-EH3400 General Specifications:
* Dimensions (W x H x D): 50.0 x 60.0 x 89.7 (mm)
* Weight: Approx. 240 g
* Operating Temperature: -5? C to 60? C
* Storage Temperature: -20? C to 60? C
* Power Consumption: 4.7 W (motors active)/3.4 W (motors inactive)
