Mini High Speed Samsung Camera Module SDM-100P 10x 44 Million Pixels 570TVL

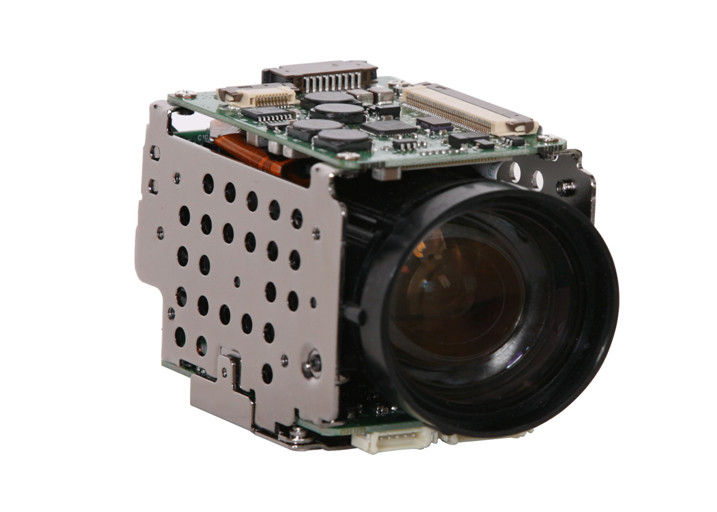

Large Image : Mini High Speed Samsung Camera Module SDM-100P 10x 44 Million Pixels 570TVL

Product Details:

Place of Origin:	Korea
Brand Name:	Samsung
Model Number:	SDM-100P

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	500pcs / month

Detailed Product Description

Lens:	10x Optical	Pixels:	44 Million Pixels
Ccd Sensor:	1/4 Inch, Interline Transfer CCD	Camera ID:	255 ID
Film Speed:	X128	Weight:	96G

Mini High Speed Samsung Camera Module SDM-100P 10x 44 Million Pixels 570TVL

Features:

* 10*10X, Color to B/W
* 1/4" Interline Transfer CCD
* 44 million pixels
* 500 line/0.7Lux(color)
* 570 line/0.02Lux(B/W)
* Samsung SSNR noise reduction chip
* exercise monitoring function
* 10X optical zoom/10X digital
* f=3.8-38mm

Specification:

Model		SDM-100
Power supply		DC 9V to 12V (Recommend: 9V or 12V )
Power		Static:3.15W Sports :4.5W
DSP		W3
CCD	Size	1/4 inch, Interline Transfer CCD
	Total Pixels	795(H) x 596(V)
	Effective Pixels	752(H) x 582(V)
Optical	Optical zoom	10X, f=3.8 to 38mm(F 1.8 to 3.2)
	The minimum focus distance	1000mm
	Digital Zoom	Continuous 10x
	Maximum range observed	Level: 51.2°(nearly) to 5.58°(far) vertical : 39.3°(nearly) to 4.27°(far)
Synchronization	Scanning system	2:1 interlaced
	Synchronization	Internal Synchronization /Outside synchronization
	frequency	Level: 15.625 KHz / Vertical : 50.00 Hz
Function	Camera ID	255 ID
	Resolution	Color :500 TVL Black-and-white:570 TVL
	video output	CVBS : 1.0Vp-p/75Ω
	SNR (S/N)	50 dB (AGC Off,Weight ON)
	minimum illumination	Color : 0.7 Lux/F1.8 (50 IRE) Black-and-white : 0.02Lux/F1.8 (50 IRE)
	BLC	High/ medium / low / OFF
	ICR	Color to Black-and-white (ICR )
	AGC	Low / high / OFF
	WB	ATW ( Indoor(3,000˚K~6,500˚K), Outdoor (1,800˚K~10,500˚K))/AWB /Manual
	Electronic Shutter	Auto /Manual (X512 ~1/50sec ~ 1/120,000sec)
	Film speed	X128
	O.S.D	Chinese or English
	Motion Detection	On/Off (Outward output alarm signal)
	External control	RS-485 or RS-232C CMOS Level (2400, 4800, 9600, 19200, 38400, and 57600bps Selectable)
	SSNR	Low/medium/high is optional
	Focus	Automatic/manual/one-time automatic focusing
	ZOOM SPEED	1.75S :Nearly burnt to telephoto
	Camera initialization	Built in
	User the default	8 group
	Privacy shelter	Total 32 area:8group,Each group with display four editable area)
	Rollover	right and left /Up and down
	Freeze	On/Off
	Iris control	Manual/automatic
Size		38.9(W)×43.7(H)×61.67(D)mm
working environment		-10℃ to +50℃ / 20% to 80% RH
Stored Environment		-20℃ to +60℃ / 20% to 95% RH
Weight		96g
