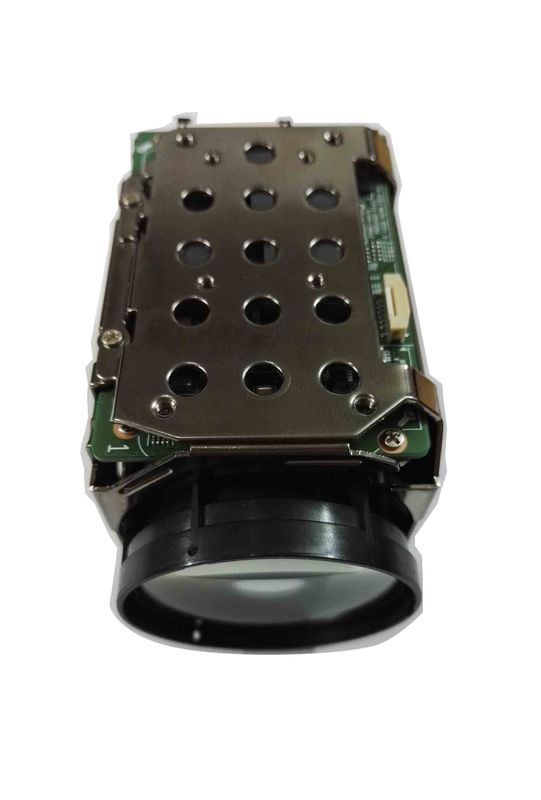

SCM-6321 HD Camera Module MegaPixel CCTV Security Camera Module

Large Image : SCM-6321 HD Camera Module MegaPixel CCTV Security Camera Module

Product Details:

Brand Name:	Samsung
Model Number:	SCM-6321

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	100pcs/month

Detailed Product Description

Brand:	Samsung	Model:	SCM-6321
Lens:	Optical Zoom	Sensor:	1/2.8" Progressive Scan CMOS
Effective Pixels:	2 Million Pixels	Weight:	250G

Samsung SCM-6321 HD Camera Module MegaPixel CCTV Security Camera Module

Samsung SCM-6321 FULLHD Color Camera Function:

* 32X HD 2 Million pixel integration movement (Auto color to black-and-white)
* 1/2.8" Progressive Scan CMOS
* 32X optical zoom f=4.44 to 142.6mm (F1.6~F2.9)) and 16X digital zoom
* FULL HD 1920 x 1080 (30fps); HD 1280 x 720 HD (60fps)
* Color: 0.3Lux/F1.6 (50 IRE) , black and white: 0.03Lux/F1.6 (50 IRE)
* 3D+2D advanced noise reduction technology (SSNR III)
* Multi-language OSD menu, DIS (digital image stabilization)

Samsung SCM-6321 FULLHD Color Camera Specification :

Model	SCM-6321
Sensor	1/2.8" Progressive scan CMOS
Total Pixels	1952(H) x 1236(V), 2 Million pixels
Effective Pixels	1944(H) x 1244(V), 2 Million pixels
Scanning system	Progressive scan
Minimum illumination	Color: 0.3 Lux @ F1.6 (50IRE, 30fp) Black and White: 0.03Lux @ F1.6 (50IRE,30fp)
SNR	More than 50dB
Video output	Digital output Y/Cb/Cr 4:2:2 via an LVDS(30fp) HD analog output Y/Pb/Pr(60fp) Monitor the CVBS
The focal length (zoom ratio)	32X optical , 4.44 ~ 142.6 mm
Angle of view	H :62.8˚(Wide) ~2.23˚(Tele) / V :36.8˚(Wide) ~ 1.3˚(Tele)
Max. aperture ratio	1:1.6 (Wide) ~ 4.41 (Tele)
MOD	Wide 1.5m ,Tele 1.5m
Focus Control	Auto/Manual/At Once
Zoom movement speed	2.9 seconds (fast mode)
Built-in language	Korea, Japan, UK, France, Germany, Spain, Italy, Russia, Turkey, Portugal
The camera name	More than 11 , ON/OFF (display 20 characters)
Day and night conversion	Auto (ICR)/Color/black and white
Backlight compensation	OFF/Backlight compensation/Strong inhibition/WDR
Dark space compensation	SSDR - level is adjustable
Digital noise reduction	SSNR Ⅲ (OFF/Low/Medium/High)
Digital image stabilization	OFF/ON
Dynamic detection	ON/OFF (editable area)
Intelligent video analysis	Virtual Line, Enter/Exit, Appear/Disappear, Tampering
Privacy shelter	ON/OFF(12 area)
Iso (frame accumulation)	Auto/OFF (optional limit ~ 60 x)
Gain control	High/Medium/Low/Manual
White balance	ATW/indoor/outdoor/AWC/Manual/Mercury/Sodium / low/manual
The electronic shutter speed	Esc/A.F LK/manual
Digital zoom	On/Off(1 ~ 16 x x)
Flip/mirror	OFF/H - Rev/V - Rev/HV - Rev
communication	RS-232C TTL
Working temperature/humidity	-10°C ~ +60°C (+14°F ~ +140°F) / Less than 90% RH
Input voltage/current	12VDC±10%
Power consumption	Max. 5W
Size	48.6 x 53.8 x 91.43mm
Weight	250G
